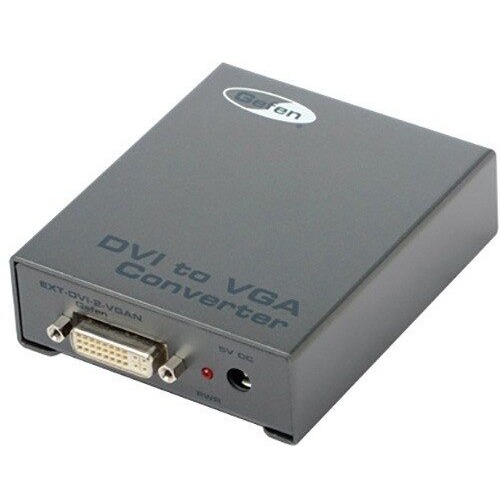

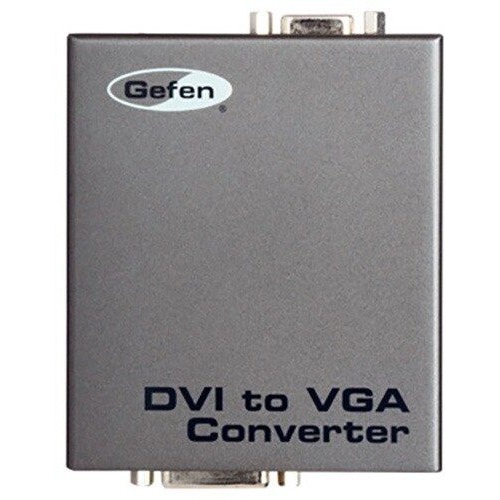

The Gefen EXT-DVI-2-VGAN DVI to VGA Converter (EXT-DVI-2-VGAN) from DJDeals.com is a small box solution that converts DVI-D to VGA Analog PC/RGB, enabling digital sources to connect with any monitor, projector or TV using VGA. Output resolutions up to 1920×1200 are supported. The Gefen DVI to VGA Converter features EDID management that allows rapid integration of the source and monitor.
Features
- Enables DVI source to be displayed on VGA monitor or projector.
- Supports resolutions up to 1920 x 1200.
- EDID Management for rapid integration of source and display.
- Built-in EDID switch allows choice between local EDID and external EDID.
Specifications
- Maximum Pixel Clock: 165MHz (DVI)
- Analog Video Bandwidth: 350MHz (VGA)
- Input Video Signal: 1.2V p-p
- Input DDC Signal: 5V p-p (TTL)

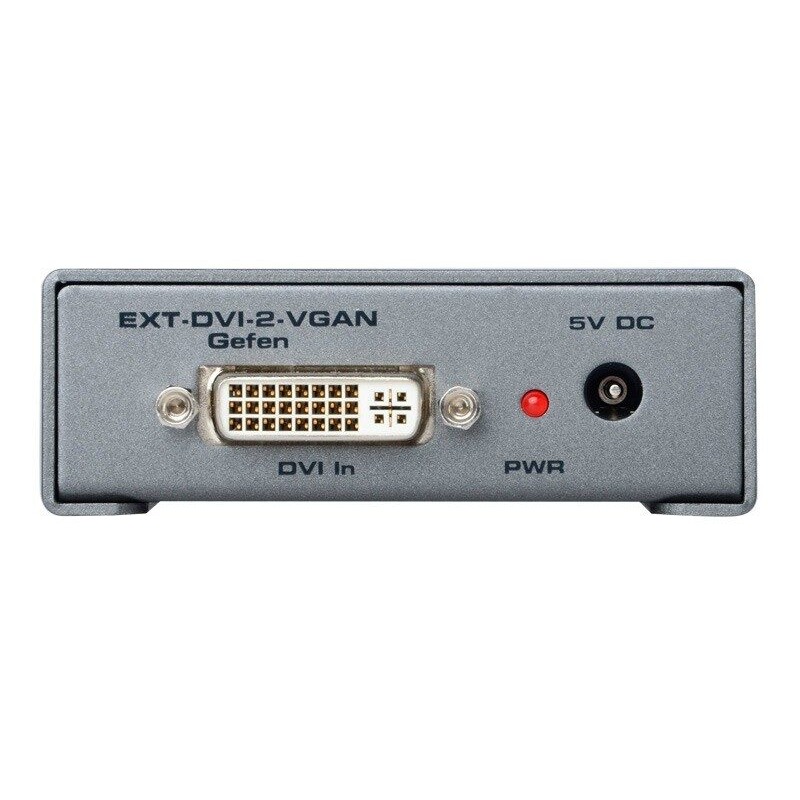

- Video Input Connector: (1) DVI-I 29-pin, female digital only
- Video Output Connector: (1) VGA HD-15, female
- Power Supply: 5V DC
- Power Consumption: 5W (max.)
- Dimensions: 3″ W x 3.8″ D x 1″ H
- Shipping Weight: 2 lbs.
Item Includes
Gefen EXT-DVI-2-VGAN DVI to VGA Converter Features:
- Gefen EXT-DVI-2-HDSDIPRO DVI to HD-SDI Converter Scaler
- Power Supply
- 2 x 6 ft DVI Cables
- 6 ft DB-9 Cable
- RMT-8HDS-IR Remote Control
- User’s Manual
- One-Year Warranty Against Defects in Material & Workmanship
