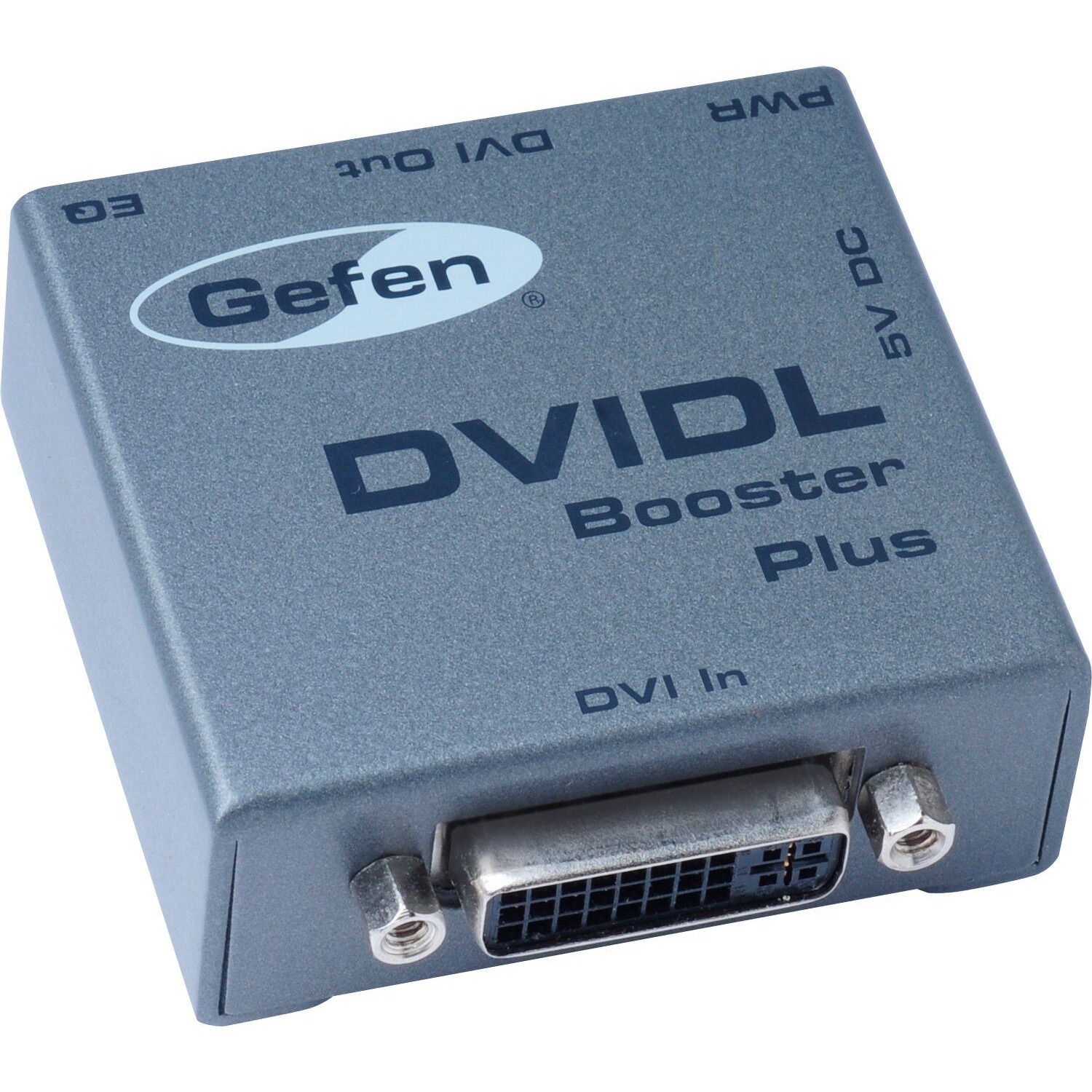

The Gefen EXT-DVI-141DLBP DVI-DL Booster Plus can extend a resolution of 2560 x 1600 up to 200 feet over standard copper dual-link DVI cables.
In addition to far exceeding the typical 15 foot limitation imposed by copper cables, the Booster ensures that the video signal is free of distracting artifacts such as sparkles, static and lines. DDC signals are also strengthened to ensure that the communication channel between the display and the DVI source is robust and uninterrupted. The DVI DL Booster Plus is an excellent solution for those looking for a cost-effective way to extend dual-link DVI video.

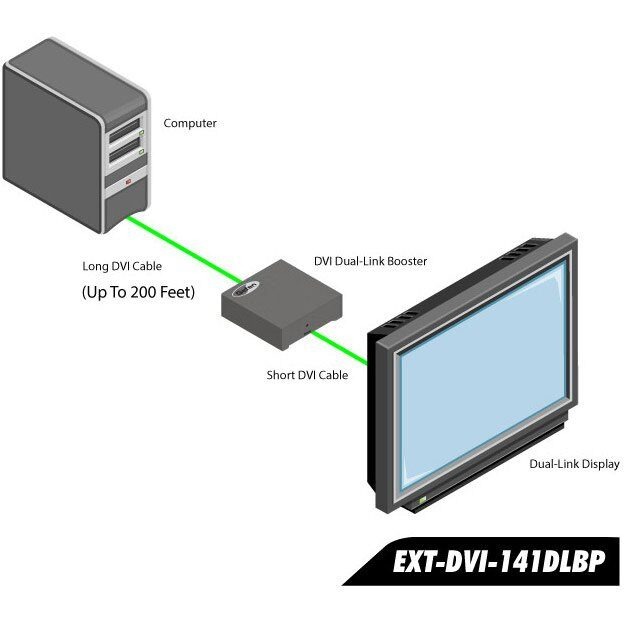

The Gefen EXT-DVI-141DLBP DVI-DL Booster Plus can also be daisy chained to create extensions longer than 200 feet, and can also be used to link two shorter cables together to create a longer extension.
Gefen EXT-DVI-141DLBP DVI-DL Booster Plus Features:
- Boosts and equalizes digital video (TMDS) signal to ensure bright, sharp, and clear video
- Boosts DDC levels to ensure stable performance
- Extends Dual-link desktop resolutions up to 3840 x 2400
- Extends Dual-link DVI displays up to 200 feet (60 mete
Gefen EXT-DVI-141DLBP DVI-DL Booster Plus Specifications:
- Dimensions: 17.1" W x 4.2" D x 1.75" H
- Input DDC Signal: 5V p-p (TTL)
- Input Video Signal: 1.2V p-p
- Maximum Pixel Clock: 165MHz
- Power Consumption: 5W (max.)
- Power Supply: 5V DC, Locking
- Rack Size: 1U (rack ears included)
