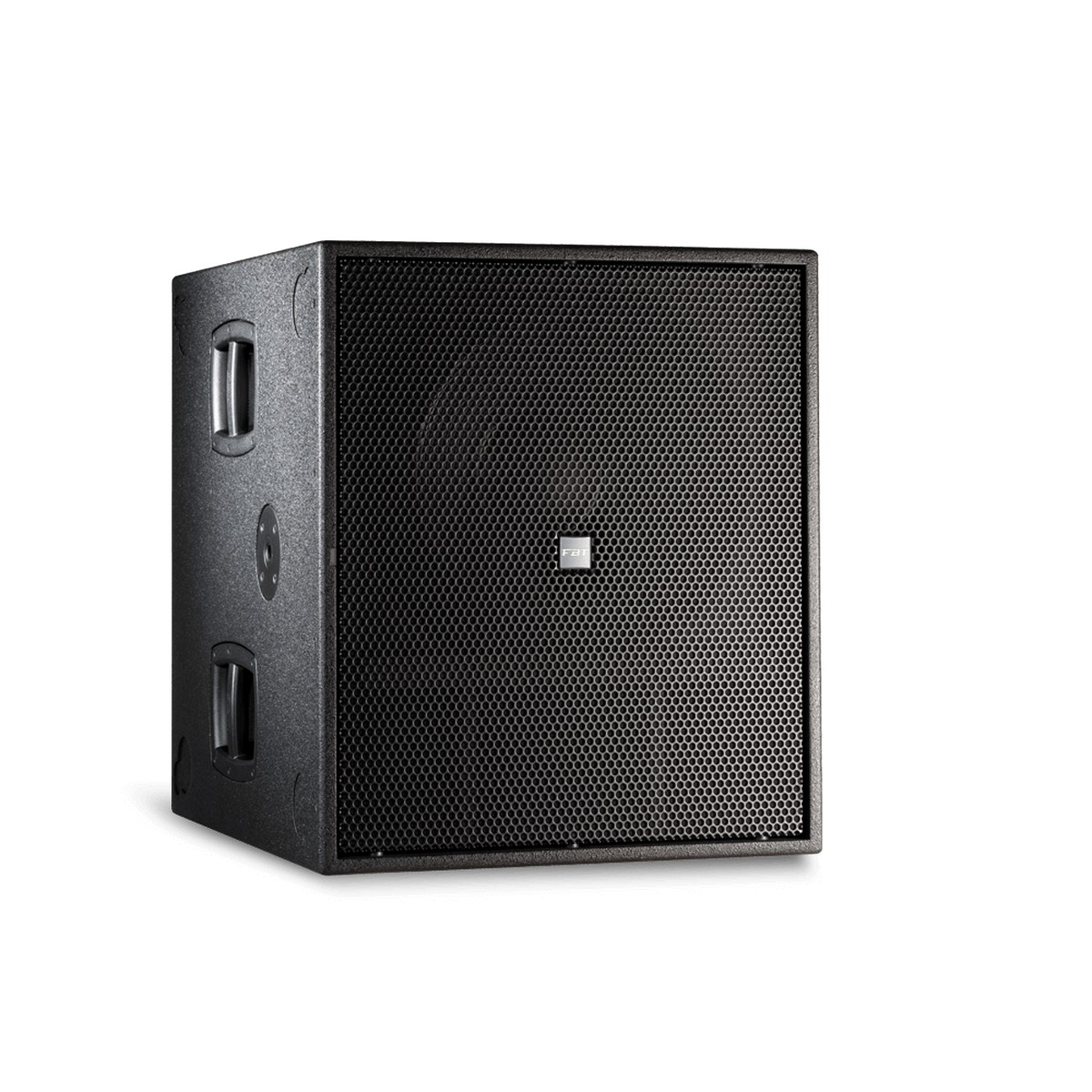

The FBT Horizon VHA 118S 1000W 18″ Passive Bass Reflex Array Subwoofer from DJDeals.com is a passive 18″ bass reflex subwoofer from FBT’s Horizon series, designed to deliver powerful and precise low-frequency extension when paired with VHA 406 passive line array modules. Intended for professional large-scale applications both indoors and outdoors, it is ideal for tours, festivals, arenas, and fixed installations that demand high sound impact and consistent performance.
At its core is an 18″ high-excursion woofer with a 4″ voice coil, capable of delivering extended frequency response down to 30Hz. Designed for use with external amplifiers and DSP processors, the VHA 118S supports both standard and cardioid configurations. The cabinet is built from rugged 18mm birch plywood with a durable black scratch-resistant coating, a powder-coated steel grille with internal acoustic fabric, and two Neutrik NL4M connectors on the rear panel.
FBT Horizon VHA 118S 1000W 18″ Passive Bass Reflex Array Subwoofer Features:
- Configuration. Bass reflex enclosure providing extended, powerful low-frequency reinforcement for large-scale professional systems.
- Woofer. 18″ high-excursion transducer with a 4″ voice coil, delivering deep bass extension down to 30Hz.
- Power Handling. 1000W long-term / 5000W short-term; recommended amplifier 2500W RMS.
- SPL. 137dB continuous / 143dB peak (half space) — exceptional output for large venues and outdoor events.
- Cabinet. 18mm Baltic birch plywood, durable black scratch-resistant finish, powder-coated steel grille with internal acoustic fabric.
- Connectivity. Two Neutrik NL4M Speakon connectors (In & Link) for clean signal flow and daisy-chaining.
- Dimensions. 611 x 711 x 720 mm / 24 x 28 x 28.34 in — purpose-built for stacking under VHA 406 arrays.
FBT Horizon VHA 118S 1000W 18″ Passive Bass Reflex Array Subwoofer Specifications:
- FBT Code: 45261
- Configuration: Bass reflex
- Low Frequency Woofer: 18″ – 4″ voice coil
- Recommended Amplifier: 2500W RMS
- Long Term Power: 1000W
- Short Term Power: 5000W
- Nominal Impedance: 4 Ohm
- Frequency Response: 30Hz (preset dependent)
- Maximum SPL (cont/peak): 137 / 143dB half space
- Dispersion: Omnidirectional
- Input Connector: 2 x Neutrik NL4M Speakon (In & Link)
- Net Dimensions (W x H x D): 611 x 711 x 720 mm / 24 x 28 x 28.34 in
- Net Weight: 62.7 kg / 138.34 lb
- Transport Dimensions (W x H x D): 900 x 900 x 710 mm / 31.9 x 35.4 x 27.9 in
- Transport Weight: 72.7 kg / 160.4 lb
