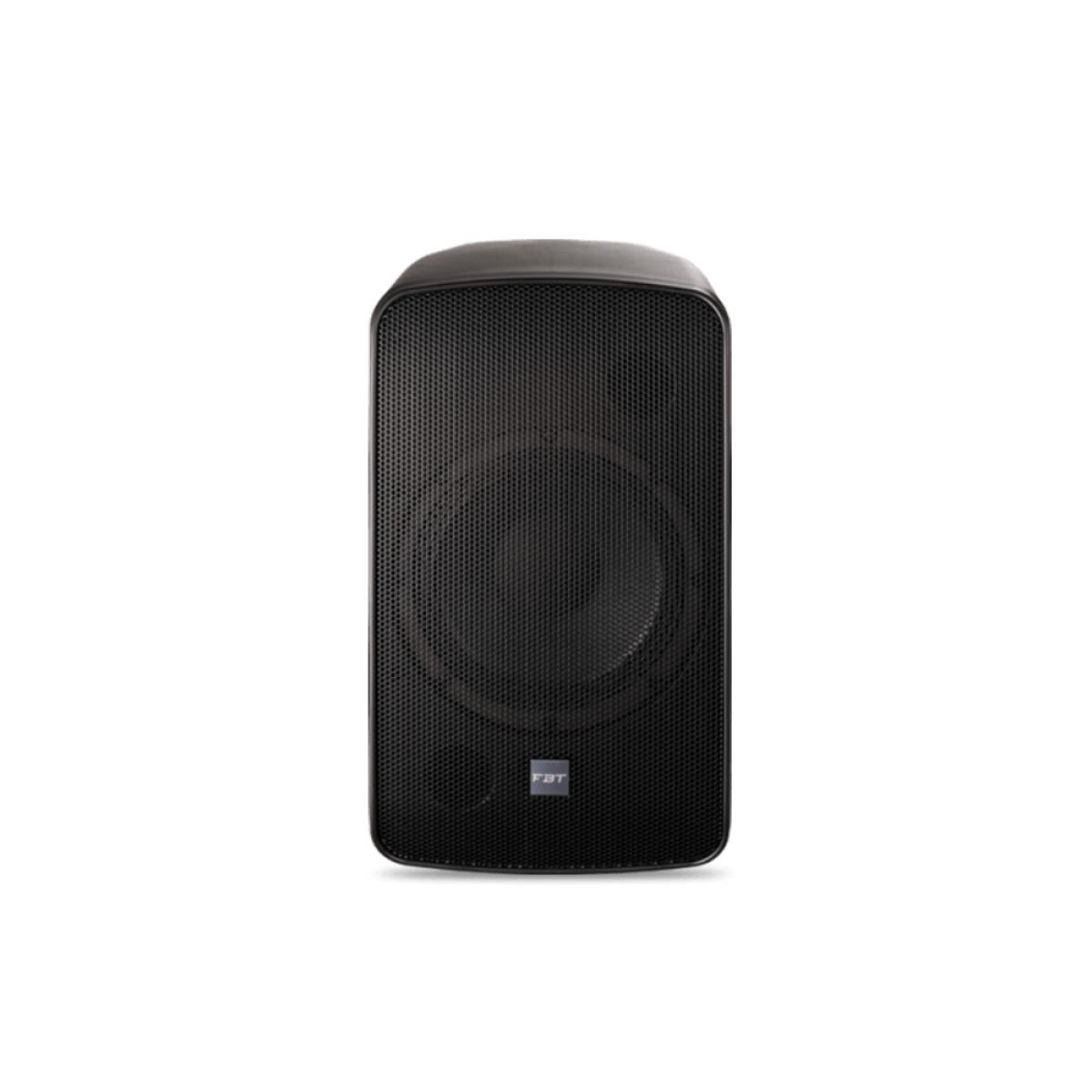

The FBT CANTO 5C 60W 5″ Passive 2-Way Coaxial Loudspeaker (Black) (CANTO 5C BLK) is a 2-way coaxial passive loudspeaker housed in a gas-injected polypropylene enclosure finished in black. Delivering 114 dB continuous and 117 dB peak SPL from a 5″ coaxial driver with 90° conical dispersion, it is purpose-built for fixed installations in commercial, hospitality, and corporate environments where refined aesthetics and full-range intelligibility are both required.
Features:
- 5″ Coaxial 2-Way Driver. A 5″ woofer with 1.5″ voice coil and a 1″ compression driver with 1″ coil share a common axis, producing time-aligned, coherent full-range output from 80 Hz to 20 kHz — suitable for both speech and music reinforcement.
- 117 dB Peak SPL at 3.6 kg. The CANTO 5C delivers high-output performance from a compact, lightweight form factor, making it effective in larger commercial spaces where small-format speakers typically fall short.
- 90° Conical Dispersion. Symmetrical horizontal-and-vertical coverage pattern provides even audience coverage across rectangular rooms, corridors, and open-plan commercial spaces without directional hotspots.
- Gas-Injected Polypropylene Enclosure. High-rigidity gas-injected polypropylene in black finish resists resonance while maintaining a sleek, low-profile appearance compatible with upscale hospitality and corporate interiors.
- WM-45 Wall Bracket Compatible. Two rear-mounted fixing points accept the FBT WM-45 directional bracket (sold separately), enabling both horizontal and vertical angle adjustment for discreet wall installation with minimal visual impact.
- 4-Pin Euroblock Input. Standardized Euroblock connectivity simplifies low-impedance wiring in multi-speaker installation runs, compatible with all standard commercial audio cabling practices.
- 16 Ohm Nominal Impedance. High impedance rating allows more speakers to be wired in parallel per amplifier channel compared to 8 ohm designs, reducing infrastructure cost in large multi-zone installations.
- 3 kHz Crossover Frequency. Smooth transition between woofer and tweeter at 3 kHz maintains voice intelligibility and musical coherence across all content types.
Specifications:
- Configuration. 2-way coaxial passive
- Low Frequency Woofer. 5″ / 1.5″ voice coil
- High Frequency Driver. 1″ / 1″ voice coil
- Recommended Amplifier Power. 120W RMS
- Long-Term Power Handling. 60W
- Short-Term Power Handling. 240W
- Nominal Impedance. 16 ohm
- Frequency Response. 80 Hz – 20 kHz (–6 dB)
- Sensitivity. 93 dB (@1W/1m)
- Maximum SPL. 114 dB continuous / 117 dB peak
- Dispersion. 90° conical
- Crossover Frequency. 3 kHz
- Recommended HP Filter. 70 Hz, 24 dB/oct
- Input Connector. 4-pin Euroblock
- Finish. Black
- Enclosure Material. Gas-injected polypropylene
- Dimensions (W x H x D). 160 x 276 x 170 mm / 6.3 x 10.8 x 6.7 in
- Weight. 3.6 kg / 8 lb
- FBT Code. 45507
