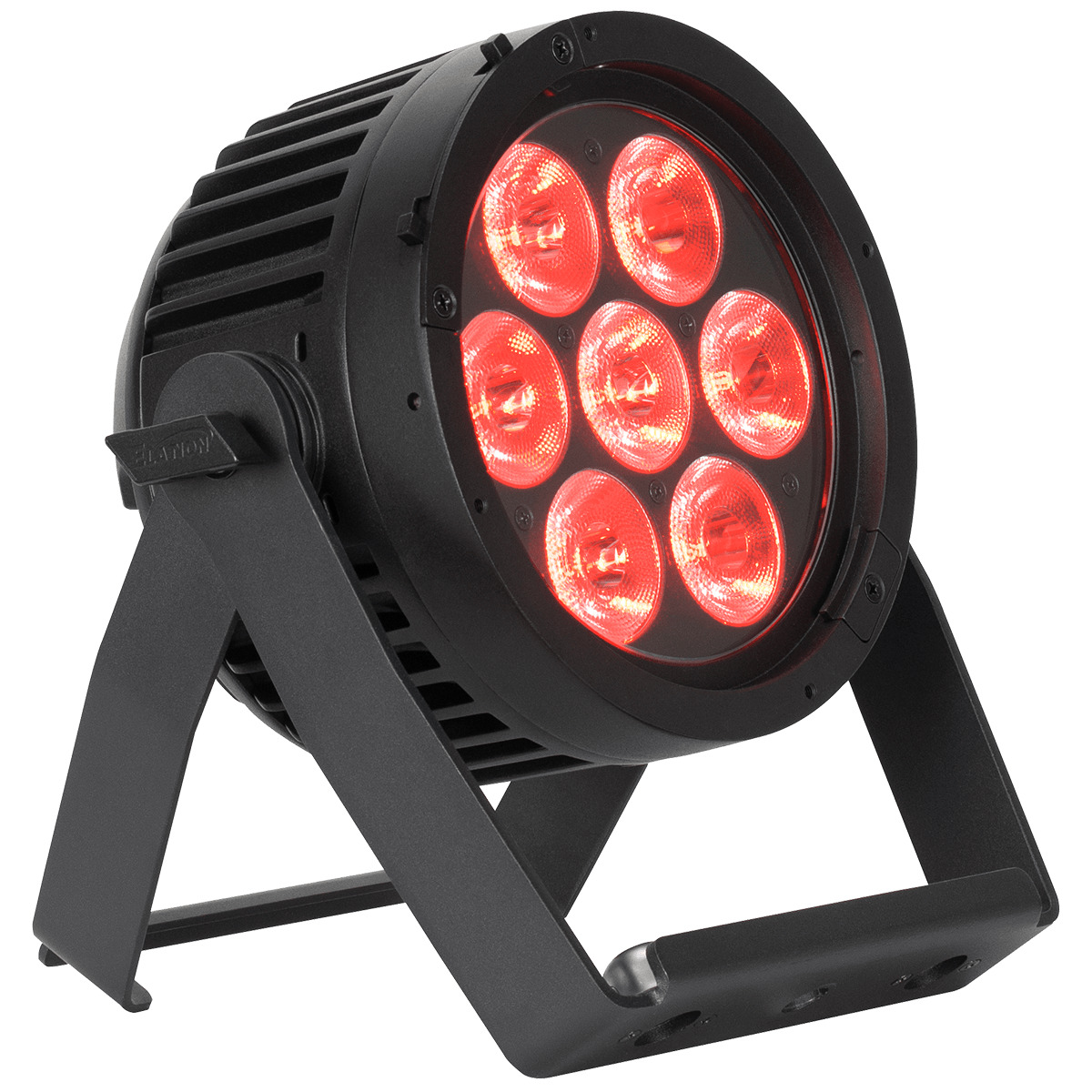

The Elation Professional SIX+ PAR S OPS Black 4-Wire (SIX534) from DJDeals.com is the black-housing 4-wire Outdoor Permanent Specification (OPS) variant of the SIX+ PAR S, featuring CX Marine Grade exterior coating and hard-wired 4-wire bare wire IP-rated cables with dedicated Power In, Power Out, DMX In, and DMX Out. Delivering 3,200 lumens with CRI 87 from (7) 20W RGBLA+UV LEDs in a compact black housing for permanent outdoor installations requiring independent power and data routing.
Elation Professional SIX+ PAR S OPS Black 4-Wire Features:
- CX Marine Grade Coating (Black). Specialized black exterior coating for superior corrosion resistance in coastal and outdoor permanent installations.
- 4-Wire Hard-Wired Cables. Permanently attached 3-meter IP-rated cables with independent Power In, Power Out, DMX In, and DMX Out for maximum daisy-chain flexibility.
- (7) 20W RGBLA+UV LED Array. Six-color array delivers 3,200 lumens with CRI 87 for quality color rendering in permanent compact installations.
- IP65 Black Housing. Standard black IP65 housing for discreet integration in entertainment and architectural environments.
- Independent Power & Data. Separate Power Out and DMX Out enable flexible distribution in large installation arrays.
- Remote LED Refresh Rate. Adjustable LED refresh frequency for broadcast and camera applications.
- CMY Emulation & Gel Presets. CMY emulation and calibrated gel preset library.
- Variable 16-bit Dimming. Smooth precision 16-bit dimming.
- Advanced DMX Protection. Built-in DMX filtering for reliable signal performance.
Elation Professional SIX+ PAR S OPS Black 4-Wire Specifications:
- LED Source: (7) x 20W RGBLA+UV LEDs
- Total Lumen Output: 3,200 lm
- CRI: 87
- Color System: RGBLA+UV with CMY Emulation
- Housing Color: Black
- Exterior Coating: CX Marine Grade
- Cable Type: 4-Wire (Power In, Power Out, DMX In, DMX Out) — 3m hard-wired bare wire
- Dimming: Variable 16-bit, selectable modes & curves
- DMX Channel Modes: 9 modes (1ch to 20ch) + 4 SixPar Emulation
- Power Consumption: 100W Max
- Input Voltage: AC 100-240V, 50/60Hz
- Weight: 9.5 lbs (4.3 kg)
- IP Rating: IP65
- LED Life: 30,000 hours (average)
