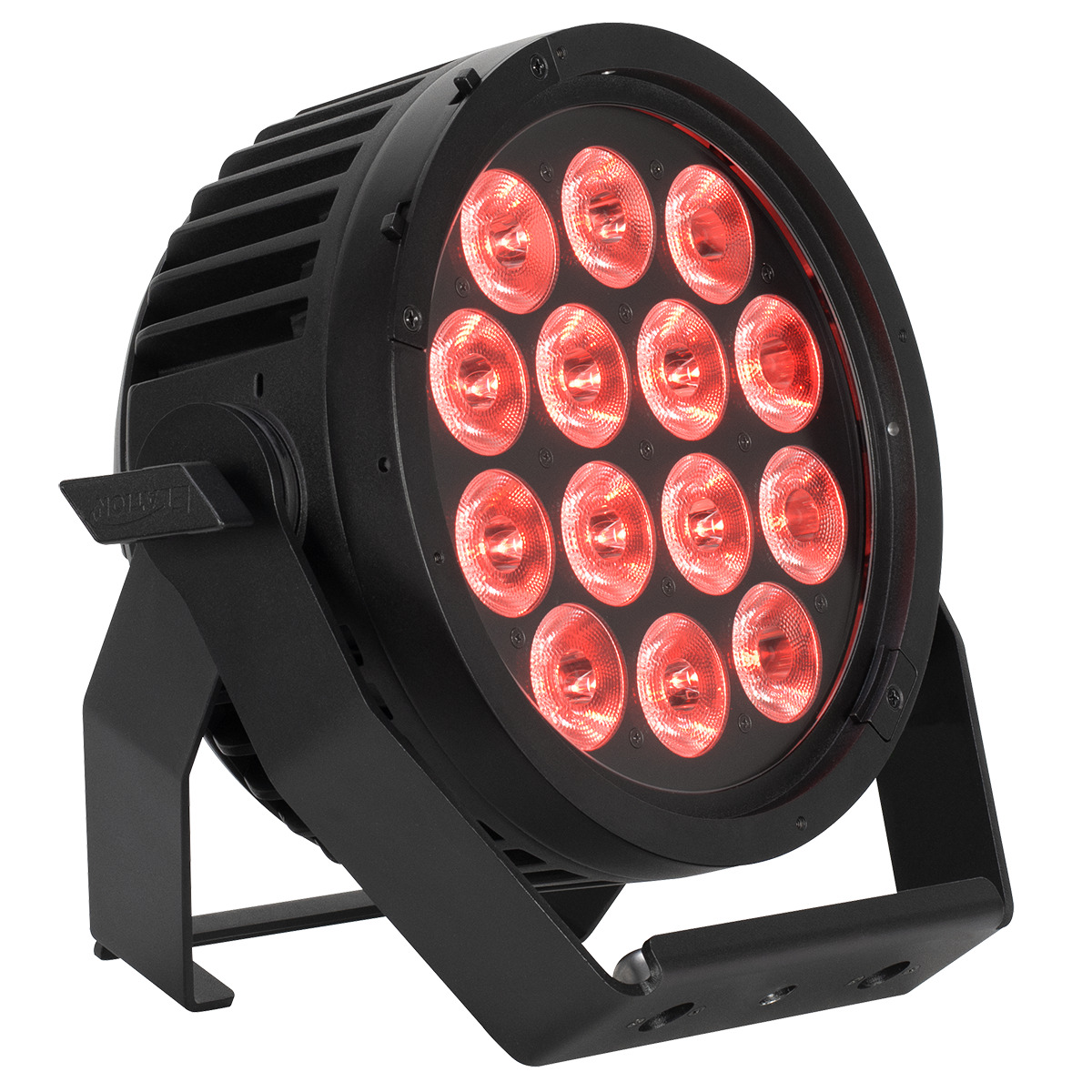

The Elation Professional SIX+ PAR L OPS Black 4-Wire (SIX523) from DJDeals.com is the black-housing 4-wire Outdoor Permanent Specification (OPS) variant of the SIX+ PAR L, featuring CX Marine Grade exterior coating and hard-wired 4-wire bare wire IP-rated cables with dedicated Power In, Power Out, DMX In, and DMX Out. Delivering 7,000+ lumens with CRI 87 from (14) 20W RGBLA+UV LEDs for permanent high-output marine and outdoor installations.
Elation Professional SIX+ PAR L OPS Black 4-Wire Features:
- CX Marine Grade Coating (Black). Specialized black exterior coating for superior corrosion resistance in coastal, marine, and outdoor installations.
- 4-Wire Hard-Wired Cables. Permanently attached 3-meter IP-rated cables with independent Power In, Power Out, DMX In, and DMX Out for maximum installation flexibility.
- (14) 20W RGBLA+UV LED Array. High-output six-color array delivers 7,000+ lumens with CRI 87 for large-scale permanent installation applications.
- IP65 Black Housing. Standard black finish with full IP65 weather protection for entertainment and architectural rigging environments.
- Independent Power & Data. Separate Power Out and DMX Out enable flexible power and signal distribution in large arrays.
- Remote LED Refresh Rate. Adjustable LED refresh for flicker-free camera and broadcast performance.
- CMY Emulation & Gel Presets. CMY emulation and gel preset library for intuitive programming.
- Variable 16-bit Dimming. Smooth precision 16-bit dimming.
- Advanced DMX Protection. Built-in DMX filtering for reliable signal performance in daisy-chain arrays.
Elation Professional SIX+ PAR L OPS Black 4-Wire Specifications:
- LED Source: (14) x 20W RGBLA+UV LEDs
- Total Lumen Output: 7,000+ lm
- CRI: 87
- Color System: RGBLA+UV with CMY Emulation
- Housing Color: Black
- Exterior Coating: CX Marine Grade
- Cable Type: 4-Wire (Power In, Power Out, DMX In, DMX Out) — 3m hard-wired bare wire
- Dimming: Variable 16-bit, selectable modes & curves
- DMX Channel Modes: 9 modes (1ch to 20ch) + 4 SixPar Emulation
- Power Consumption: 165W Max
- Input Voltage: AC 100-240V, 50/60Hz
- Weight: 15.7 lbs (7.1 kg)
- IP Rating: IP65
- LED Life: 30,000 hours (average)
