The Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light is a state-of-the-art LED batten wash luminaire designed to provide exceptional output and versatility for a wide range of lighting applications. Featuring 12 x 20W RGBAL+UV LEDs, this fixture delivers an impressive total output of 9,325 lumens with a high CRI of 92.3, ensuring beautiful, high-quality color reproduction. The Seven+ Bar L’s advanced LED configuration includes red, green, blue, amber, lime, and a 395nm UV, which together provide a broad color spectrum and allow for rich, vibrant washes and dynamic lighting effects. The fixture’s exceptional color quality and powerful light output make it ideal for everything from concerts and live events to theater productions and architectural installations.
Designed with precision in mind, the Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light utilizes a sophisticated optical system that ensures even light distribution, eliminating color fringing and providing smooth color mixing for seamless lighting transitions. The inclusion of extra-large 50mm lenses enhances the fixture’s capability for direct view applications, producing a crisp, sharp output. The 17° beam angle and 33° field angle offer flexibility for both concentrated beams and broader washes, while the included frost filter provides additional flexibility, expanding the beam to a wider angle of 32° for softer light coverage.
Beyond its stunning color mixing, the Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light offers full pixel control, giving designers the ability to create intricate effects with precise control over each individual LED. This feature opens up a wide range of creative possibilities, from pixel-mapped effects to dynamic visual displays. The fixture also includes 12 internal programs with speed and fade control, along with 64 unique 7-color macros, ensuring that designers can easily implement custom lighting effects. With variable color temperature adjustment from 2,400K to 8,500K, the Six+ Bar L offers further versatility, providing the option to create everything from warm, inviting washes to cool, daylight-like illumination. Additionally, the virtual gel swatch book and CMY emulation make it easy to replicate traditional lighting gels, offering even more creative flexibility.
Built for durability and flexibility, the Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light features an IP65 rating, making it suitable for both indoor and outdoor use, even in harsh weather conditions. The rugged, powder-coated die-cast aluminum housing ensures long-lasting performance, while the fanless convection cooling system guarantees silent operation – perfect for noise-sensitive environments such as TV studios or film sets. The fixture is also designed for easy integration into complex lighting setups, supporting Art-Net, sACN, and KlingNet protocols, as well as DMX and RDM control for seamless communication with other equipment. The 4-button control panel and 180° reversible OLED menu display make configuration and operation simple, while the fixture’s L-track mounting system and end-to-end interconnection system provide ultimate flexibility in positioning and mounting.
With its versatile design, exceptional output, and rich color mixing capabilities, the Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light is a powerful addition to any lighting designer’s toolkit. Whether used for creating breathtaking stage effects, highlighting architectural features, or enhancing ambient lighting, this fixture delivers outstanding performance and creative possibilities.
Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light Features:
- 12 x 20W RGBAL+UV LEDs for rich color mixing and vibrant lighting effects
- 9,325 total lumens output with a high CRI of 92.3 for superior color rendering
- Extra-large 50mm lenses for crisp, even light distribution and direct view applications
- 17° beam angle and 33° field angle for flexible lighting coverage, with an optional frost filter for wider coverage (32°)
- Full pixel control for creating intricate, dynamic lighting effects
- 12 internal programs with speed and fade control, plus 64 unique 7-color macros for fast effects creation
- Variable color temperature adjustment from 2,400K to 8,500K for a wide range of color options
- CMY emulation and virtual gel swatch book for traditional gel color reproduction
- Selectable dimming curve modes for smooth light transitions
- Fanless convection cooling for silent operation, ideal for noise-sensitive environments
- Supports Art-Net, sACN, KlingNet, DMX, and RDM protocols for easy integration into professional setups
- Rugged, IP65-rated, powder-coated die-cast aluminum housing for outdoor durability
- Integrated L-track for flexible mounting, with end-to-end interconnection system for multiple unit setups
- Size: 39.4 x 6.9 x 8.11 inches, weight: 24 lbs
- Max power consumption: 210W, AC 100-240V 50/60Hz
- Includes safety cable, locking power cable, frost filter, and glare shield
- CE, cETLus, IP65 approvals for safety and reliability
Elation Professional SIX+ BAR L RGBLA+UV LED Linear LED Wash Light Specifications:
Light Source
- (12) x 20W RGBLA+ UV LEDs
- 30,000 Hour Average LED Life
Photometric Data
- Total Lumen Output: 9,325 (Integrating Sphere)
- 7,554 (Goniometer)
- CRI: 92.3
- TLCI: 83
- No Lens:
- Beam Angle: 20°
- Field Angle: 36°
- Included Frost:
- Beam Angle: 32°
- Field Angle: 60°
Effects
- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
Color
- RGBLA+ UV Color Array
- CMY Emulation
- Dim-to-Warm Fade
- Variable CCT 2400K – 8500K
- Virtual Gel Swatch Book
Control/Connections
- 15 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 34ch, 58ch, 82ch, 154ch, 72ch)
- 5 Six Bar 1000 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 75ch)
- 4 Button Control Panel, LED Display
- Aria x2 Wireless Device Management
- RDM (Remote Device Management)

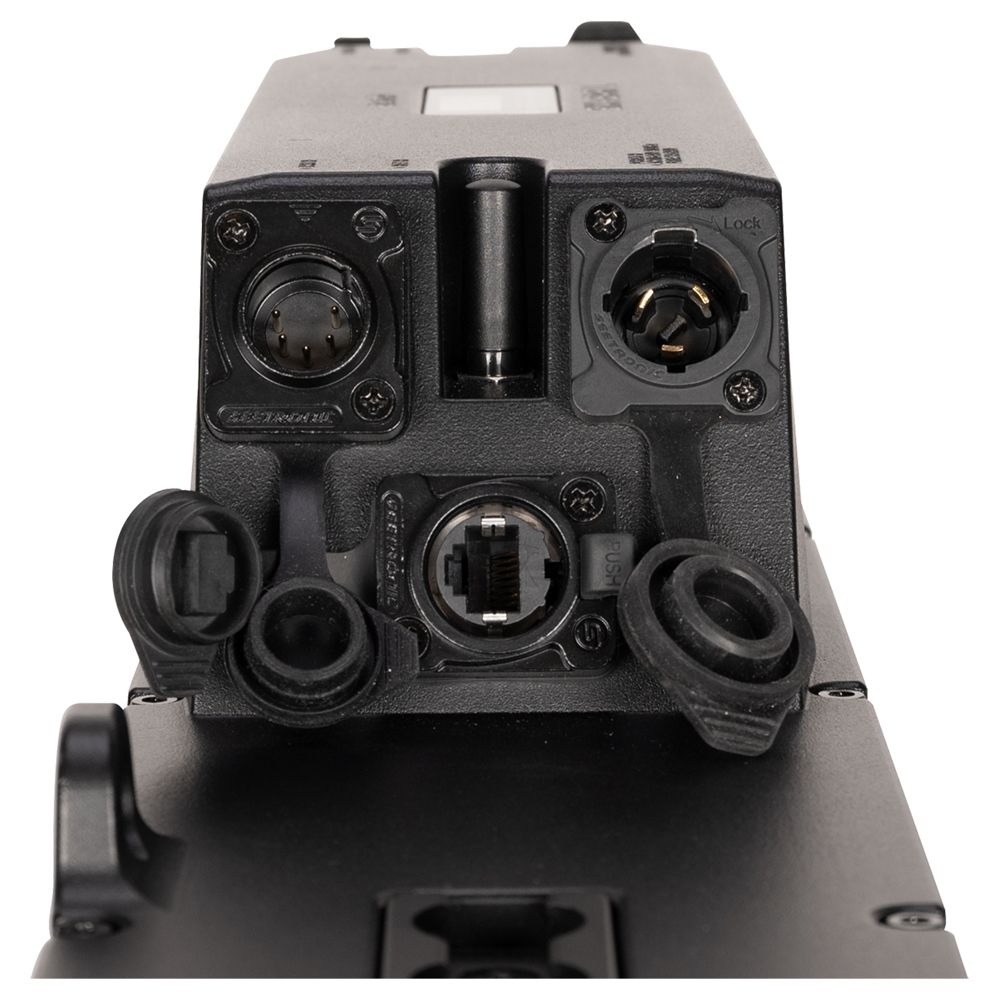

- IP65 Spin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
- IP65 Locking Power Cable In/Out
Size/Weight
- Length: 39.4 inches
- Width: 6.9 inches
- Vertical Height: 8.11 inches
- Weight: 24 lbs
Electrical/Thermal
- AC 100-240V – 50/60Hz
- 210W Max Power Consumption
- Power Thru Capacity: @110V: 7 Units; @240V: 16 Units
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 716.1
Included Items
- Safety Cable
- IP65 Locking Power Cable
- Frost Filter
- Glare Shield
- Fixture Interconnect Splice
Optional Items
- BAR L NSP Lens (BLL021)
- BAR L WFL Lens (BLL061)
- BAR L XFL Lens (BLL101)
- BAR L L140 Lens (BLL141)
- BAR L L160 Lens (BLL161)
- # 8050000053 – Omega Bracket (Qty.2)
- Fixture Interconnect Splice Package (FISP06)
- L-Track to M10 Adapter, 70mm (LTR001)
- L-Track to M10 Adapter, 44.5mm (LTR008)
- L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
- L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
- Interconnect Clamp Adapter (FICA01)
Approvals/Ratings
- CE
- cETLus
- IP65
- FCC
- UKCA
