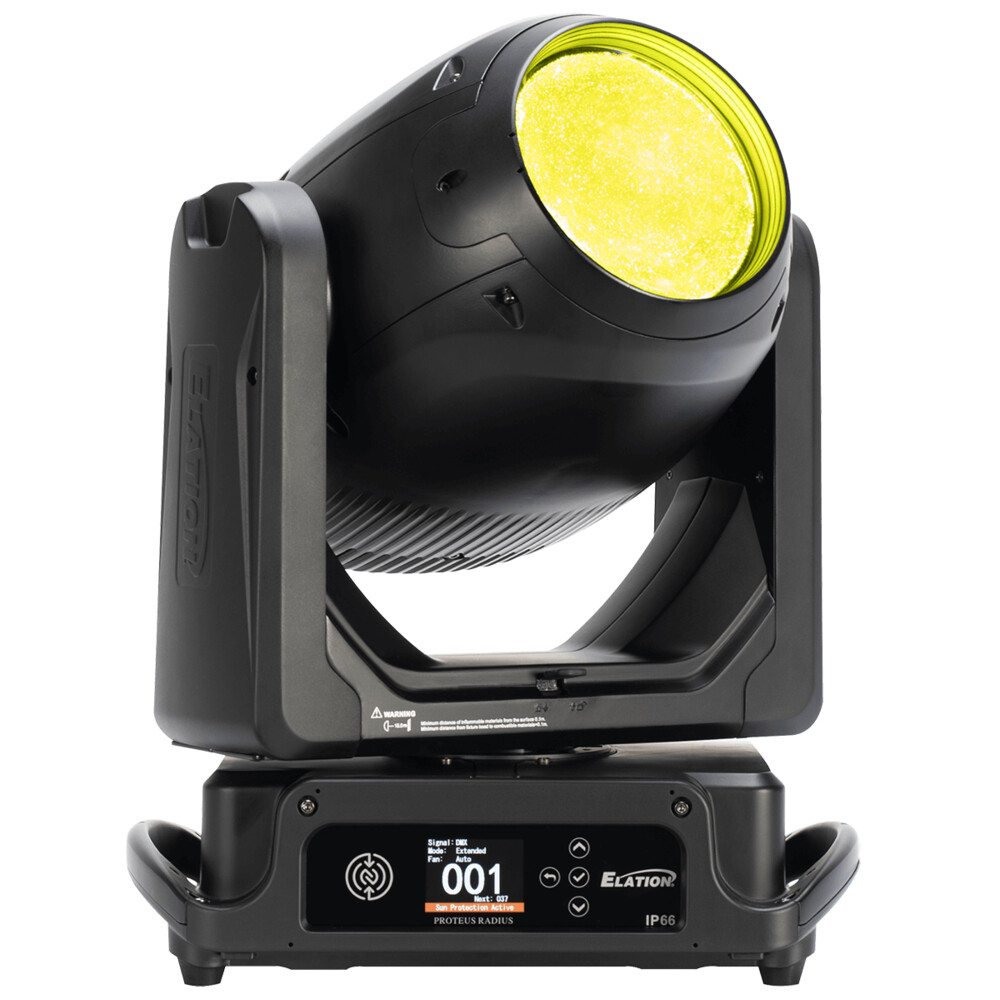

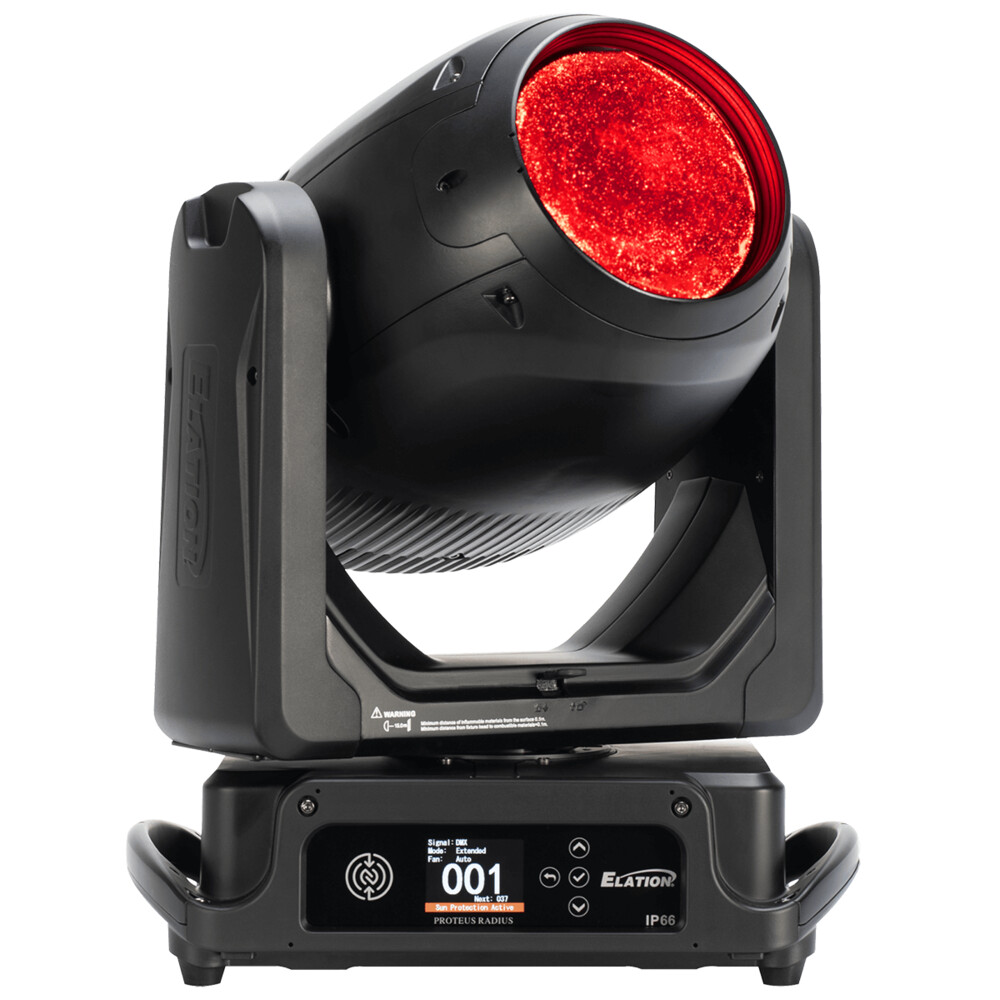

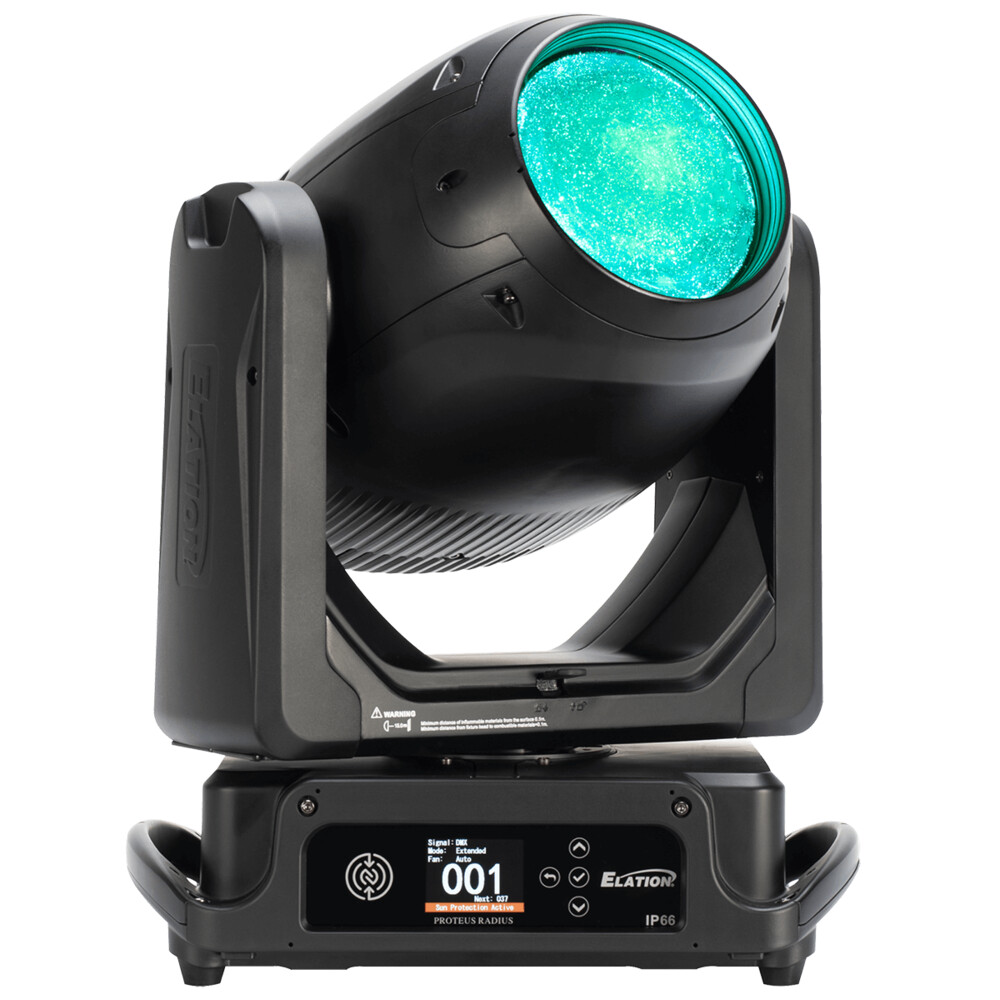

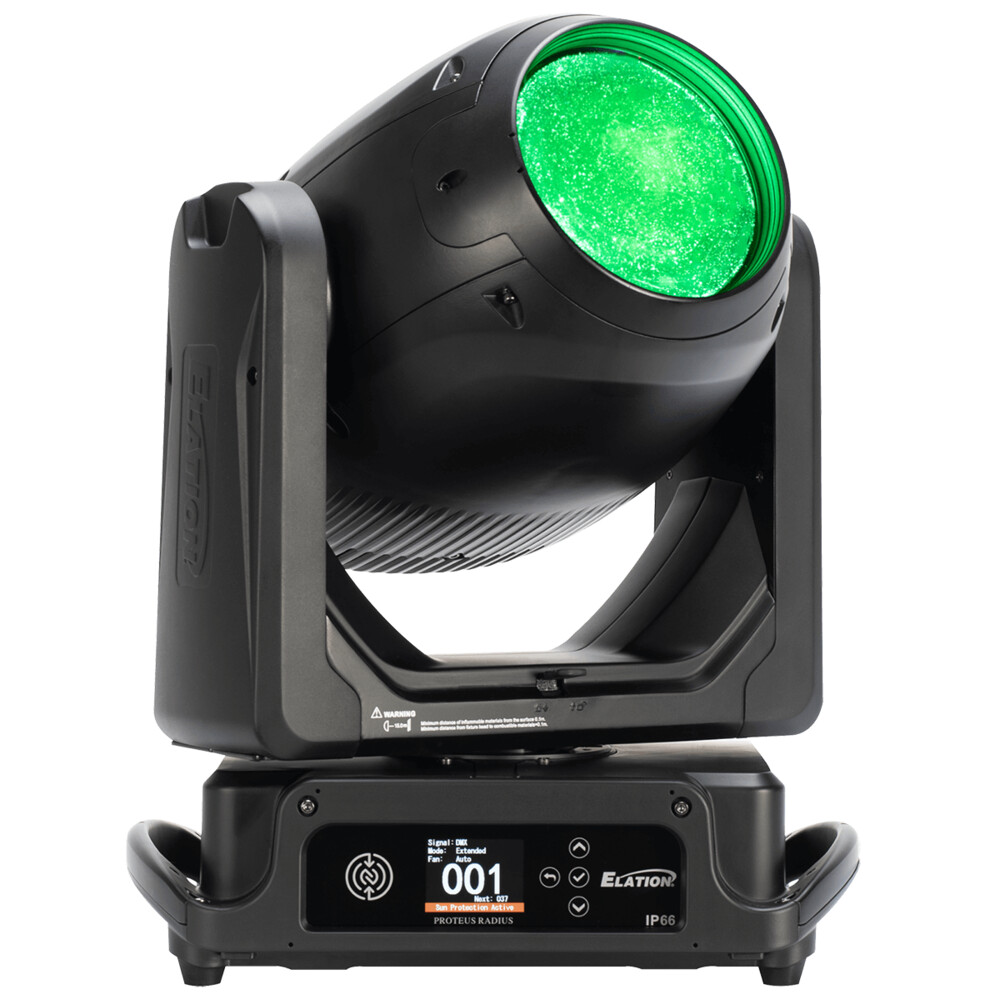

The Elation Professional PROTEUS RADIUS (PRD013) from DJDeals.com is a compact IP66-rated beam FX fixture powered by a 100W Laser-Pumped Phosphor Light Engine delivering 2,700 lumens at an ultra-narrow 0.9° beam angle, featuring ultra-fast 360° continuous rotation on both axes for bold and dynamic aerial beam animations. A Class 1 Risk Group 2 (RG2) laser product requiring no federal operator variance in the United States, the PROTEUS RADIUS combines CMY color mixing, 4 prisms on dual planes, dual frost, and 2 gobo wheels in an IP66 housing with NFC support, Art-Net, and sACN protocol compatibility.
Elation Professional PROTEUS RADIUS (PRD013) Features:
- 100W Laser-Pumped Phosphor Light Engine. Delivers 2,700 lumens at a 0.9° beam angle with a 6000K, CRI 70 output and 10,000-hour lamp life, projecting an intense, highly collimated laser-pumped beam that achieves extraordinary sky visibility and mid-air definition at a compact fixture size and power draw.
- Class 1 RG2 — No Federal Operator Variance Required. The PROTEUS RADIUS is certified as a Class 1 Risk Group 2 (RG2) laser product, meaning it can be operated in the United States without requiring the federal operator variance mandated for higher-risk laser classifications — simplifying event permitting and deployment.
- Endless 360° Pan & Tilt Rotation. Ultra-fast 360° continuous rotation on both pan and tilt axes enables aerial beam animations, spinning circle effects, continuous spirals, and high-speed beam choreography that would be physically impossible with fixtures having mechanical rotation stops.
- IP66 Weatherproof Housing. Fully sealed against dust and water ingress for reliable outdoor performance at concerts, competitions, theme parks, cruise ships, and permanent outdoor architectural installations in any weather conditions.

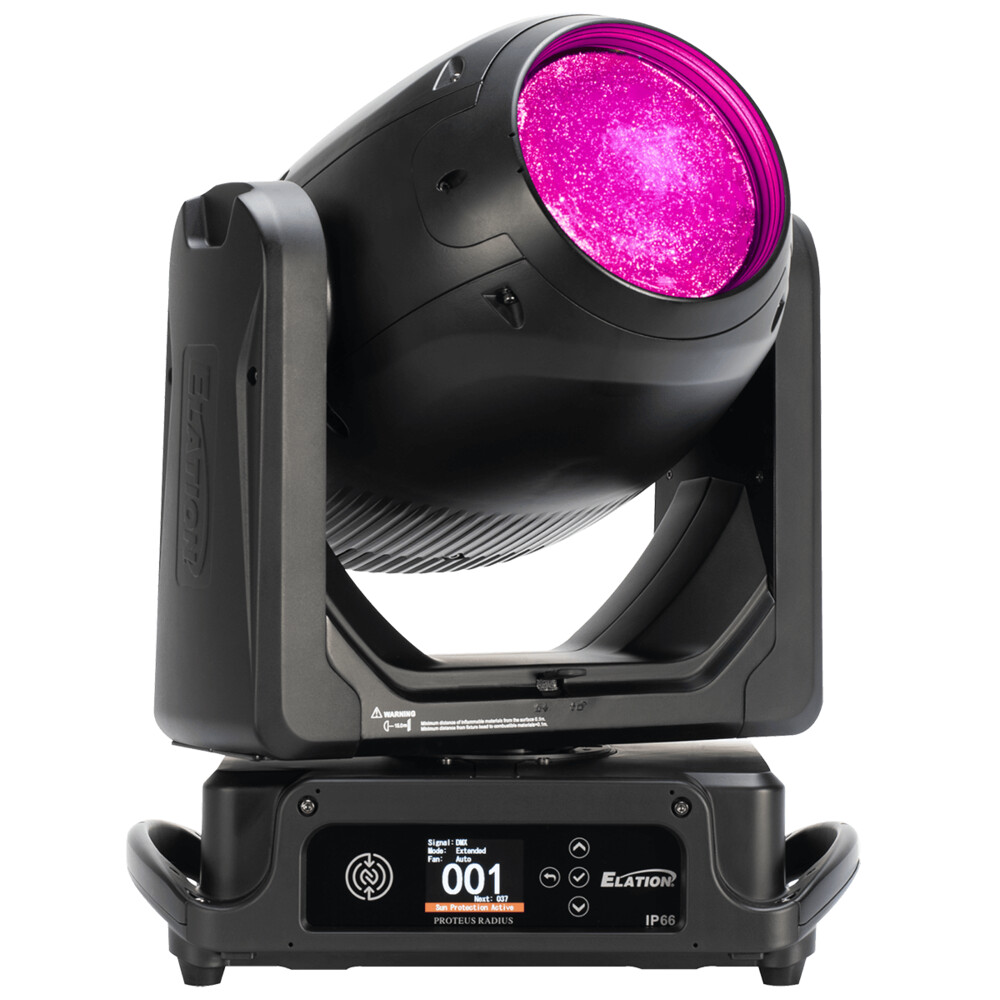

- CMY Color Mixing & 25-Position Color Wheel. Full CMY subtractive color mixing combined with a 25-position color wheel (including Cyan, Cyan 2, Green, Green 2, Kelly Green, Red, Blue, Blue 2, Deep Blue, Orange, UV, High CRI, Yellow, Yellow Green, Magenta, CTO, CTB, Light Blue, Pink, Wine Pink, RYBG, Light Yellow, Deep Yellow, Lavender, and Amber) provides an expansive color palette for aerial beam design.
- 4 Prisms on Dual Planes. Four prisms mounted on dual planes create layered optical multiplication effects, fan beam patterns, and complex aerial prism designs, combined with CMY, gobo, and prism macros for instant recall of complex looks during live performance.
- 2 Gobo Wheels with Metal Gobos. Two gobo wheels with 13 interchangeable rotating/indexing metal gobos (Wheel 1) and 24 static stamped metal gobos (Wheel 2) enable projection textures and aerial beam patterns far beyond what a pure beam fixture can achieve.
- Dual Frost & Motorized Focus. Dual frost filters and motorized focus provide smooth transitions between ultra-tight laser-sharp beams and softer projected looks, expanding the PROTEUS RADIUS creative range for diverse production needs.
- FIL Foam-In-Lay Packaging. Ships with a custom-fitted FIL polyurethane foam insert for safe transport and storage, with an 18.0″ center-to-center spacing designed to optimize multi-fixture placement in rigging arrays and stage layouts.
- Advanced Control Protocols. Two DMX channel modes with DMX, RDM, Art-Net, and sACN support, NFC configuration, 4-button touch panel, and full-color 180° reversible LCD for comprehensive local and network-based control.
Elation Professional PROTEUS RADIUS (PRD013) Specifications:
- Light Source: 100W Laser-Pumped Phosphor Light Engine, 6000K, CRI 70
- Lamp Life: 10,000 hours
- Total Lumens: 2,700
- Beam Angle: 0.9°
- Laser Classification: Class 1 Risk Group 2 (RG2) — no federal operator variance required (USA)
- Effects: Dual Frost, 4 Prisms on Dual Planes, CMY Color/Gobo/Prism Macros, Motorized Focus, Digital Shutter & Strobe
- Pan: 360° continuous rotation
- Tilt: 360° continuous rotation
- Color System: Full CMY Color Mixing, 25-Position Color Wheel
- Gobo Wheel 1: 13 Interchangeable Rotating/Indexing Metal Gobos
- Gobo Wheel 2: 24 Static Stamped Metal Gobos
- DMX Channel Modes: 2 modes
- Control Protocols: DMX, RDM, Art-Net, sACN
- NFC Support: Yes

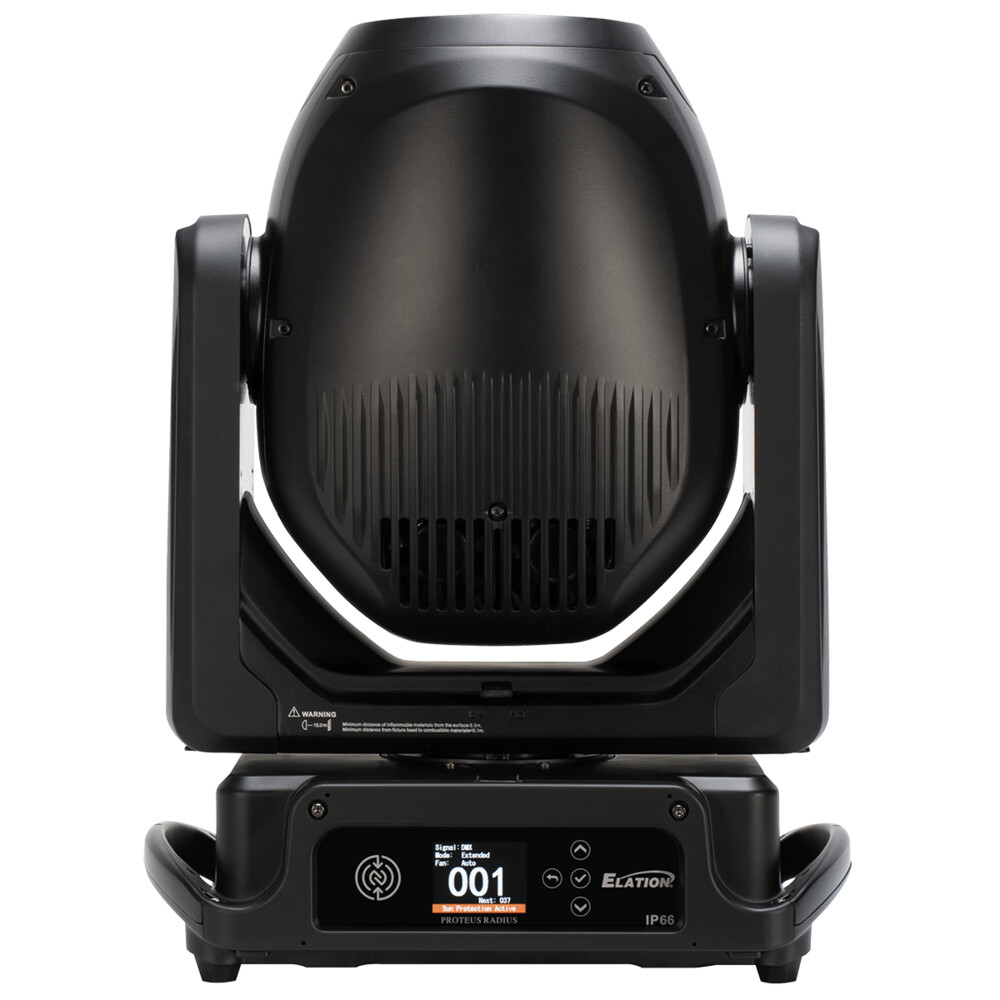

- Display: Full Color 180° Reversible LCD, 4-Button Touch Panel

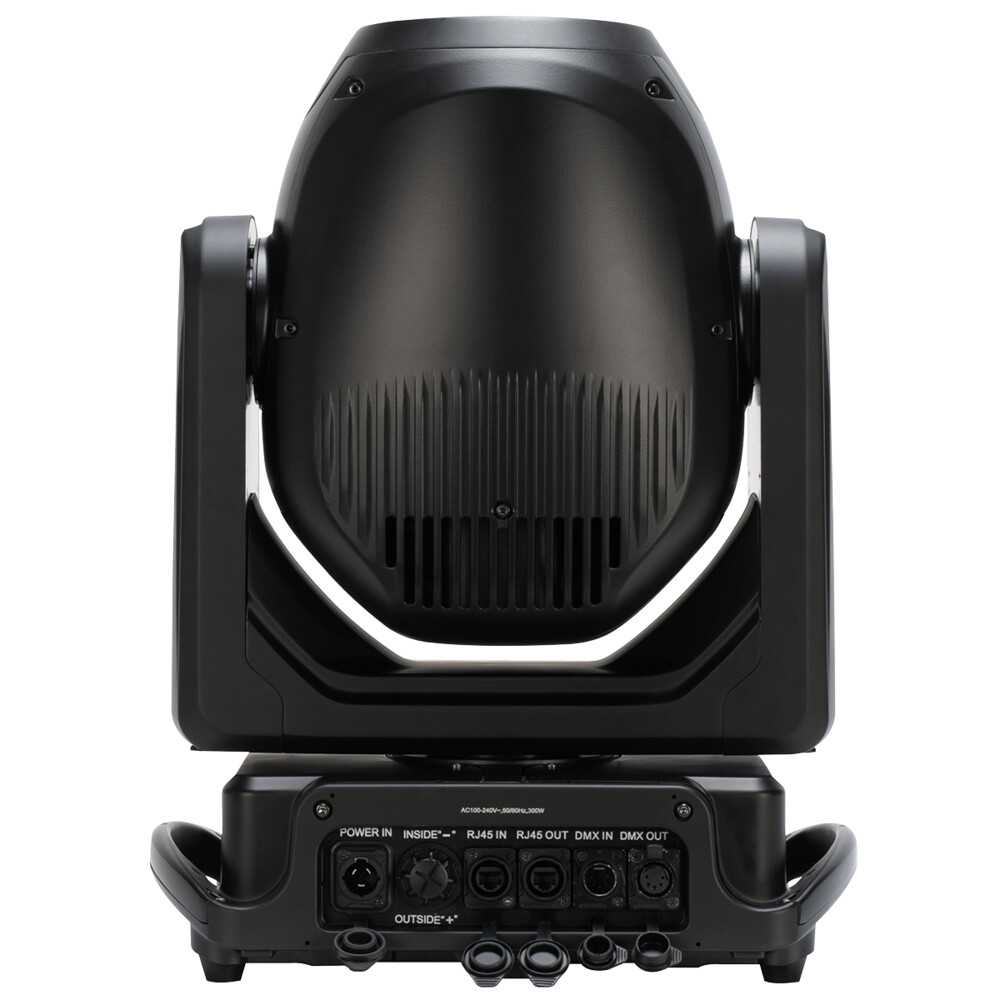

- Connectivity: IP65 5-pin DMX In/Out, IP65 RJ45 Ethernet In/Out, IP65 Locking Power In
- Length: 10.6″ (270mm)
- Width: 15.5″ (395mm)
- Height: 20.3″ (516mm)
- Center-to-Center: 18.0″ (456mm)
- Weight: 45.0 lbs. (20.4 kg)
- Power Supply: AC 100–240V, 50/60Hz
- Max Power Consumption: 300W
- Operating Temperature: -4°F to 113°F (-20°C to 45°C)
- IP Rating: IP66
- Approvals: CE, cETLus, IP66, FCC
- SKU: PRD013
- UPC: 810008264317
