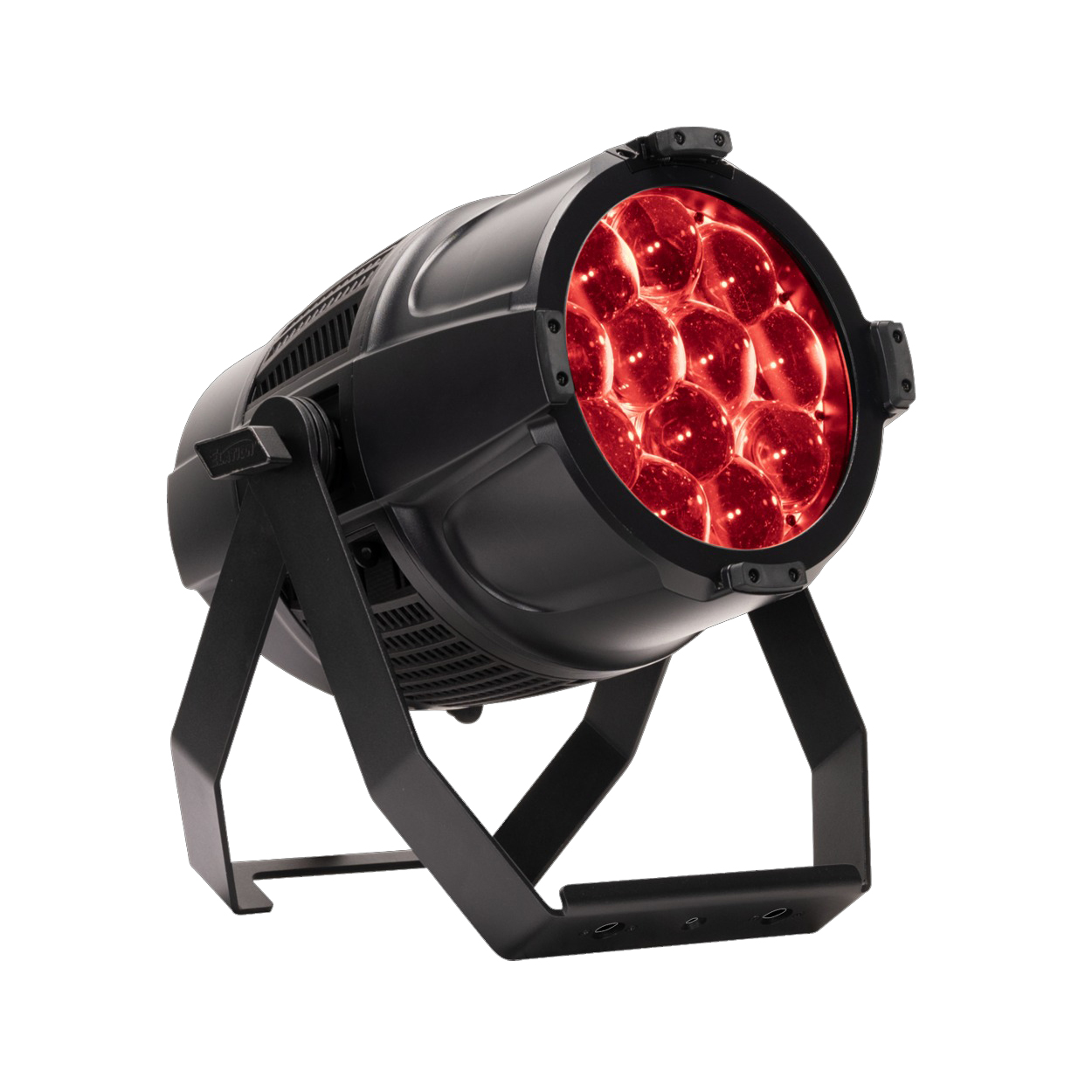

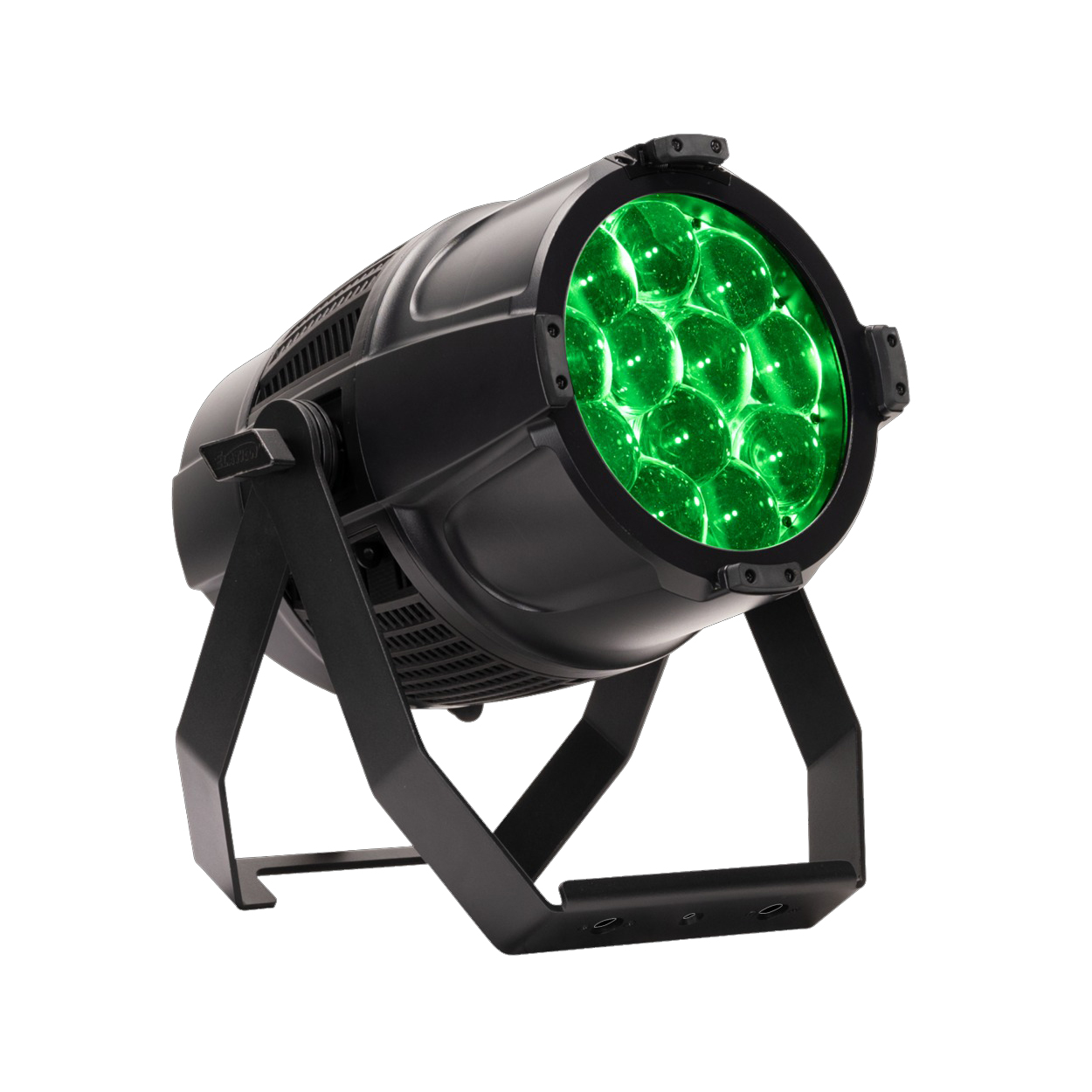

The Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom (LLP312) from DJDeals.com offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. It’s IP65 rating allows it to be used in any environment, indoors or out.
The Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom engine features (12) 60W RGBL LEDs, capable of producing 8,213 lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 40°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.
To expand the control capabilities on the Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.
The IP65 housing includes an integrated gel frame holder that can accommodate optional accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
The Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.
Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom Features:
- (12) 60W RGBL LED Array
- 8,213 Total Fixture Lumen Output (Sphere) Lumens
- 5°- 40° Beam Angle
- Smooth 16-bit Selectable Dimming Modes and Curves
- Remote LED Refresh Rate
- Flicker Free Operation for TV and Film
- IP65 Rated
Elation LIMELIGHT PAR L IP65 12x 60W RGBL LED PAR with Zoom Specifications:
SOURCE
(12) 60W RGBL LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output
8,213 (Integrating Sphere)
7,922 (Goniometer)
CRI – 83.4
TLCI – 67
Zoom Range 5° – 40°
Beam Angle: 5° – 40°
Field Angle: 8.5° – 56.5°
EFFECTS
Dual Zone LED Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBL Color Array
CMY Emulation
Variable CCT 2400K – 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
7 DMX Channel Modes (4ch/12ch/15ch/13ch/17ch/17ch/25ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
RDM (Remote Device Management)

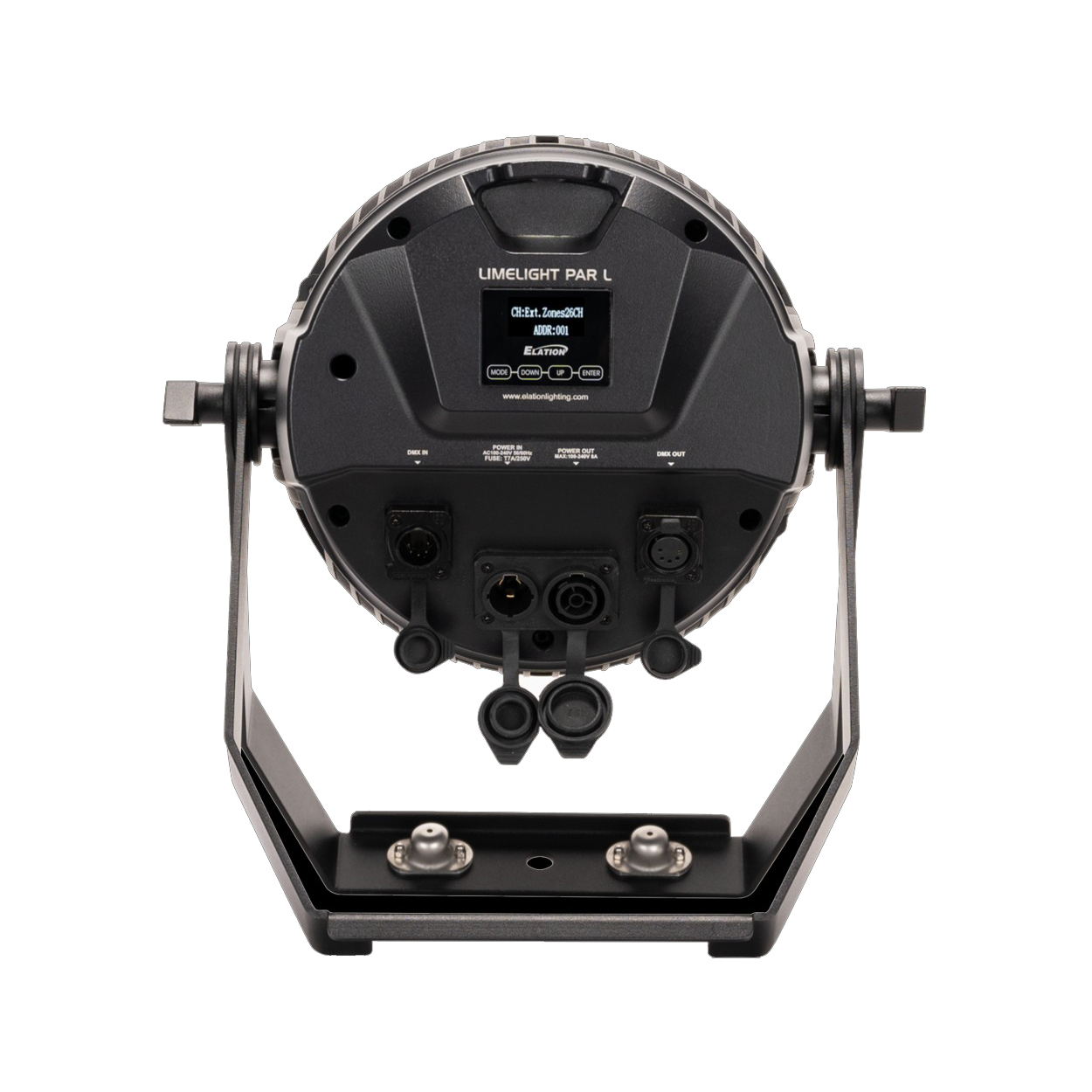

5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 13.4″ (341mm)
Width: 9.8” (248mm)
Vertical Height: 17.8” (451mm)
Weight: 21.8 lbs. (9.9kg)
ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
570W Max Power Consumption
Power Thru Capacity: 8A (1 unit @110V; 3 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 1943.7
INCLUDED ITEMS
IP65 Locking Power Cable
Safety Cable
OPTIONAL ITEMS
Gel Frame
Black Barndoor (LLP332)
# 8050000053 – Omega Bracket
APPROVALS / RATINGS
CE | cETLus | IP65 | FCC | UKCA
FIRMWARE UPDATE
Current Update:
Specifications and documentation subject to change without notice.
