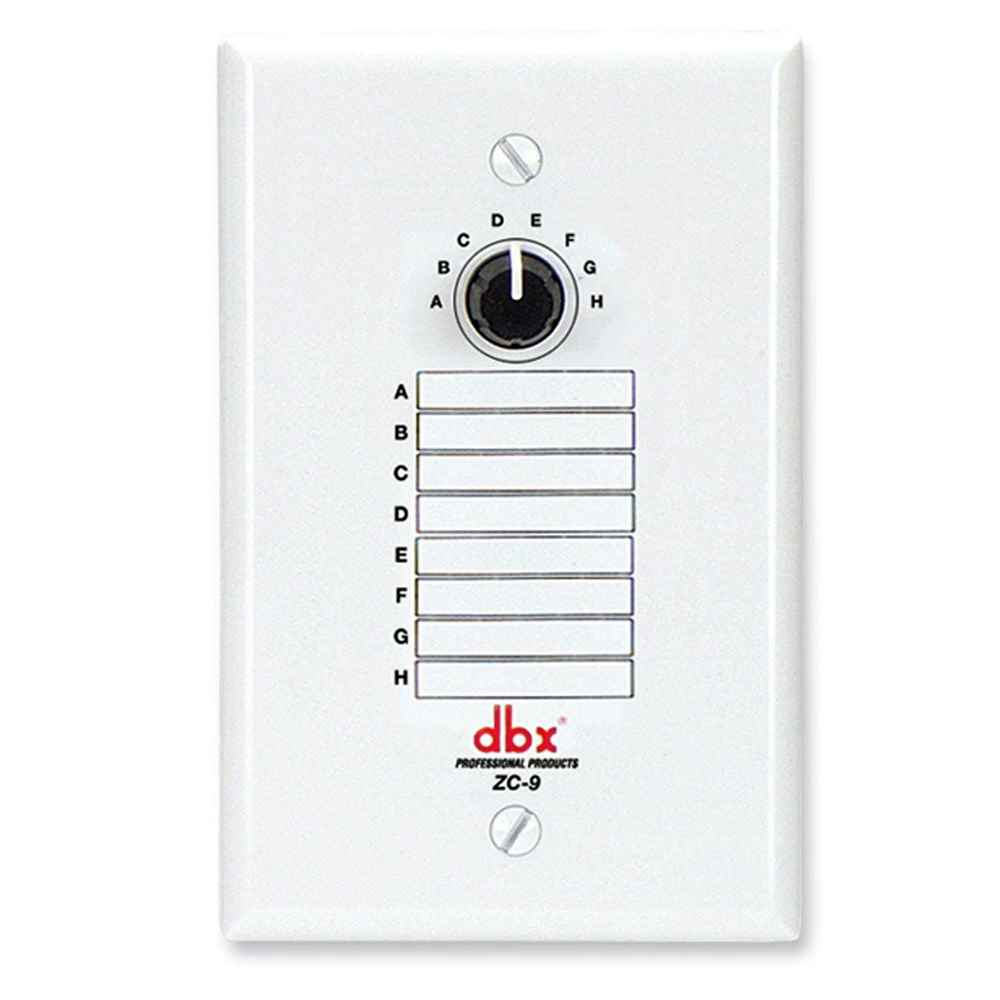

The dbx ZC-9 Wall-Mount Zone Controller from DJDeals.com is a sophisticated solution designed for managing source selection in dbx ZonePRO 1260 and 1261 devices. This controller is engineered to enhance the flexibility and functionality of audio systems, making it ideal for applications such as conference rooms, educational facilities, and other commercial environments where precise audio management is required.
The dbx ZC-9 Wall-Mounted Zone Controller is equipped with a programmable rotary switch for source selection, allowing users to easily navigate through multiple audio sources with a simple rotation of the control knob. This rotary source selection is particularly useful in environments where users need to quickly switch between different input sources, such as microphones, media players, or other audio equipment. The device’s intuitive interface ensures smooth operation and enhances the user experience.
For ease of installation and integration, the ZC-9 utilizes analog DC voltage for logic control and connects to dbx ZonePRO 1260 and 1261 devices via CAT5 or CAT5E cables with RJ-45 connectors. It supports cable lengths of up to 1000 feet, depending on the number of controllers used in the series. For instance, three ZC-9 controllers can be connected over a distance of 600 feet, while up to six controllers can be used over 300 feet. This flexibility allows for extensive and adaptable installations.
The dbx ZC-9 Wall-Mounted Zone Controller features DIP switches that facilitate straightforward identification and configuration when connecting to the processing device. This feature simplifies setup and ensures reliable operation across various installation scenarios. The ZC-9’s white finish provides a clean and professional appearance, blending seamlessly with a variety of interior designs.
In terms of safety and performance, the ZC-9 adheres to rigorous industry standards, including UL 60065, IEC 60065, EN 55013, and E60065 certifications. These certifications ensure that the controller meets high standards of safety and reliability, making it a dependable choice for professional audio applications.
Overall, the dbx ZC-9 Wall-Mount Zone Controller offers an effective and elegant solution for source selection in dbx ZonePRO systems. Its combination of rotary control, easy installation, and compliance with safety standards makes it a valuable addition to any audio management setup.
dbx ZC-9 Wall-Mounted Zone Controller Features:
- Programmable rotary switch for easy and intuitive source selection
- Designed specifically for use with dbx ZonePRO 1260 and 1261 devices
- Analog DC voltage logic control for reliable performance
- Connects via standard CAT5 or CAT5E cables with RJ-45 connectors
- Supports cable runs up to 1000 feet, depending on the number of controllers
- DIP switches for straightforward identification and configuration
- Finished in white to complement various interior designs
- Compliant with UL 60065, IEC 60065, EN 55013, and E60065 safety and performance standards
- Ideal for environments requiring efficient and flexible source selection
dbx ZC-9 Wall-Mounted Zone Controller Specifications:
- Connectors: 2 x RJ45
- Series Wiring: Maximum Cable length varies with number of Zone Controllers. Examples are 600FT for (3) Zone Controllers or 300FT with (6) Zone Controllers
- Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000 ft.) nominal DCR and rated VW-1 or higher
- Safety Agency Certifications: UL 60065, IEC 60065, EN 55013, E60065
