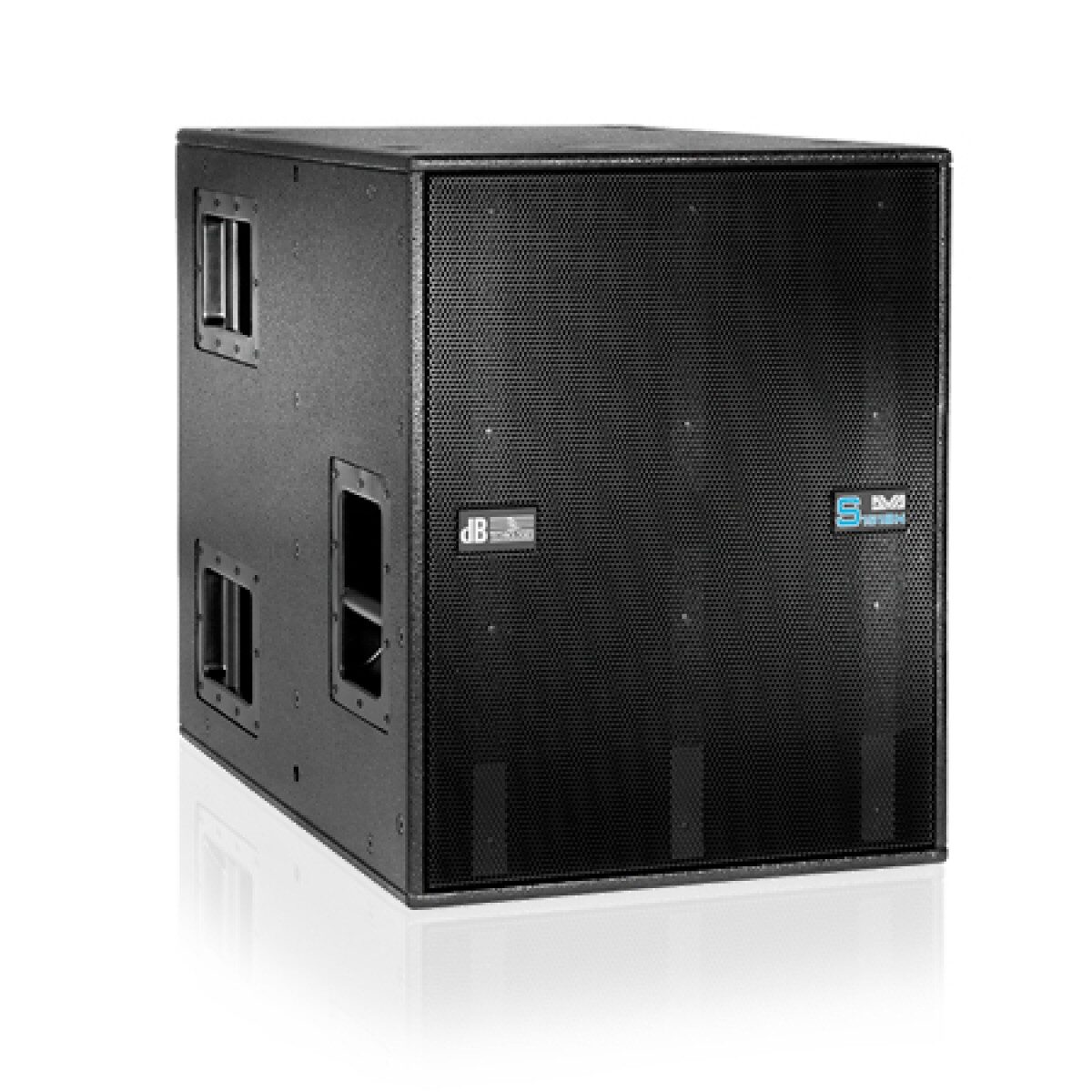

Name: dBTechnologies DVA S1518N 18" Active Subwoofer
Brand: dBTechnologies
SKU: DVA S1518N
Price: 3856.95 USD
Availability: InStock
Rating: 5 (1 reviews)

The dBTechnologies DVA S1518N 18″ Active Subwoofer (DVA S1518N) from DJDeals.com

The dBTechnologies DVA S1518N 18″ Active Subwoofer is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDNet link.

A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites’ lower midrange frequencies.

The dBTechnologies DVA S1518N 18″ Active Subwoofer comes complete with a next-generation, 18″ woofer driven by a built-in 1500W digipro G2 digital power amp.
Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit.

The dBTechnologies DVA S1518N 18″ Active Subwoofer will also serve you well in compact stacks paired with DVA T12, T8 and T4 units or DVX Series enclosures.

Equipped with PFC switched-mode power supplies, they are largely impervious to line voltage fluctuations, which is a tremendous asset in a touring rig.

Our network-enabled DVA subwoofers are designated by an “N” in the product name.

dBTechnologies DVA S1518N 18″ Active Subwoofer features a premium-quality DSP boasting excellent audio specs with variable crossover frequencies, precise limiter functions, and adjustable delay settings for perfect time alignment.

dBTechnologies DVA S1518N 18″ Active Subwoofer Specifications:

Technical Data
Speaker Type: Active Bandpass Subwoofer

Acoustical data
Frequency Response [+/- 3dB]: 39-120 Hz
Max SPL: 138 dB
Directivity: Omnidirectional, Cardiod Option with DSP setup
LF: 18 ”
Voice Coil LF: 4 ”

Amplifier
Amp Technology: Digipro G2
Amp Class: Class D
Power Supply: 1.5 kW SMPS
LF Amp: 1500 W RMS
Cooling: Convection

Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave

Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm 25.6 in)
Depth: 720 mm (28.8 in)
Weight: 46 kg (101.41 lbs)

Weight	118.15 lbs
Dimensions	31.8 × 29 × 23.5 in
