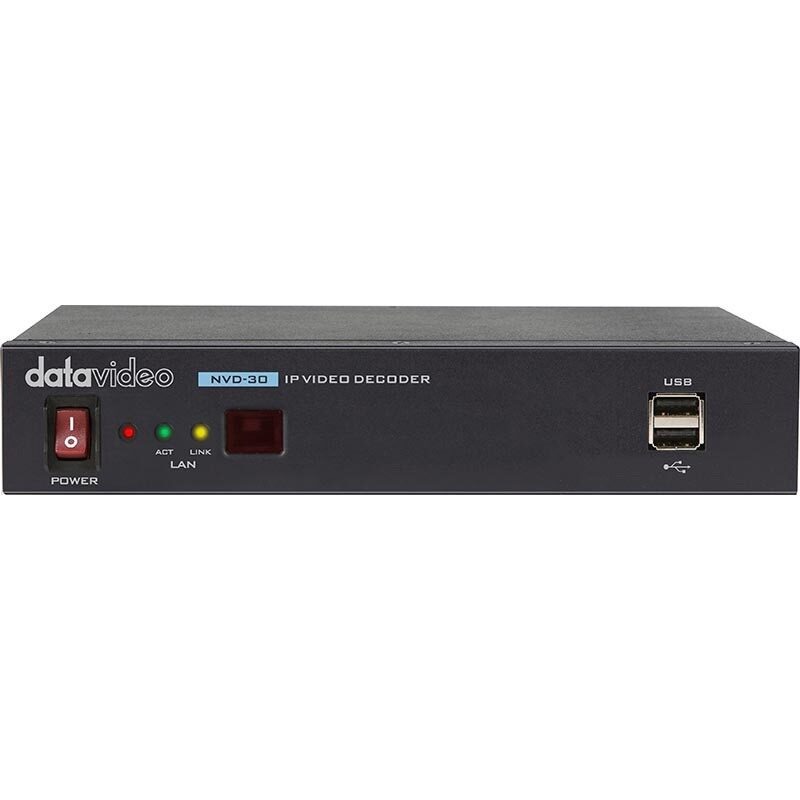

The Datavideo NVD-30 IP Video Decoder w/ HDMI & Composite & Analog Audio Outputs (NVD-30) from DJDeals.com is a wired IP video decoder with HDMI, Composite and analog audio outputs. The NVD-30 decodes all common protocols including RTP/RTSP, RTMP, UDP, TCP, HTTP, HLS and MPEG-TS and can output SD/HD video at resolutions up to 1080p60. It decodes directly from YouTube Live, UStream and most major CDNs without any 3rd party advertising.
The NVD-30 is the perfect partner to the Datavideo NVS-25/NVS-30 IP encoders allowing full HD point to point video links over Ethernet, WiFi or the Internet. When connected to a Datavideo DVS-200 Cloud Streaming Server, the NVD-30 can function as a IPTV set top box downloading a channel list of both live and pre-recorded streams automatically.
The below platforms are supported by the plugin:
BBC iPlayer
Brightcove
Dailymotion
ITV Player
Livestream
Ustream
YouTube
Datavideo NVD-30 IP Video Decoder w/ HDMI & Composite & Analog Audio Outputs Features:
- Operates on standard 10/100Mb Ethernet networks
- Excellent image quality with very low delay
- Unicast and multicast support
- Supports RTP/RTSP (Unicast/Multicast), RTMP, UDP (Unicast/Multicast), TCP, HTTP, HLS and MPEG-TS
- Direct decoding from most major CDNs without any 3rd party advertising
- Channel list download from DVS-200 Cloud Streaming Server
- Feature-rich WebUI for configuration and control
- Built in video scaler
- Supports Full HD video and audio
- Supports simultaneous digital embedded and analogue audio output
- Supports remote control by socket commands
- Small form factor, rack mountable using RMK-1
- Supports HDMI and Composite video output
Datavideo NVD-30 IP Video Decoder w/ HDMI & Composite & Analog Audio Outputs Specifications:
- Interface
- Audio/Video Input: RJ-45 Female (10/100M Ethernet) x1, DHCP/Static IP
- Video Output: HDMI x1 (Digital), Composite x1 (Analog)
- Audio Output: RCA (L/R) x2, HDMI embedded audio
- Indicator Power: LED x1, LAN LED x2 (Active, Connection)
- GPI: Yes
- IR Receiver: Yes
- Reset Button: Yes
Standards
- Video Resolution: 480i 60 (NTSC), 576i 50 (PAL)
720 @ 50p/60p
1080 @ 50i/60i
1080 @ 24p/25p/30p/50p/60p - Streaming Protocol: RTSP over UDP (Unicast/Multicast), RTSP over TCP, RTSP over HTTP, MPEG-TS over UDP, RTMP over TCP, UDP raw (Unicast/Multicast), HLS over HTTP, MPEG-TS over TCP Pull, Supported video sharing websites
General
- Control: Web browser UI for configuration and control, Socket commands
- Update: Automatic firmware upgrade
- Power Supply: DC 12V/0.5A
- Operating Temperature: 32°F to 122°F
- Humidity: 10% to 80%
- Dimensions: 8.66″ x5.64″ x1.65″
- Weight 2.2lbs
Datavideo NVD-30 IP Video Decoder w/ HDMI & Composite & Analog Audio Outputs Includes:
- (1) NVD-30 product
- (1) AD Switch DC 12V
- (1) CD for IP Finder
- (1) Thank You Card
- (1) Remote Control
Warranty
Datavideo NVD-30 IP Video Decoder w/ HDMI & Composite & Analog Audio Outputs Features:
- 1 year
