The Datavideo DAC-8PA HD/SD-SDI to HDMI Converter 1080p (DAC-8PA) from DJDeals.com
The super sturdy and durable Datavideo DAC8PA has a rugged metal housing and is designed for use in even the roughest conditions. Great features like low heat dissipation make it ideal for long hours of operation in almost any ventilated environment. The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI including the option to de-embed the audio via a Stereo RCA output. You also get automatic input signal and color depth detection with support for Deep Color and a simultaneous SDI loop-through with an HDMI output.
Features

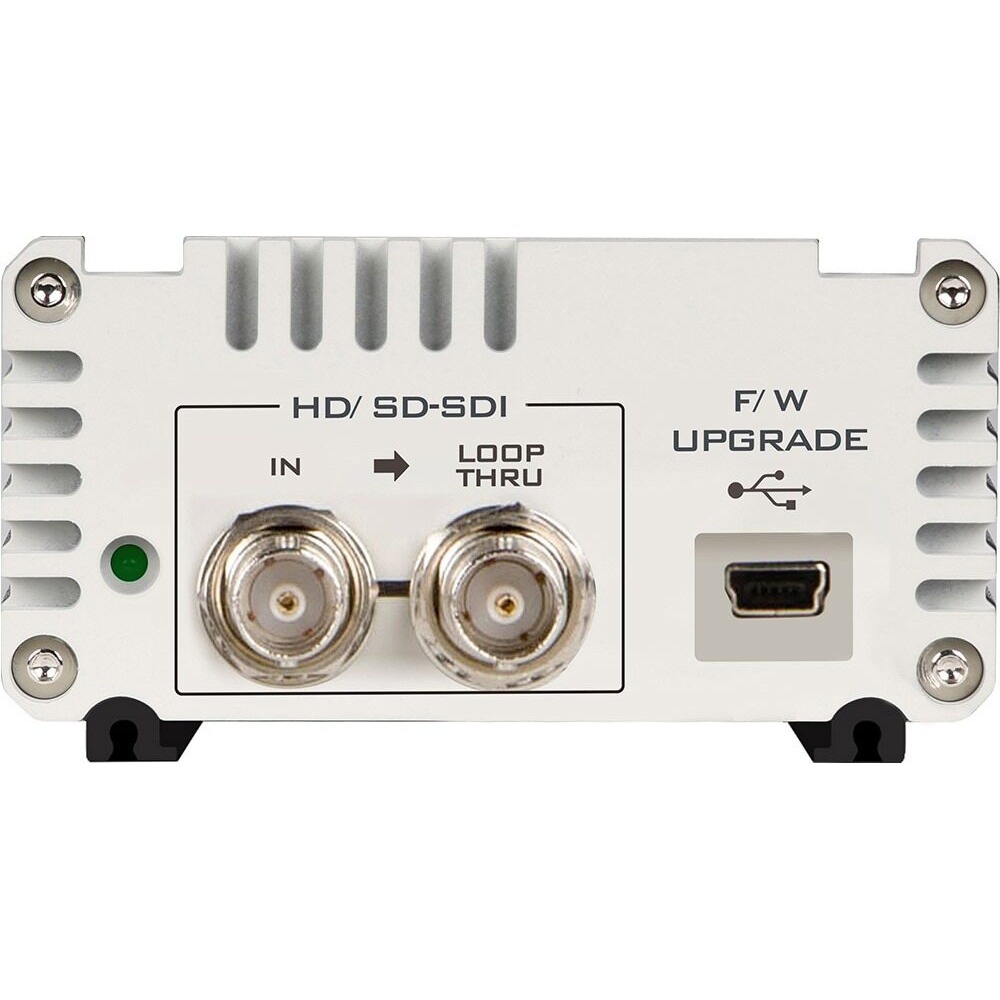

- HD/SD-SDI Input and Output (bypass)
- HDMI and RCA Output
- Firmware UPGRADE via USB
- DC Power Connector
Specifications
- Conversion : 3G/ HD/SD-SDI to HDMI
- Video Inputs : 1x 3G/HD/SD-SDI Loop Through 1
- Video Outputs : 1x HDMI with embedded
- Audio Inputs : 2x SDI Audio embedded
- Audio Outputs : 2x RCA (Stereo Pair) 2x HDMI Audio embedded
- Input Formats : 1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 625i 50 (PAL), 525i 59.94 (NTSC)
- Output Resolutions : Automatically matches the SD, HD and 3G SDI video input
- Equalizer : Yes
- Reclock : Yes
- SDI Cable Drive : Yes
- Dimension (LxWxH) : 112 x85 x45 mm
- Weight : 0.4 kg Operating Temp. Range 0~40 °C
- Power : DC 12V, 4W
Item Includes
Datavideo DAC-8PA HD/SD-SDI to HDMI Converter 1080p Features:
- What’s in the Box
- 1 xDAC-8PA product
- 1 xAD Switch DC 12V
- 1 xThank You Card
