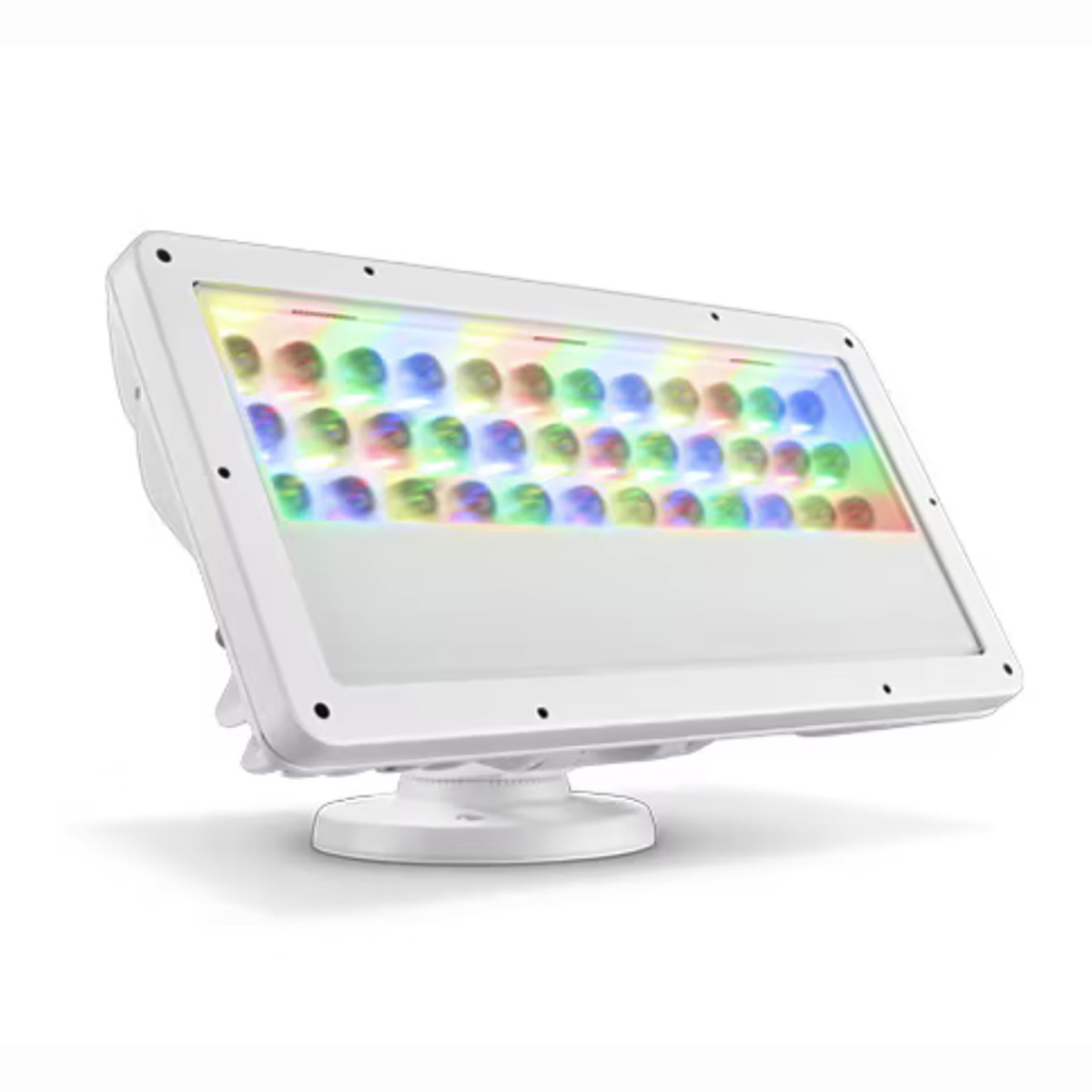

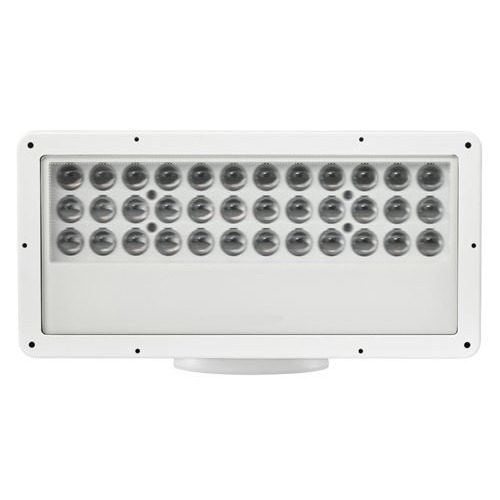

The Color Kinetics Blast Powercore gen5 IntelliHue OptiField (Gray) (423-000037-02) from DJDeals.com delivers exceptional CRI and the ability to choose any CCT between 2000 K and 10000 K. OptiField technology delivers extremely uniform illuminance, providing smooth, even light, and subtle shading with reduced setbacks—without hotspots or banding. Blast Powercore gen5, IntelliHue OptiField offers a range of accessories that allow for customizable beam angles for floodlighting, spotlighting, wall washing, and grazing, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminum housing.
Color Kinetics Blast Powercore gen5 IntelliHue OptiField (Gray) (423-000037-02) produces high-quality white, pastel, and saturated color light, in the same precisely controllable luminaire. IntelliHue technology delivers exceptional CRI and the ability to choose any CCT between 2000 K and 10000 K. OptiField technology delivers extremely uniform illuminance, providing smooth, even light and subtle shading with reduced setbacks without hotspots or banding. Blast Powercore gen5 offers a range of accessories that allow for customization, along with the efficiency and cost-effectiveness of Powercore technology in a rugged die-cast aluminum housing.
Color Kinetics Blast Powercore gen5 IntelliHue OptiField (Gray) (423-000037-02) Features:
- Blast Powercore gen5 integrates the latest LED innovations, custom optics, and a 100 to 277 VAC direct connection. The Blast Powercore gen5 family still retains the rock-solid reliability and no-compromises quality that earned Blast its unequaled reputation.
- OptiField technology, features extremely uniform illumination, providing smooth walls of light that appear perfect to the eye. And thanks to our breakthrough optics, you can place luminaires exceptionally close to illuminated surfaces.
- Delivers R9 values up to 90. Saturated red light gives objects and surfaces a vibrant and rich color that is ideal for spaces where the ambience is important.
- Chromasync technology improves color consistency between all LED luminaires in a family. During the manufacturing process, a calibrated light measurement device creates an algorithm to define a common color gamut for an entire family of LED luminaires. When Chromasync is enabled, color consistency between luminaires is achieved without having to manually adjust color points on each luminaire.
- Choose from a full line of high-quality accessories, from full and half glare shields to a rock guard, for all Blast Powercore gen5 luminaires, eliminating the need for third-party solutions. All in your choice of white, gray, or black.
- Blast is known for providing years of reliable use under rugged conditions. Blast gen5 raises reliability even further with more protection from corrosion by meeting ASTM B117 standard for > 1,500 hours of corrosion resistance and ANSI C136.31-2010 standard with a 3G vibration rating, and elimination of water pooling.
- Integrates patented Powercore technology that controls power output to luminaires directly from line voltage rapidly, efficiently, and accurately. The Color Kinetics Data Enabler Pro merges line voltage with control data and delivers them to luminaires over a single standard cable, dramatically simplifying installation and lowering total system cost.
- Works seamlessly with the Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, Antumbra iColor Keypad, and ColorDial Pro as well as third-party controllers.
Color Kinetics Blast Powercore gen5 IntelliHue OptiField (Gray) (423-000037-02) Specifications:
Output
- Beam: Wall Washing
- Lumens All Channels Full On: 2,170
- Lumens @ 2700 K: 1,157
- Lumens @ 4000 K: 1,263
- Lumens per channel: R 345 / G 800 / B 221 / MW 954
- Efficacy (lm/W) All Channels Full On: 45.3
- Efficacy (lm/W) @ 2700 K: 53.7
- Efficacy (lm/W) @ 4000 K: 51.2
- CRI @ 2700 K: 93.5
- CRI @ 4000 K: 92.1
- LED Channels: Red/Green/Blue/Mint White
Electrical
- Input Voltage: 100 to 277 VAC, auto-ranging, 50/60 Hz
- Power Consumption: 21.6 to 47.9 W
- Power Factor: 0.99 @ 120 VAC
- Surge Limits: 1 kV maximum differential (L to N), 2 kV maximum common (L to Gnd or N to Gnd)
Control
- Interface: Data Enabler Pro (DMX or Ethernet)
- Control Channels: 4 channels per luminaire
- Control System: Color Kinetics full range of controllers, including Light System Manager, iPlayer 3, Antumbra iColor Keypad, and ColorDial Pro, or third-party controllers
- Remote Monitoring & Management: Works with Interact Landmark
Physical
- Dimensions: 7.2 x 13.2 x 6.74 in
- Weight: 8.2 lb
- Effective Projected Area (EPA): 0.73 sq/ft
- Housing Material: Die-cast aluminium, gray powder-coated finish
- Lens: Clear tempered glass
- Luminaire Connections: 1.8 m (6 ft) unifed power/data cable
- Temperature Ranges: -40 to 122F Operating, -4 to 122F Startup, -40 to 176F Storage
- Vibration Resistance: Complies with ANSI C136.31, 3G
- Mechanical Impact: IK10
- Corrosion Resistance: Complies with ASTM B117 standard for > 1,500 hours
- Humidity: 0 to 95%, non-condensing
- Thermal Protection: enabled
Certification and Safety
Color Kinetics Blast Powercore gen5 IntelliHue OptiField (Gray) Features:
- Approbation: UL/cUL, FCC Class A, CE, PSE, CQC, RCM, EAC, UA
- Environment: Dry/Damp/Wet Location, IP66
