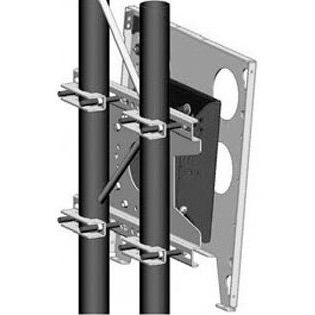

Quick, easy and versatile, Chief’s Truss Tilt-Adjustable Mounts are often used for mounting the large flat panel displays used in exhibit, retail and digital signage.
Clamps for different size poles and truss work are required and must be ordered separately (see http://www.chiefmfg.com for TPK kits and chart)
Features:
3 Flat Panel Mount Options TPS: Truss/Pole Fixed Mount ; TPM: Pole Tilt-Adjustable Mount ; and TPP: Truss Pitch-Adjustable Mount.
3 Pitch Adjustment Options on TPM and TPP
Install on vertical or horizontal truss
Attach displays in portrait or landscape orientation
TPS/TPP span most truss systems up to 14″ (OD)
Truss/Pole clamps fit a wide variety of truss and pole dimensions
Finishing Cover accessories enhance aesthetics and cover hardware for added security
Exclusive Q-Latch Mounting System secures the Large Flat Panel Display with a lockable latch
Screen can be installed in portrait or landscape orientation (PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Integrated security allows display to be locked to mount by adding a padlock
Compatible with TPK clamp accessories
Specifications:
Certifications: UL Listed
Color: Black
Minimum Depth: 4.13″ (104.9mm)
Mounting Pattern Compatibility (Universal Versions): 200 x 200mm – 862 x 517mm
Orientation: Landscape, Portrait
Overall Dimensions: 16.2″ H x 17.1″ W x 4.1″ D (412 x 433 x 105 mm)
Post-Installation Leveling (Roll): Yes
Shipping Weight: 30.00 lbs
Solution Type: Universal
Typical Screen Sizes: 42″ – 71″
Weight Capacity: 150 lbs (68.kg)
