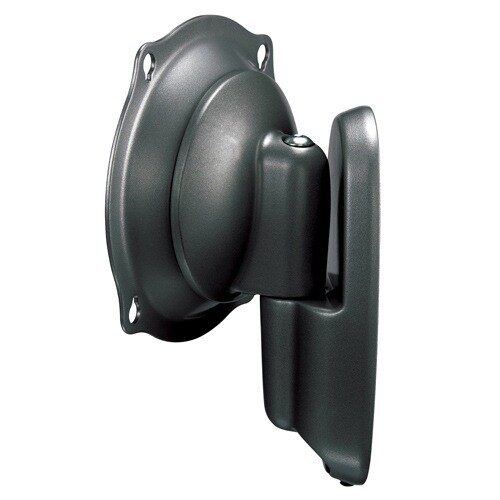

Easily attaches flat panel monitors and TVs to the wall. Also provides smooth pivot and tilt adjustments for different viewing angles and ergonomic needs.
Features:
Centris Fingertip Tilt provides smooth tilt adjustment in all directions
Teardrop hole pattern makes mounting the screen quick and easy
Independently adjustable tension at pivot points for customized control
Portrait and landscape screen installation
Quick, easy cable management
Sleek, attractive design hides all hardware
Ships assembled
Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
MSB interface bracket can be purchased separately for non-VESA compatible screens
Specifications:
Certifications: UL Listed
Color: Black
Minimum Depth: 3.35″ (85.1mm)
Mounting Pattern Compatibility (Universal Versions): 100 x 100mm – 400 x 400mm
Notes: Depth and Extension do not include interface bracket (adds 0.5 – 1.5″)
Orientation: Landscape, Portrait
Overall Dimensions (H x W x D): 8.3″ x 6.0″ x 3.4″ (211 x 152 x 85mm)
Post-Installation Leveling (Roll): Yes
Shipping Weight: 10.25 lbs
Solution Type: Universal
Tilt: + 15° , – 15°
Typical Screen Sizes: 26 – 45″
Wall Stud Compatibility (inches): Single Stud
Weight Capacity: 75 lbs (34.kg)
