The Avolites T3 16-Universe Lighting Control Console (30-01-9803) from DJDeals.com is a revolutionary 16-universe USB lighting control surface, meticulously designed for professionals who prioritize portability, compactness, and performance in their lighting setups. Constructed with a robust combination of aluminum and steel, the T3 offers unparalleled durability, making it an ideal companion for life on the road. This lightweight console includes a soft carrying case, ensuring that it can withstand the rigors of travel while remaining easy to transport. With its sleek and aspirational design, the T3 is not only functional but also visually appealing.
Equipped with 10 playback faders, the T3 provides intuitive control over lighting cues, enabling users to make real-time adjustments during performances. The console also features 12 macro/executor buttons, which allow for quick access to frequently used functions, enhancing operational efficiency. Additionally, the T3 includes 20 C&K flash buttons with custom caps, providing tactile feedback for immediate execution of commands. For precise control of various parameters, the console is equipped with three high-quality optical encoder wheels, which facilitate fine-tuning of effects and settings.
The T3 is designed with user comfort and functionality in mind, featuring a durable reverse-printed laminate on high-wear areas to ensure longevity even under heavy use. The console is fitted with 96 low-profile Cherry backlit keys, which provide a clear view of controls in low-light environments, and nine new Titan keys that match the layout of the D9 for ease of use across different consoles. Security and access are further enhanced with the AVOKey factory-fitted feature, ensuring that only authorized users can operate the console.
Connectivity options on the T3 are extensive, featuring 4 x 5-pin XLR outputs that can be configured for DMX input via an adapter cable, allowing for versatility in setups. The console supports up to 16 Ethernet DMX universes (Art-Net and sACN) from the host computer, along with a 3-pin XLR SMPTE LTC input for timecode synchronization. USB-C compatibility allows for easy connection to a host computer, and the screw lockable USB-C cable ensures a secure connection during operation. Furthermore, the T3 supports USB MIDI through the host computer, allowing for enhanced integration with external devices. It can accommodate up to two additional touchscreens connected to the host computer, expanding the control surface further when needed.
The T3 operates on the Avolites Titan PC Suite, with a base OS of Microsoft Windows 10 or higher. It features a built-in 3D visualization capture engine, enabling users to plan and visualize their lighting designs effectively. The Titan Net capability allows for multi-user operations with any Titan console (version 16.0 and above), making it ideal for collaborative environments. Users can output formats including Art-Net, sACN, or DMX512, ensuring compatibility with a wide range of lighting systems. The console supports up to 32,768 DMX channels across the system, with each device capable of managing 8,192 channels, providing ample capacity for even the most complex setups.
Physically, the T3 measures 15.82 x 10.62 x 1.96 inches, making it incredibly compact for a full-featured console. Its weight of 6.6 lbs (or 8.2 lbs with the case) enhances its portability, allowing users to take it anywhere they need. The shipping dimensions are 18.74 x 14.48 x 3.46 inches, ensuring that it fits easily in standard transport setups. With a power consumption of up to 900mA via USB 3.1, the T3 provides an efficient power solution without the need for a separate power supply, streamlining setup and operation.
In summary, the Avolites T3 is a compact, powerful, and versatile lighting control surface that excels in various production environments. Its combination of high-quality components, extensive connectivity options, and user-friendly design make it an indispensable tool for lighting professionals looking for performance and portability.
Avolites T3 16-Universe Lighting Control Console Features:
- Compact design measuring 15.82 x 10.62 x 1.96 inches, weighing just 6.6 lbs (8.2 lbs with case).
- Includes a soft carrying case for protection and easy transport.
- Equipped with 10 playback faders for intuitive control of lighting cues.
- Features 12 macro/executor buttons for quick access to frequently used functions.
- Includes 20 C&K flash buttons with custom caps for immediate command execution.
- Three high-quality optical encoder wheels for precise parameter adjustments.
- 96 low-profile Cherry backlit keys for visibility in low-light environments.
- 4 x 5-pin XLR outputs with options for DMX input and up to 16 Ethernet DMX universes.
- Supports USB MIDI integration, up to two external touchscreens, and AVOKey security.
- Powered via USB 3.1, eliminating the need for a separate power supply.
Avolites T3 16-Universe Lighting Control Console Specifications:
Connectivity
- Ports: 4 x 5-Pin XLR (DMX Ports can be configured as input via adapter cable), up to 16 ethernet DMX universes (Art-Net and sACN from host computer), 3-Pin XLR SMPTE LTC input, USB-C compatible with USB 3.1
- Peripherals: USB MIDI support through host computer, Titan supports up to 2 touchscreens connected to host computer, expand control surface with optional fader wing
PC Specification
- Processor (Minimum): Intel i5 2GHz AMD Ryzen 5 3600XT, 6000 benchmark scores
- System RAM (Minimum): 16GB
- GPU: Passmark 2000 or greater, support for Direct X 11.1
- Storage: SSD 256GB + 20% space free
- OS: Microsoft Windows 10 upwards (control over firewall and virus scanning software settings
Software
- Software Platform: Avolites Titan PC Suite
- Base OS: Microsoft Windows 10 upwards
- 3D Visualization: Capture Engine Built-in
- Titan Net: Multi-user with any Titan Console (v16.0 and above)
- Output Formats: Art-Net, sACN or DMX512
- Universes: Up to 16 DMX Universes (Art-Net and sACN from Host, PC Hardware dependent)
- External Control: Web API, MIDI, DMX, sACN
- Playback Control: User defined using multiple faders, encoders and buttons
- DMX Channels per Device: 8,192
- DMX Channels per System: 32,768
Hardware
- Unit Dimensions: 15.82 x 10.62 x 1.96 inches
- Shipping Dimensions: 18.74 x 14.48 x 3.46 inches
- Weight: 6.6 lbs, 8.2 lbs (with case)
- Connection: Screw Lockable USB-C
- Power Consumption: USB 3.1, up to 900mA
Created in collaboration with leading lighting designers, the new T3 is the lightest, smallest, most portable console we have ever produced. Avolites T3 shares the new design language first seen in the Diamond 9, and together with the companion Wing they form an unbeatable portable control surface.
Avolites, a world leader in the innovation of visual control systems, announces the replacement of the globally recognized Avolites Titan Mobile, which has now ceased production.
Avolites launched its smallest control surface the Titan Mobile in 2010, together with a companion wing. Over its twelve years of production, it has become trusted and depended upon world-wide by many thousands of users. Over the years the Titan Mobile has been equally at home powering live productions on all sizes of stage to major installations. Anywhere were a small footprint, reliable hardware and a powerful lighting software platform has been needed.
The new Avolites T3 is the lightest, smallest, most portable console we have ever produced. Avolites T3 lighting controller shares the new design language first seen in the Diamond 9, and together with the companion Wing they form an unbeatable portable control surface. The new Avolites T3 16-Universe Lighting Control Console is the leading product in the PC powered, T Series comprising of exiting products T1 and T2, now with the T3 and T3-Wing.
The Avolites T3 16-Universe Lighting Control Console combines the full power of our proprietary Titan software.
With a compact, lightweight design that easily connects to your laptop to produce a fully featured moving lights control system.
The key difference of the new T3 is not just the visual change, taking cues from the Diamond 9 flagship console. But also, the button layout, so there is less adjustment required for your muscle memory when using other Avolites consoles.
The T3 is the leading product in the newly named, PC-powered T- Series, comprising of the existing T1, T2, and now with the addition of the new T3 and T3-Wing. Taking design cues from Avolites’ Diamond 9 flagship console, Avolites says its ergonomic design requires less muscle memory to operate, as well as having a lower height profile and being 20% lighter yet still as robust as it iconic predecessor. Users can connect and power the T3 or T3-Wing via the USB-C port and use the four DMX ports and an LTC port to hook up the system to a full rig. Output up to 16 DMX universes from the host PC via Art-Net and sACN, with the option to upgrade to 32 or 64 universes if required. The T3 key features include three optical encoder wheels, nine new titan keys to match the D9 layout, 10 playback faders, 12 macro/executor buttons, 20 C&K flash buttons with custom cap, 92 Cherry MX Low Profile keys with blue backlit illumination and AVOKey security built in.
0 X PLAYBACK FADERS
Uncompromised feel of Avolites faders, now ready to travel everywhere with you.
3 X OPTICAL ENCODER WHEELS
Reliable and accurate wheels for precise attribute control.
ATTRIBUTE SELECT CONTROLS
Quick access to control and filtering of attribute groups.
12 X MACRO/EXECUTOR BUTTONS
Extra buttons for fast access to macros, or more playbacks for performance.
9 X NEW TITAN KEYS
To match the Avolites D9 layout, including the direction and undo keys.
20 C&K FLASH BUTTONS
With custom key caps.
UNIVERSES
Up to 16 DMX universes (ART-NET and S-ACN) from host, PC hardware specification dependent. Optional upgrade to 32 or 64 universes (with the addition of titan net processors).
Professional lighting control where portability, compactness and performance is essential.
Created in collaboration with leading lighting designers, Avolites T3 is the lightest, smallest, most affordable Avolites console we have ever produced. Sharing the new design language first seen in the Diamond 9, Avolites T3 is made for life on the road.

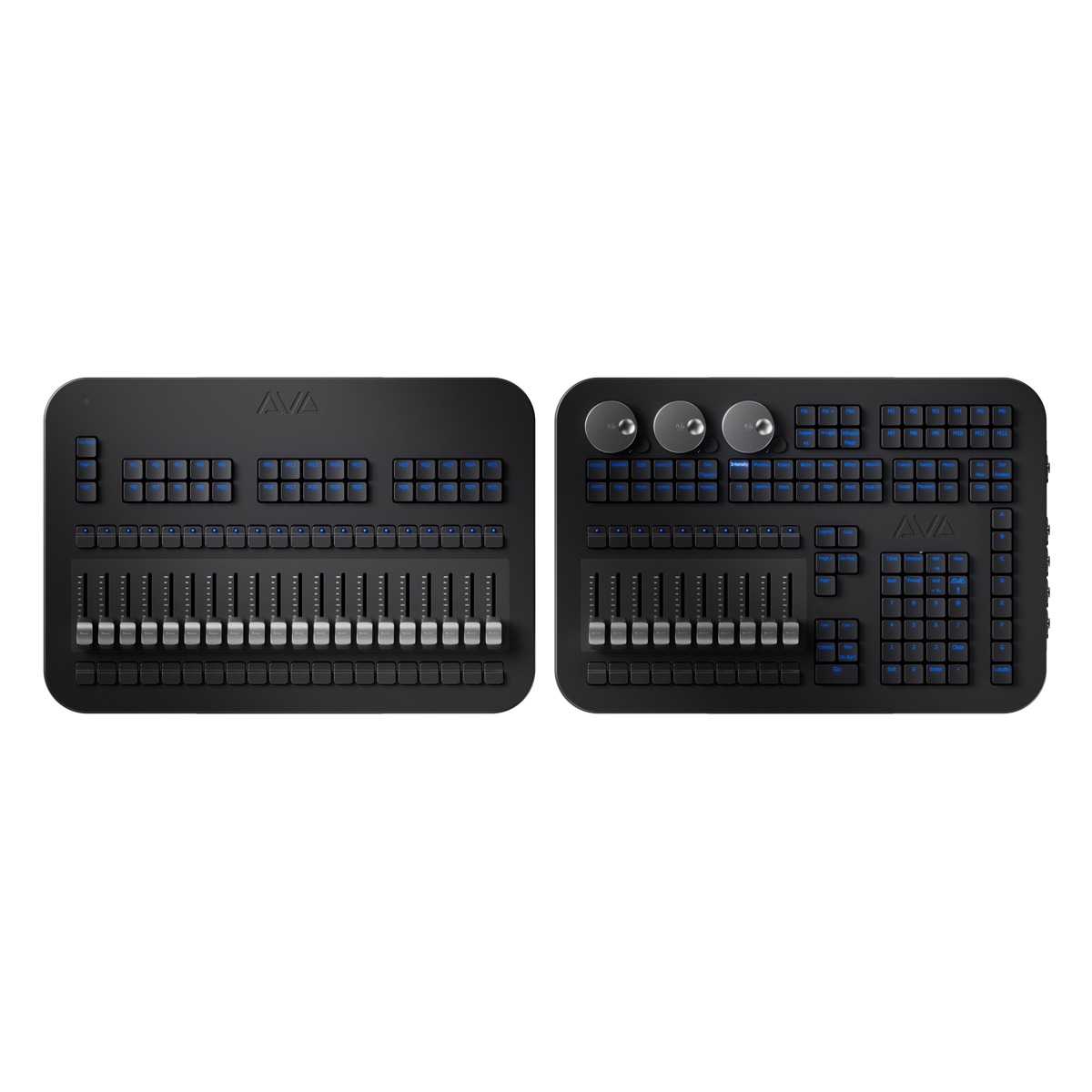

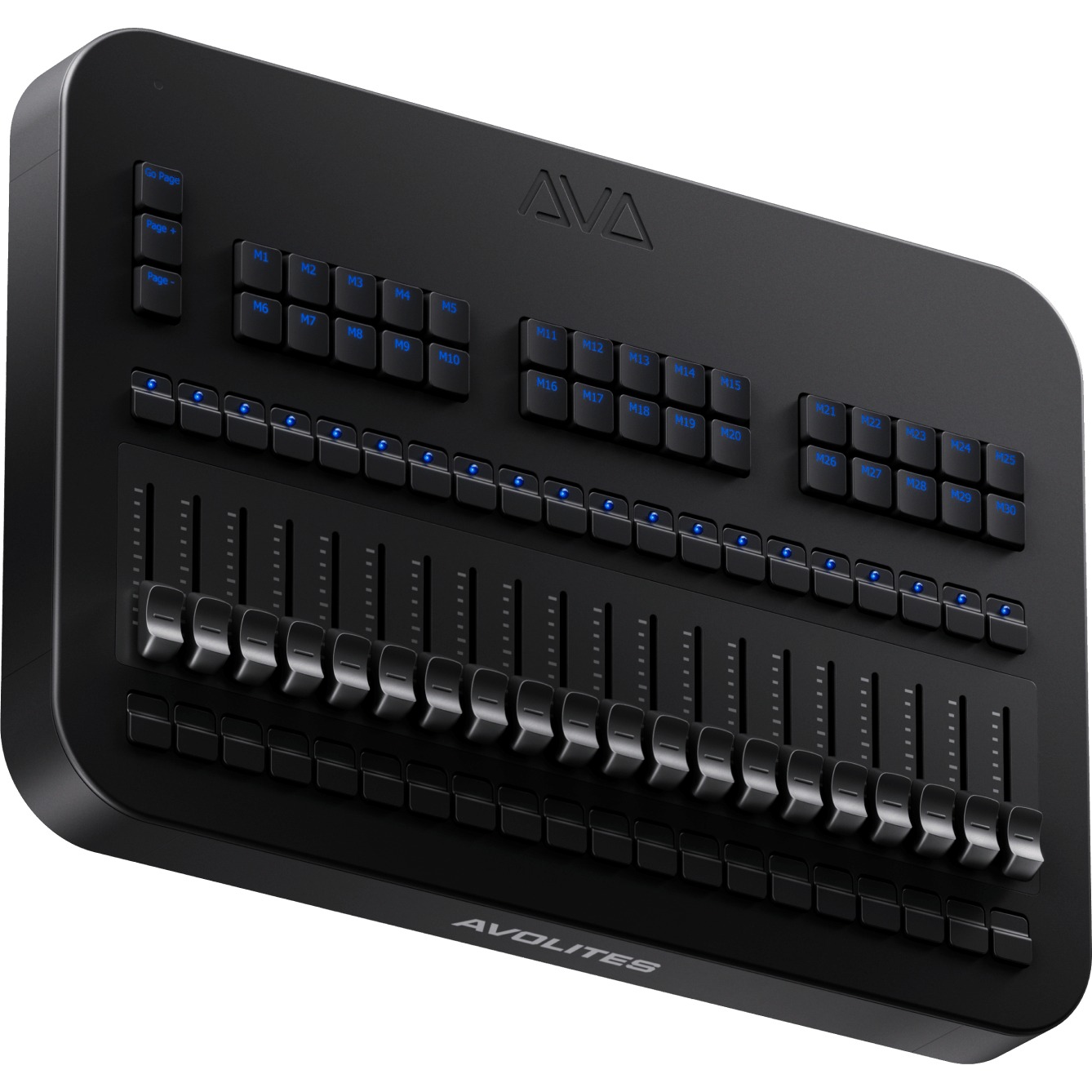

Designed to take demanding shows anywhere, Avolites T3 and the optional Avolites T3–Wing companion form an unbeatable portable control surface.
TOTAL CONTROL
3 control wheels. 8 menu soft keys. 12 macro buttons. 30 faders. 42 function buttons.
FLAGSHIP BUILD QUALITY
Affordable doesn’t have to mean compromised, as Avolites T3 shares many flagship components.
FITS IN A SINGLE BACKPACK
Barely bigger than a laptop, Avolites T3 and Avolites T3–Wing fit into a single backpack.
CABIN WEIGHT
Engineered for travel weight, the Avolites T3 weighs just 3kg and the T3–Wing weighs 2.6kg.
