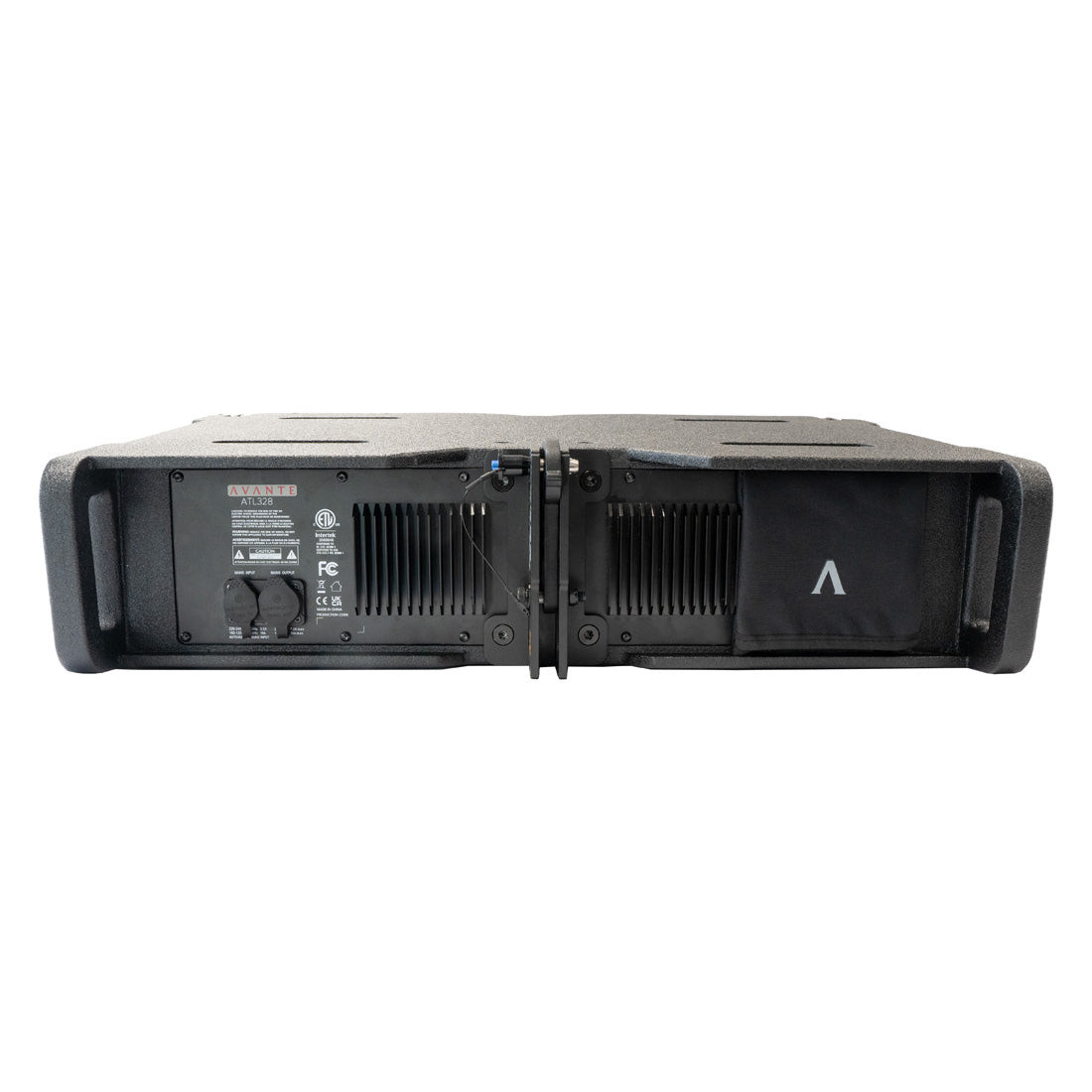

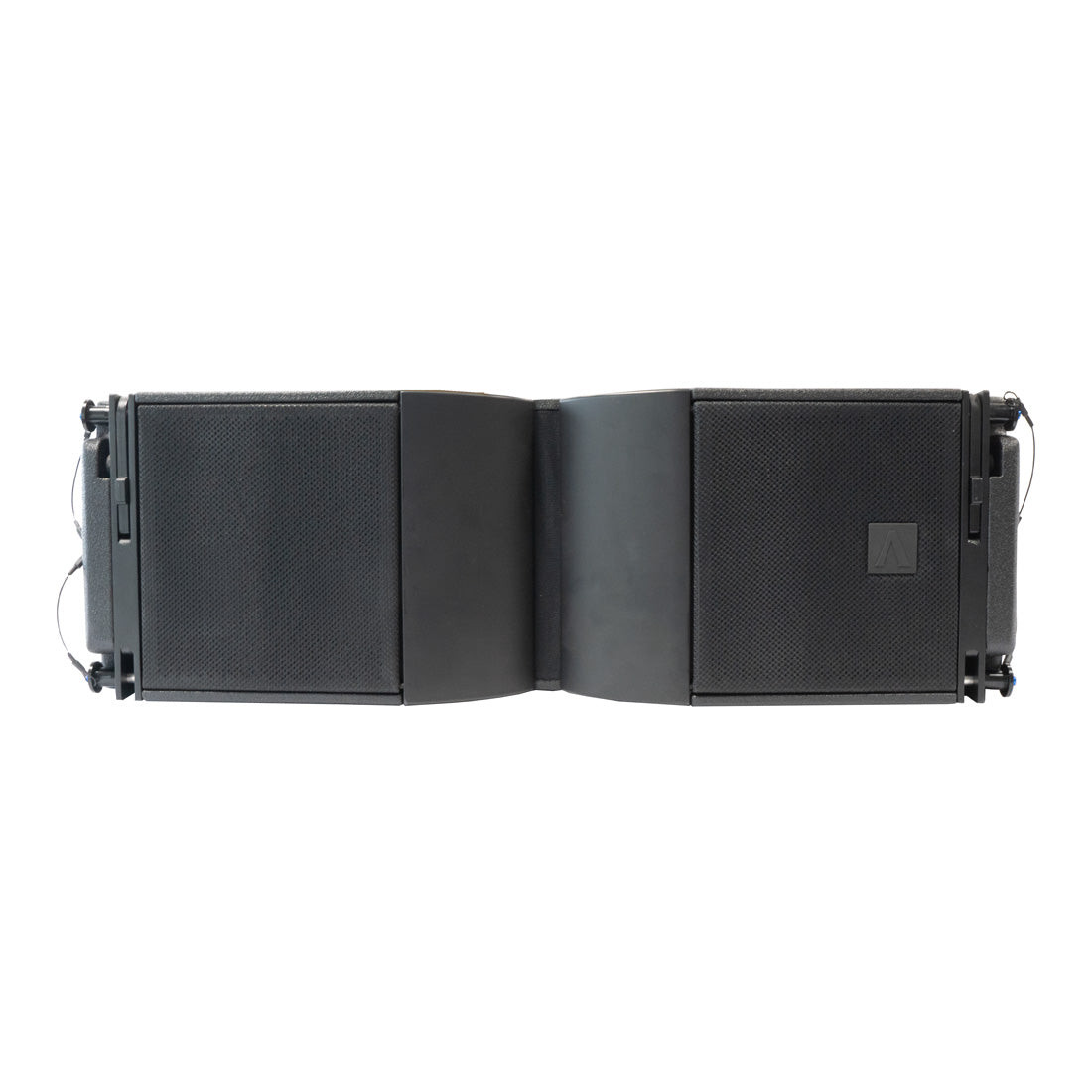

The Avante ATL328 AKRO 3-Way Active Line Array Module for Medium to Large Events (ATL328) from DJDeals.com is a professional 3-way active small-format line array engineered for medium to large events. It pairs ideally with the Avante Audio AKRO ATS218 subwoofer. Each module features twin high-output neodymium 8-inch low-mid drivers and one coaxial MF/HF neodymium compression driver coupled with a precision medium-format waveguide.
The 3-way discrete Class D + switching power amplifier delivers 1800W total peak power with a universal PFC power supply for high headroom and minimal distortion. German-made proprietary DSP runs at 96kHz sample rate with multiband compressor, peak limiter, and linear minimum-phase FIR filters. The ATL328 also supports full digital AES/EBU connectivity via RJ-45 and Milan AVB networking for centralized system control using AKRO-Command software (Mac and Windows).
In a complete system, the ATL328 delivers a full-range frequency response of 70Hz–20kHz (-6dB) with a wide 110° horizontal dispersion pattern. The EZ-Deploy full articulating precision rigging system enables fast, precise array configuration, while the Baltic birch plywood cabinet with polyurea coating provides touring-grade durability for demanding live event applications.
Avante ATL328 AKRO 3-Way Active Line Array Module Features:
- 1800W Peak Power. 3-way discrete Class D + switching power amplifier with universal PFC supply for high headroom and minimal distortion.
- Milan-Certified Networking. Fully Milan AVB-certified for digital audio networking via locking RJ-45 connector and AES RJ-45 signal I/O.
- German-Made DSP. 96kHz proprietary DSP with multiband compressor, peak limiter, and linear minimum-phase FIR filters for pristine audio processing.
- Coaxial MF/HF Driver. 4-inch (MF) + 2.55-inch (HF) coaxial neodymium driver on custom waveguide for precise high-frequency coverage.
- Dual 8-Inch Neodymium LF. Two 8-inch neodymium low-mid drivers with 2.5-inch voice coils for powerful, clear low-mid reproduction.
- 110° Horizontal Dispersion. Wide coverage pattern ideal for medium to large venues with broad audience areas.
- EZ-Deploy Rigging. Full articulating precision rigging system for fast, accurate array angle configuration.
- AKRO-Command Compatible. Full system control and monitoring via AKRO-Command software for Mac and Windows PC.
- Touring-Grade Construction. Baltic birch premium plywood, durable black polyurea coating, and rain-resistant amplifier cover.
Avante ATL328 AKRO 3-Way Active Line Array Module Specifications:
- Speaker Type: 3-Way Active Dual 8-inch Line Array Module, Milan-certified
- Frequency Response: 70Hz–20kHz
- Peak SPL (one unit): 132dB
- LF Driver: 2× 8-inch neodymium, 2.5-inch voice coil
- MF/HF Driver: Coaxial 4-inch (MF) + 2.55-inch (HF) neodymium on custom waveguide
- Crossover Frequencies: 600Hz / 3.5kHz
- Horizontal Directivity: 110°
- Amplifier: Class D, 4-channel (2 LF, 1 MF, 1 HF), 1280W Peak
- DSP: German-made proprietary, Milan-certified, 96kHz sample rate

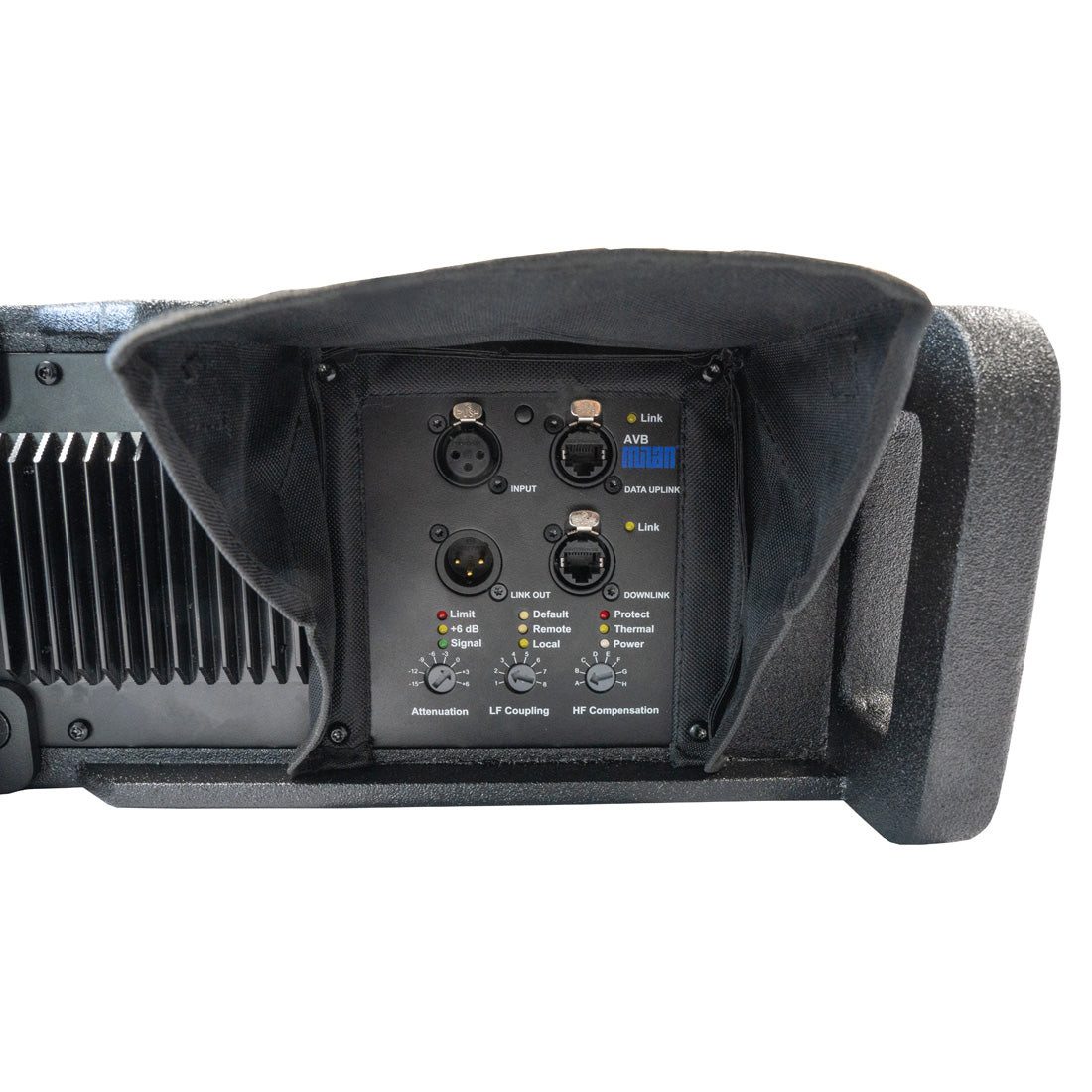

- Signal I/O: 3-pin XLR (analog), AES RJ-45 Milan (digital)
- Network: Locking RJ-45 In/Out for Milan control network
- Power: 220–240V, 50/60Hz, 8A or 100–120V, 50/60Hz, 16A (auto-range)
- Power Linking: 3 cabinets @ 120V/20A; 6 cabinets @ 208V/20A
- Cabinet: Baltic birch premium plywood, black polyurea finish
- Handles: 4 integral handles (1 on each side, 2 on back)
- Rigging: EZ-Deploy full articulating precision rigging system
- Dimensions (L×W×H): 27.4″ × 18.3″ × 9.1″ (696 × 465 × 232mm)
- Weight: 61.7 lbs / 28.0 kg
Avante ATL328 AKRO 3-Way Active Line Array Module for Medium to Large Events Documents:
Avante ATL328 AKRO 3-Way Active Line Array Module for Medium to Large Events (ATL328) Owner’s Manual
