ADJ MDF2 Magnetic Dance Floor System (Single Panel)

ADJ MDF2-9SYS Magnetic Dance Floor System

Name: ADJ MDF2-9SYS Magnetic Dance Floor System
Brand: American DJ
SKU: 36304
Price: 3220.48 USD
Availability: InStock
Rating: 5 (1 reviews)

0 reviews | 0 questions

$3,389.98Add to Cart to Save 5% on this Product!

The ADJ MDF2-9SYS Magnetic Dance Floor System is an 3 x3 RGB LED Magnetic Dance Floor Panel System featuring 24VDC Input, DMX and Remote control, 160 Degree viewing angle, ABS base material, 600 x600mm panel size, and weighs only 26 pounds.

UPC: 818651026771 Categories: Effect Lighting, Lighting Packages, Linear LED Lights & Panels

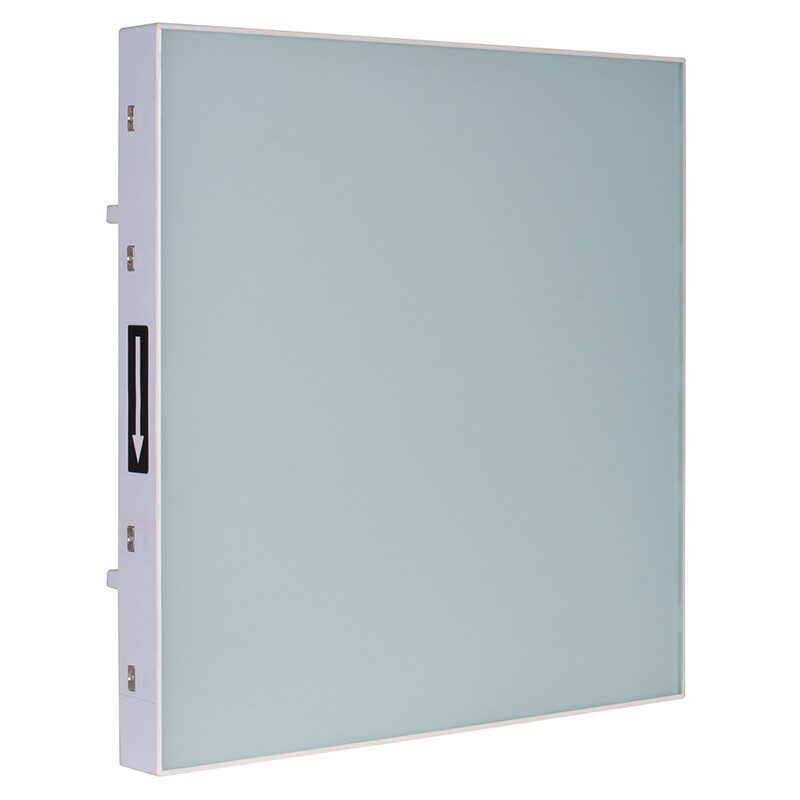

ADJ’s MDF (Magnetic Dance Floor) System is a robust, lightweight and extremely easy to setup portable LED dance floor solution. Each ADJ MDF2-9SYS Magnetic Dance Floor System panel (MDF2) features an array of 3-in-1 RGB LEDs that cause its opaque tempered glass surface to glow intensely in an almost limitless selection of vibrant colors. With surface dimensions of 600mm x600mm (23.62” x23.62”) and a low height of just 70mm (2.76”), the individual panels weigh just 26.57 lbs. (12.05 kgs.) yet can support a weight of up to 300 kgs/m2 (61.5 lbs/ft2) more than enough for a dense crowd of party goers!

The ADJ MDF2-9SYS Magnetic Dance Floor System panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (MDF2PR) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 or 40), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.

Thanks to its easy-to-setup design, the ADJ MDF2-9SYS Magnetic Dance Floor System is ideal for temporary event use by mobile entertainment and event production companies. However, ADJ MDF2-9SYS Magnetic Dance Floor System is also suitable for permanent installation in nightclubs and bars looking to create a uniquely eye-catching dancefloor. The panels and accessories are all available individually, but can also be purchased in a complete pack of 9 panels (MDF433) complete with all cables, ramps and a flight case.

ADJ MDF2-9SYS Magnetic Dance Floor System Specifications:

Light Source: RGB 3-IN-1 LED
Input Voltage: DC 24V
Max Power Consumption: 15W
Input Signal: DMX512 (3-Pin XLR)
Control Mode: DMX512 Console, SD Controller (With DMX, Sound Control, Audio
Control and Remote Control)
DMX Channel Mode: 3, 5, 7, & 10 Channel Mode
Visual Angle: 160°
Brightness: High Brightness
Surface Material: Tempered Glass
Base Material: ABS
Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
Working Temperature: -4°~113°F (-20°~45°C)
Single panel Dimensions (LxWxH): 23.62″ x23.62″ x2.76″
Single Panel Weight: 26.57 lbs

ADJ MDF2-9SYS Magnetic Dance Floor System Package Includes:

9x MDF2 (RGB LED Magnetic Dance Floor Panel)
9x MDF2DR (Dummy Ramp)
16x MDF2FCB (Floor Connection Bracket)
4x MDF2CR (Corner Ramp)
3x MDF2PR (Power Ramp)
1x MDF2PSUX9 (Power Supply for 9 panels)
1x MDF2MPC16 (Ramp Power Cable, 16FT)
1x AC3PDMX15 (3-Pin DMX Cable, 15FT)
1x MDF2FC9 (Flightcase, for 9 Dance Floor Panels)
