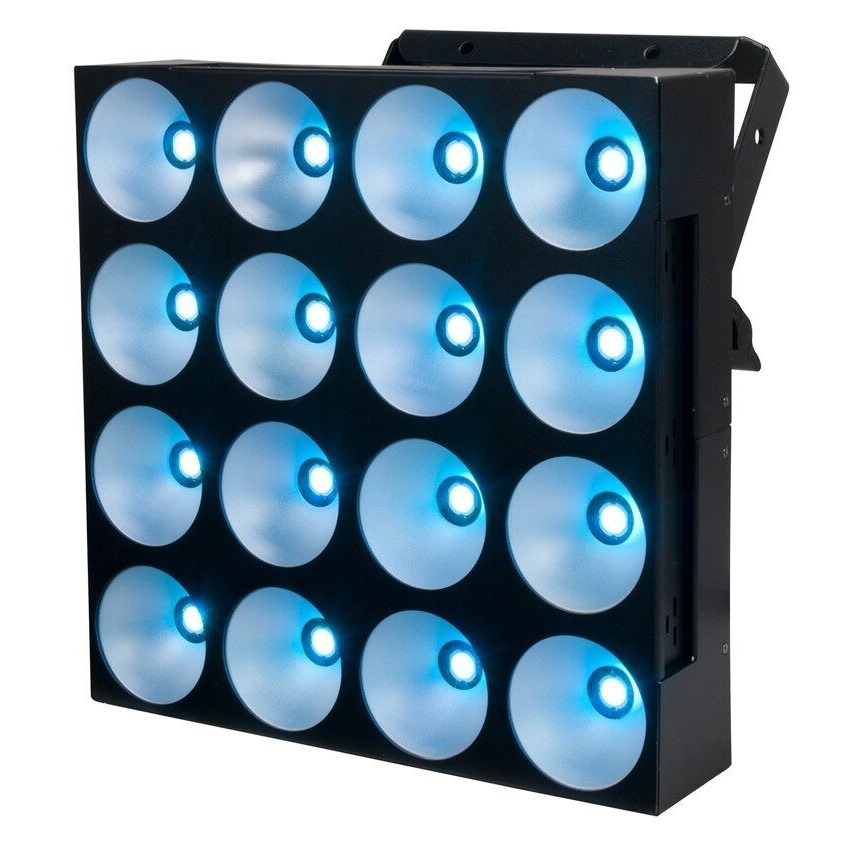

ADJ Dotz Matrix Wash/Blinder Light

Name: ADJ Dotz Matrix Wash/Blinder Light
Brand: American DJ
SKU: DOT294
Price: 1092.45 USD
Availability: InStock
Rating: 5 (1 reviews)

0 reviews | 0 questions

$1,149.95Add to Cart to Save 5% on this Product!

ADJ’s Dotz Matrix is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a super-charged, high output, wash fixture with smooth color mixing powered by sixteen 30W TRI COB LEDs. Dotz Matrix also has Pixel Mapping capabilities for stunning visual effects, and boasts a powerful 430 Watts with a massive 60 degree beam angle.

UPC: 819730010773MPN: DOT294 Categories: Effect Lighting, PAR & Wash Lights, Strobe & Blinder Lights

The ADJ Dotz Matrix has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, a 4-button DMX LCD display, PowerCon AC In/Out, 5 selectable Dim Curves for stage lighting, 4 Pixel Flipping options, and 5 DMX channel modes. Dotz Matrix may run in its stand-alone mode from built-in programs, sound actively, or from a DMX Lighting Controller.

ADJ Dotz Matrix Wash/Blinder Light Specifications:

• 4 x4 COB LED high output Wash/Blinder Matrix panel
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
• Use as Wash/Blinder or Pixel Mapped matrix for a stunning visual effect
• Great for Stage Lighting, Bands or Night Clubs
• 5 DMX channel modes: 3, 6, 7, 48 & 52 channel
• Individual Pixel controllable in 48 & 52 channel DMX modes
• 4x Pixel Flip options changes pixel orientation
• 4x Operational modes: Auto, Sound Active, Manual RGB Dimmer, Static Color, and DMX-512
• RDM Compliant (Remote Device Management)
• Built-In preset colors and programs
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0-100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• 60-degree beam angle
• 3 & 5-pin XLR chassis mount connectors for DMX linking
• PowerCon AC IN/OUT daisy chain power (up to 5 Dotz Matrix’s @ 120V and 9 Dotz Matrix’s @ 230V on one 20 amp circuit)
• Power Draw: 430W total (All LED’s @ Full)
• 4-button DMX LCD display
• Single yoke allows fixture to be mounted
• Fan Cooled
• Light Source: 16x 30-Watt COB TRI LEDs (RGB: 3 in 1)
• Auto sensing power supply: AC 100V/60Hz-240V/50Hz
• Dimensions (LxWxH): 13.75” x6.75” x14.75”/ 345 x170 x370mm
• Weight: 18 lbs./7.8 kgs.

Weight	24 lbs
Dimensions	18 × 18 × 8 in
