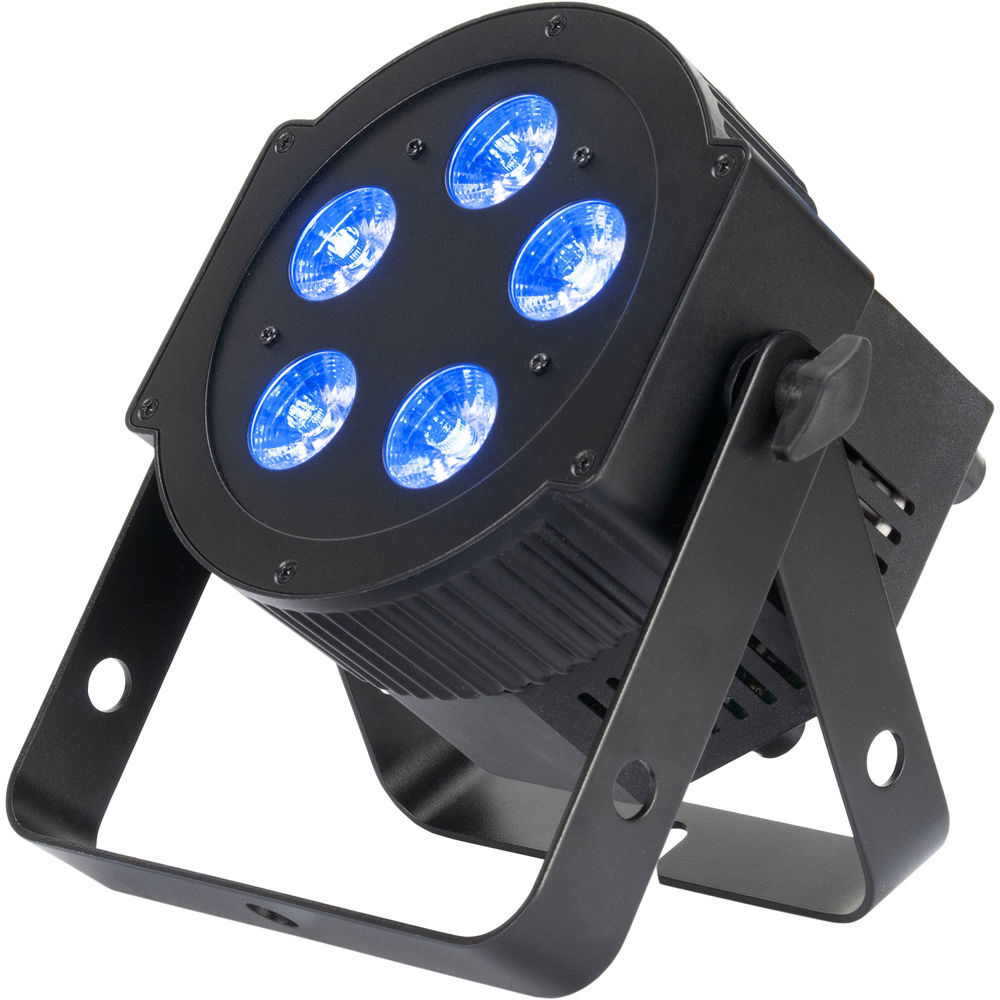

The ADJ 5PX HEX 5×12-Watt 6-in-1 LED PAR Light from DJDeals.com is a versatile LED Par fixture with 5 x12-Watt, 6-IN-1 HEX LEDs in an all-metal housing. With a 30-degree beam angle, users may produce wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting a venue or used as a stage wash.
ADJ 5PX HEX 5×12-Watt 6-in-1 LED PAR Light professional features include: 4 DMX modes (6, 7, 8, & 12 channel), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 8 units together via the fixtures built-in powerCON In/Out power connectors. Users may choice 3-pin or 5-pin DMX connectors
The ADJ 5PX HEX 5×12-Watt 6-in-1 LED PAR Light is compatible with the Dotz Par RF, easy-to-use, wireless RF remote (Sold Separately). Alternatively, the fixture may be operated via a DMX lighting controller or the unit’s built-in programs.
ADJ 5PX HEX 5×12-Watt 6-in-1 LED PAR Light Features:
• Intelligently designed, patent pending power & DMX Ins/Outs sit sideways so the unit can be set flat on the ground or set inside truss
• Great as an architectural wall wash or for performance stages where traditional stage lighting emit a lot of heat onto performers
• Scissor yoke + rubber feet allows fixture to be hung or set on the ground
• Flicker Free operation (No flickering on camera)
• Smooth RGBAW + UV color mixing
• Metal white exterior housing
OPTICAL:
• Light Source: 5 x12-Watt RGBAW + UV LEDs (Red, Green, Blue, Amber, White & UV)
• LED life rated at approximately 50,000 hrs.
• Beam angle: 30-degree
CONTROL:
• 4-button, DMX digital display on rear panel
• Compatible with Dotz Par RF wireless remote control (sold separately)
• 7 Built-In Programs
• 63 built-in Color Macros
• 4 DMX Modes: 6, 7, 8, & 12 channel
• 5 Operational modes: Static Color Mode, RGBAW & UV Dimmer Mode, Program Mode, Sound Active Mode and DMX Controlled
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• LED pulse and strobe effect
• Electronic Dimming: 0-100%
CONNECTIONS:
• Data linkable via 3-pin or 5-pin DMX connections
• Daisy chain power from powerCON In/Out connection
• With Wired Digital Communication Network
ELECTRICAL:
• Multi-voltage operation: AC 100-240V, 50/60Hz (powerCON In/Out)
DIMENSIONS:
• Dimensions (LxWxH): 4.5” x8.25” x8.75”/ 114 x208 x222mm
• Weight: 5.8 lbs./2.6 kgs
WHAT’S IN THE BOX:
• powerCON power cable
• Scissor yoke
APPROVALS:
• ETL Approved
• CE Approved
ADJ’s HEX Series of LED pars equipped with 6-in-1 HEX LEDs have proven extremely popular for a wide variety of applications from up-lighting to truss-warming, stage washing to dancefloor illumination. However, here at ADJ, we’re committed to constantly developing the product range to meet the needs of the customers. Therefore, following suggestions from existing users, we’re pleased to be able to introduce the new and improved PX HEX Series of LED pars.
The new “PX HEX” Series units feature professional-caliber powerCON input and output connections in place of the IEC sockets found on the original HEX Series models. This allows for a reliable power connection that locks securely into place and won’t pull out accidentally. It also allows for easy integration into professional stage rigs that are setup with powerCON power distribution.
In addition, all of the “PX HEX” Series fixtures are fitted with both 3-pin AND 5-pin XLR input and output sockets for DMX control and master/slave operation. This adds to the units’ flexibility, meaning that they can be easily integrated into either a 3-pin or 5-pin DMX setup and are therefore ideal for use by production and rental companies.
Comprised of four different models, the “PX HEX” Series offers fixtures suited to a range of different uses, all equipped with versatile HEX LEDs. Combining red, green, blue, amber, white and UV elements, they allow for a vast palette of mixed colors to be generated. These include both cool and warm white, as well as UV-infused colors such as hot pink, lime green and electric blue. The inclusion of the UV element also means that the fixture can create the classic ‘black light’ effect that causes white and neon-colored surfaces to glow brightly.
The 5PX HEX features five 12W HEX LEDs housed in a compact unit that is ideal for truss warming, up-lighting and stage washing. Despite its small dimensions of 4.5” x8.25” x8.75”/ 114 x208 x222mm (LxWxH) and low weight of 5.8 lbs./2.6 kgs., it has a robust metal construction making it ideal for temporary event production as well as fixed installation. The 5PX HEX PEARL model, meanwhile, offers the same LED power and casing design but with a striking all-white exterior.
For applications where increased lighting output is required, the 12PX HEX features a total of twelve 12W HEX LEDs. It generates a powerful beam of colored light that is ideal for washing stages and dancefloors as well as up-lighting large venues. Measuring 5.34” x9.8” x11.7”/136 x249 x297.5mm (LxWxH) it is still relatively compact and with a weight 8.7 lbs./4 kgs it is easy to lift and carry. As with the smaller model, an all-white version is also available the 12PX HEX PEARL which is ideal for white-themed venue installations as well as for temporary use at events such as weddings.
With all of the benefits that LED-powered fixtures offer over conventional pars, the “PX HEX” units are ideal for a wide variety of uses. Their LEDs have an operational life of approximately 50,000 hours, meaning that lamp replacement is a thing of the past and they are therefore perfectly suited for installation in hard to reach locations. Despite their powerful light output, the units also generate very little excess heat. This means they are ideal for illuminating stages while keeping the temperature comfortable for performers.
All four of the models are supplied with flexible scissor yokes, which can be used either as variable-angle floor stands or hanging brackets, as required. The units also benefit from ADJ’s intelligently-designed and patent-pending ‘sit-flat’ design, which means that they can be placed directly on the floor for up-lighting duties, with power and data connections located conveniently on the side of the casing.
With a 30-degree beam angle, all of the PX HEX pars are ideally suited for both up-lighting and stage illumination, generating a soft-edged pool of light. Adding further flexibility, the 12PX HEX and 12PX HEX PEARL are both supplied with a removable gel frame that can be used to hold diffusion filters (sold separately) if a wider beam angle is required.
Each of the four models is fitted with a 4-segment LED menu display and four corresponding push buttons, which allow easy access to five different operating modes: Static Color (63 built-in color macros), RGBAW+UV Dimmer, Program (7 built-in programs), Sound Active and DMX-controlled (6, 7, 8 or 12 channel). The fixtures can also be controlled remotely using ADJ’s DOTZ PAR RF wireless control (sold separately).
Offering the incredible color mixing potential of HEX LEDs combined with a wide variety of useful features and robust, intelligently-designed cases, the PX HEX Series pars are ideal for any situation where powerful washes of color are required. Offering professional features, including powerCON and 3-pin & 5-pin XLR sockets, these new and improved models are sure to prove even more popular than the original P HEX Series.
