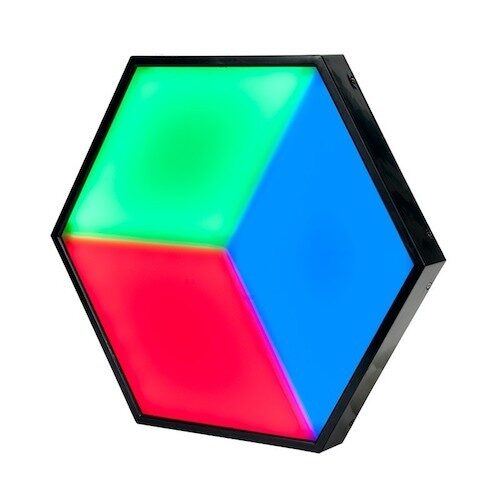

The ADJ 3D Vision Plus Hexagonal RGB LED Panel Kit is designed to be used in modular configurations. Each panel is divided into three segments in such a way as to create a three-dimensional appearance, with separate RGB color mixing per segment and six pixel configurations. The panel can be used in isolation or linked with additional panels at any of its six sides to create a large 3D-effect surface with unlimited shapes and configurations, for clubs, event spaces, on DJ facades, and more.
The 3D Vision Plus features 72 (3-in-1) RGB (red, green, blue) LEDs, which are covered with a frosted, white acrylic panel to diffuse the light and provide a wide 180° viewing angle. The unit offers a standalone mode with automated programs such as Sound-Active and Auto Run. Effects include color strobing and 0-100% electronic dimming. For full remote control of all features, the unit can also be operated using the DMX mode with a choice of three channel modes. A 4-button menu system and digital display allows you to set and change the DMX address. The Master/Slave configuration lets you link multiple fixtures for synchronized color chases.
Multiple panels can be power- and data-linked via the powerCON and RJ45 ports, saving time on cable runs. Rigging is made simple with the easy-to-use, quick-release panel locks (available separately). Since 3D Vision Plus employs RJ45 DMX connectors, an RJ45 to 3-pin DMX adapter (available separately) is required. The unit can also be controlled via the EZ Kling interface (available separately) for Art-Net or Kling-Net protocol.
The 3D Vision Plus ships with an RJ45 data link cable, a powerCON power link cable, and a safety cable.
Features:
• Distinctive hexagonal-shaped LED panel is divided into three separate sections in a way that gives it a unique three-dimensional appearance.
• Safety hook on rear panel
• M10 thread on rear panel to connect a clamp to secure to a pipe
• Wall mount slots on rear panel
Specifications:
Light Source:
• 72 Pieces 3-in-1 RGB LEDs
• Beam Angle: 180 Degrees
Control:
• 3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control
• 3 DMX Channel Modes: 3, 9, and 13 Channel Mode
• Master/Slave Set Up
• 4-Button Menu with Digital Display
Connections:
• powerCON In/Out to daisy chain power
• RJ45 In/Out DMX protocol
Electrical:
• Input Voltage: AC 100-250V, 50/60Hz
Dimensions/Weight:
• Dimensions (LxWXH): 3.16” x15.93” x13.80” / 80.5 x404.7 x350.7 mm
• Weight: 6 lbs./ 2.74Kgs.
Approvals:
• ETL, ETLC, CE
Accessories (sold separately):
• 3D Vision PL: Metal panel brackets used to lock 3D Vision Plus panels together
• 3D Vision RB1: Metal rigging bar
• PLC3: 3-foot powerCON power link cables
• MPC10: powerCon power cord
• myDMX 3.0: DMX control software
• ACRJ453PFM: RJ45 to 3-pin male DMX adapter
Main power cable sold separately
