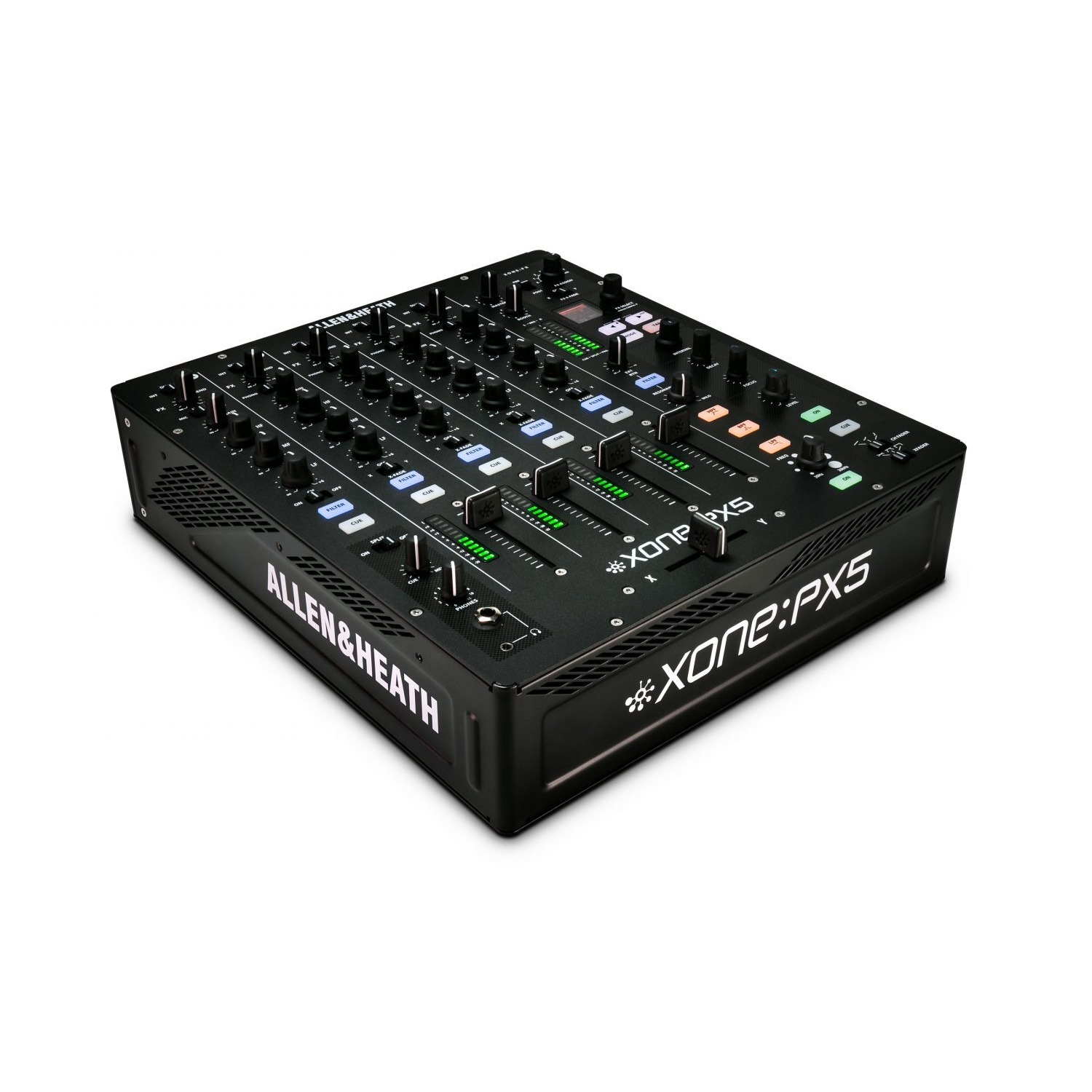

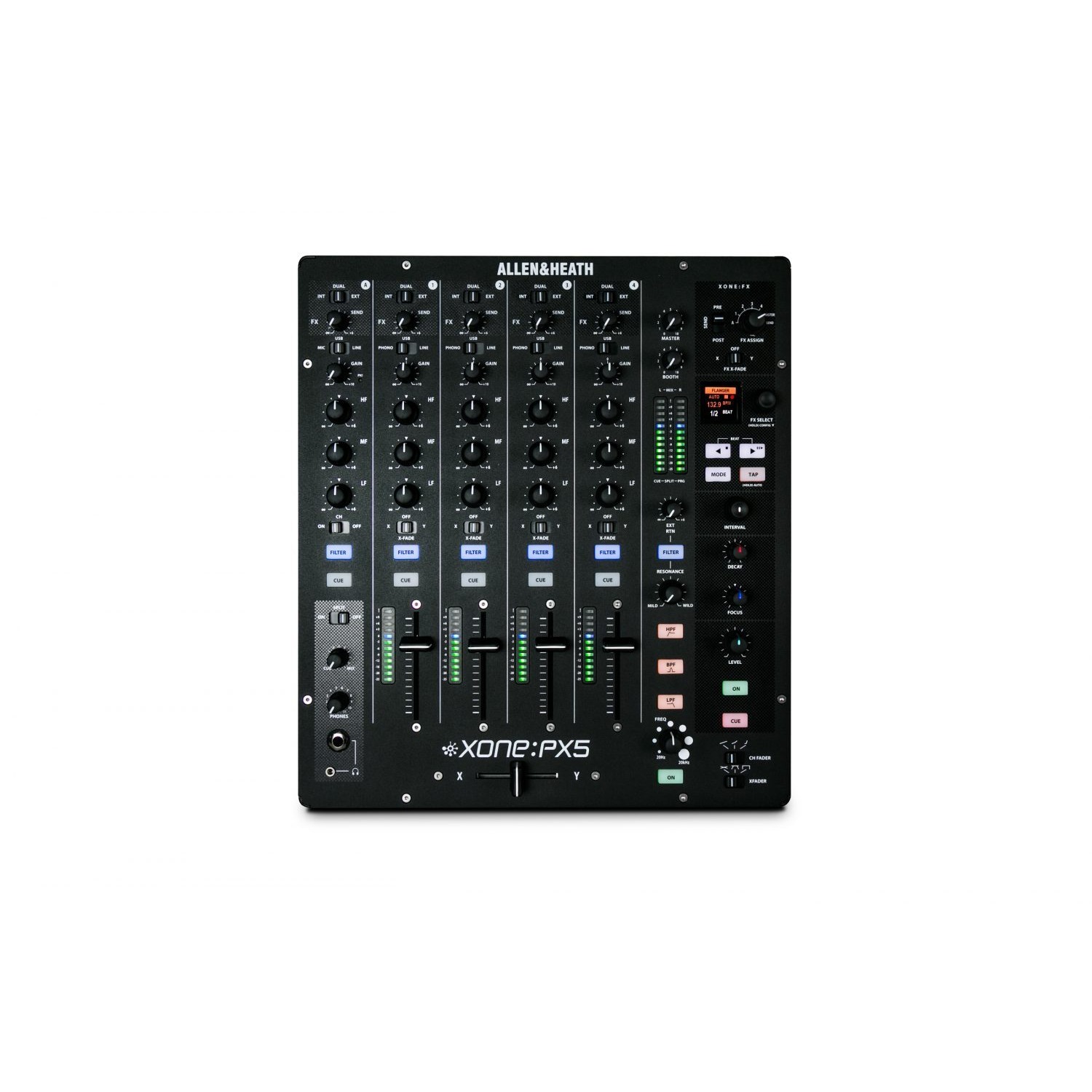

The Allen & Heath XONE:PX5 is a 4+1 channel DJ mixer with a built-in sound card offering professional quality in a simple, yet intuitive layout for professional DJs, serious home enthusiast and night clubs. The Allen & Heath XONE:PX5 features the XONE analog filter with resonance control, 3-band EQ, a replaceable VCA crossfader, and the X:FX send and return that incorporates any outboard FX unit. The Allen & Heath XONE:PX5 built-in FX technology offers new levels of manipulation with the XONE:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters, which are all assignable through simple hands-on control for fine-tuning the FX.
The Allen & Heath XONE:PX5 XONE filter includes high pass, band pass, and low pass filter selections, resonance control, and frequency sweep. Additionally, X:FX may be routed to the filter to add layers of FX and filtering. The crossfader offers three settings for blending and scratching styles and is compatible with a custom Innofader. The Channel A input features a microphone preamp and a 3-band EQ, but also doubles as an additional auxiliary input via stereo 1/4″ connectors. The mixer offers XLR main outputs with independent booth (1/4″) and record outputs (RCA), as well as a stereo master insert (1/4″).
The Allen & Heath XONE:PX5 incorporates a professional-quality 20-channel (10 in/10 out) USB audio interface for integration into digital DJ workflows, while the X:Link features plug-and-play connections to XONE:K series controllers for expanded MIDI control. The XONE:PX5 ships with a power cord.
High Quality Internal Soundcard
XONE:PX5 incorporates a high specification 20 Channel 96 kHz, 24 bit USB Soundcard, allowing it to be seamlessly integrated into digital DJ workflows
XONE:FX
XONE:PX5 features the XONE:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing
XONE Filter System
XONE:PX5 Foots filter includes HPF, BPF, LPF, resonance control and frequency sweep, plus the option to route the Aux channel and External Return to the filter
XONE: Sync MIDI Clock Engine
XONE:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via 1/4″ jack input connections (mono/stereo). XONE:PX5 can also send/receive MIDI clock information through the USB connection
X:Link
For the ultimate DJ setup, connect XONE:K series controllers to the XONE:PX5 over X:Link for hands-on control over your software, saving USB ports on your computer
4 + 1 Channels
On top of its four fully featured phono/USB/line channels, XONE:PX5 has a flexible microphone/aux channel with XLR and 1/4″ jack connectors and full 3-band EQ. If you don’t perform with mics, the additional inputs allow this channel to be used as an extra stereo music source or USB Return channel
Innofader Compatible
Upgrade to an Audio Innovate Innofader Pro2 crossfader (available separately) for ultimate performance. Always a popular choice for scratch DJs
Allen & Heath XONE:PX5 Specifications:
Type
Analog
Channels
4 + 1
Equalization
3-band/Total Kill (CH 1-4 + CH A)
Sound Card
USB Soundcard 20 Channel (10 in/10 out)
USB2/Class Compliant
24 bit/96 kHz
1 xMIDI IN
1 xMIDI Out
Inputs
Line Inputs: 4 xStereo RCA (CH 1-4), 2 x1/4″/6.35 mm TRS (CH A)
Mono/Stereo
Phono Inputs: 4 xStereo RCA (CH 1-4), LN/PH Switch for DVS
USB Inputs: 5 xUSB (CH 1-4 + CH A)
Mic Input: 1 xXLR
Outputs
Master Output: 2 xXLR (Balanced)
Master 2 Output: 2 xRCA (Unbalanced)
Booth Output: 2 x1/4″ TRS
Record Output: 2 xRCA (Unbalanced)
Master Insert: 2 x1/4″/6.35 mm TRS
MIDI Sync
MIDI Sync/Out: 1 x5-Pin DIN, DIN Offset Control
Sends/Returns
2 x1/4″/6.35 mm TRS Send
2 x1/4″/6.35 mm TRS Return
1 xLN/Hi-Z Switch
Effects
Internal XONE:FX: Yes
Hybrid FX Mode: Yes (Internal < Dual > External)
FX Send: 1 xPre/Post Selectable (CH 1-4 + CH A)
Filter
1 xVCF filter
HPF/BPF/LPF
Adjustable frequency and resonance
Assignable CH 1-4 + CH A + external return
Link
X-Link: 1 xRJ45
Headphone
1 x1/4″/6.35 mm
1 x1/8″/3.5 mm
Split cue monitoring
Faders
Channel Faders: 2.4″/60.0 mm- VCA (replaceable)
Channel Fader Curve: 3 types
Meters
Chanel Meters: 12 segment LED
Crossfader
X-Fader 1.8″/45.0 mm VCA (replaceable) (Innofader compatible)
X-Fader Curve Settings: 3 types
MIDI
MIDI Clock: Send and Receive
Start/Stop/Pause/Tempo Bend (-/+)
MIDI Assignable: Yes (MIDI CC/MIDI notes)
BPM
BPM Detection: Auto/Manual/Tap Tempo
Grounding Terminal
2
Headroom
20 dB
Power
100 to 240 VAC, 50/60 Hz
Consumption: 35 W max
Mains Adapter: 3-pin IEC socket with cable clamp
Fuse: 250 VAC T1AL 20 mm
Dimensions
(H xW xD) 4.3 x12.6 x14.8″/109.2 x320.0 x375.9 mm
Weight
11.5 lb/5.2 kg
