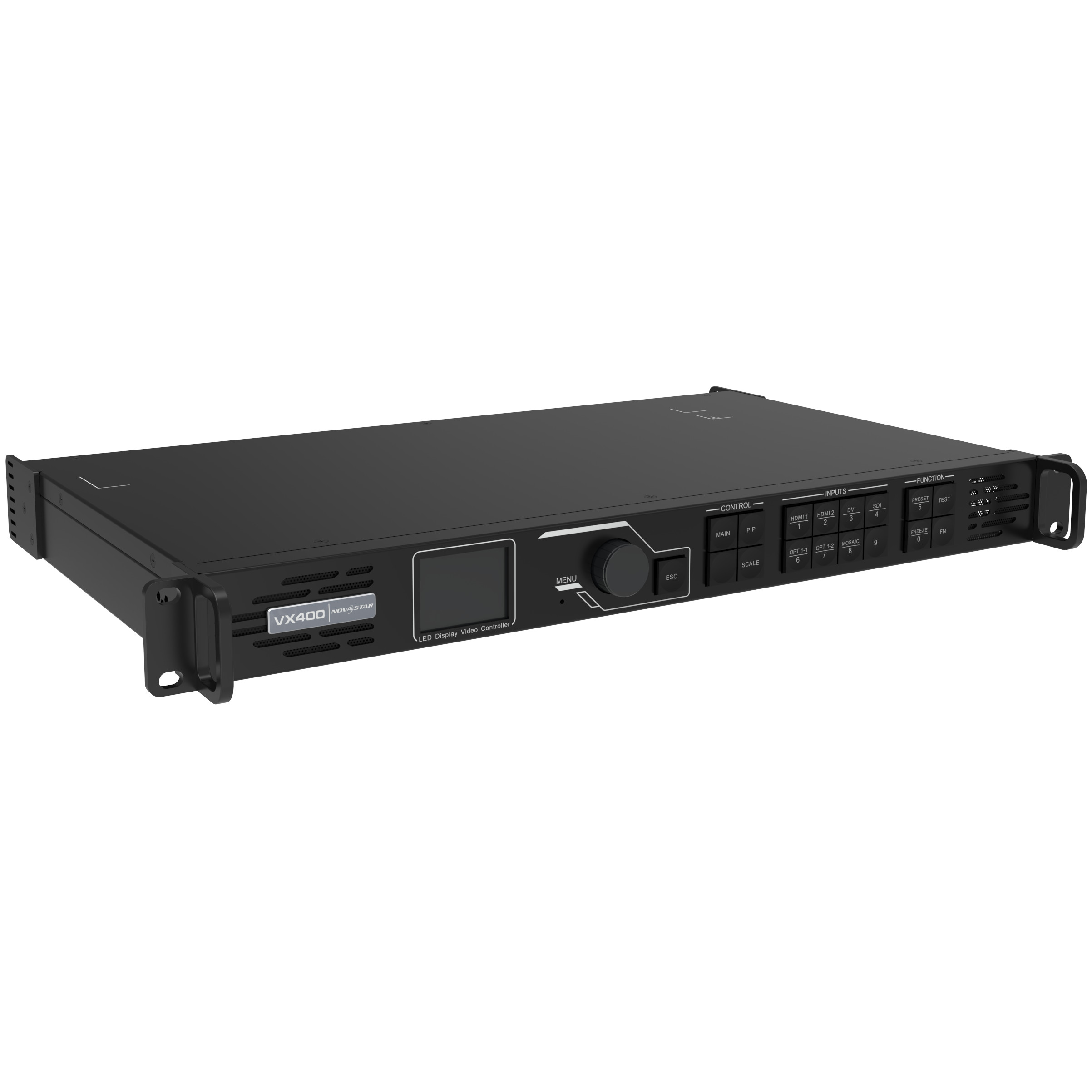

The ADJ Novastar VX400 LED Video Processor & Controller from DJDeals.com is the brain of the ADJ Vision Series LED video wall system. This all-in-one controller integrates video processing and LED panel control in a single 1U rack unit, supporting up to 2.6 million pixels across 4 Gigabit Ethernet outputs. Compatible with HDMI, DVI, VGA, and SDI inputs, and controllable via NovaStar’s NovaLCT and V-Can software.
ADJ Novastar VX400 LED Video Processor & Controller Features:
- All-in-One Processing. Integrates video processing and video control into a single box, eliminating the need for separate sending cards and processors.
- 4 Ethernet Outputs. Four Gigabit Ethernet ports drive up to 2.6 million pixels with maximum output width of 10,240 pixels and height of 8,192 pixels.
- Multiple Video Inputs. Accepts HDMI 1.3 (with loop), DVI (with loop), 3G-SDI (with loop), and optical fiber inputs for maximum source compatibility.
- Three Working Modes. Operates in Video Controller, Fiber Converter, or Bypass mode for flexible integration into different production setups.
- 2-Layer Output. Supports two adjustable output layers with independent size, position, and priority control for picture-in-picture and multi-source setups.
- Pixel-Level Calibration. Works with NovaLCT and NovaStar calibration software for brightness and chroma calibration on each individual LED for superior display uniformity.
ADJ Novastar VX400 LED Video Processor & Controller Specifications:
- Input Resolution: 1920 x 1200 at 60Hz
- Output Resolution: 1920 x 1200 at 60Hz
- Maximum Pixels: 2.6 million pixels; max width 10,240px; max height 8,192px
- Video Inputs: 1x HDMI 1.3 (loop), 1x DVI (loop), 1x 3G-SDI (loop), 1x optical fiber (OPT1)
- Outputs: 4x Gigabit Ethernet, 2x fiber, 1x HDMI 1.3 monitor
- Power: 100-240V AC, 50/60Hz; dimensions 482 x 275 x 44mm; weight approx. 4 kg.
ADJ Novastar VX400 LED Video Processor & Controller Documents:
ADJ Novastar VX400 LED Video Processor & Controller Owner’s Manual
