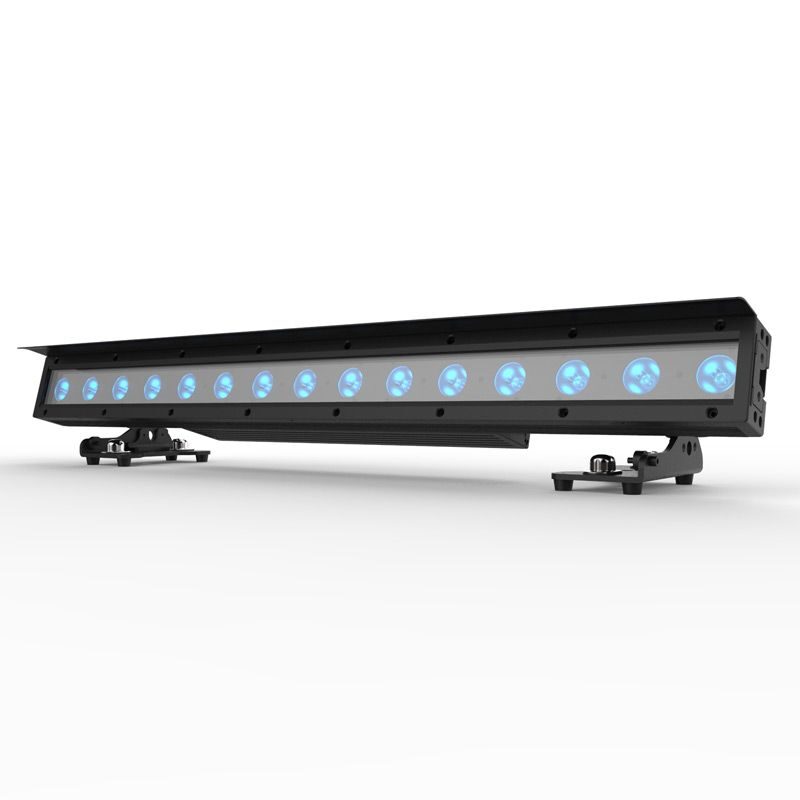

The ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 – RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements – dust, sand, moisture and liquids. It includes a removable diffusion filter to change the beam angle.
On the rear panel the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar features, IP65 rated, 5-pin XLR, DMX In/Out connections, and Seetronic IP65 rated, power locking In/Out connections to daisy chain power and data. Both the DMX and power connections are fitted with rubber protective covers. An OLED display with touch buttons helps to easily navigate the functions of the fixture.
The ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar is flicker free for film and broadcast, and has multiple DMX control modes and dimming modes.
ADJ is pleased to announce the immediate availability of the new ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar. Boasting powerful 6-in-1 HEX color LEDs, zone control and an IP65-rated enclosure, this versatile unit can be used both indoors and outdoors for a variety of applications ranging from festival stages to temporary architectural lighting.
A total of fifteen 12W 6-in-1 HEX color (RGBWA+UV) LEDs are spaced equally across the length of the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar. They allow the fixture to generate a maximum output of 14,541 lux measured at 1M (582 lux @ 5M) and create an even wash coverage with a 25-degree beam angle. The LEDs are grouped into five individually-controllable sections of three, allowing for the creation of color chasing ‘eye candy’ effects.
By mixing the six primary LED colors, the unit is able to generate an almost unlimited palette of shades and hues, including bold vibrant hot pinks, deep purples and lime greens that aren’t possible using lesser 3-in-1 and 4-in-1 LED-based fixtures. By blending the white and amber LED elements in varying degrees the fixture can also be used to generate white illumination in a variety of color temperatures making the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar suitable for lighting performers on stage either as a footlight, backlight or key light.
16-bit dimming allows for extremely smooth fades, while a choice of six different dimming curves allows the fixture to be configured for different applications. The LEDs are flicker-free, making the unit suitable for broadcast use and it is supplied pre-programmed with 63 color macros to aid programming.
With its robust all-metal design, the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar is suitable for all professional entertainment lighting applications, including installation, touring, rental and one-off event production. Its IP65-rating means that it can be used outdoors even in the rain or in environments that are likely to be dusty or sandy. It also means that, even if the fixture is used indoors, its LEDs and internal electronics are protected from dust, dirt and humidity, resulting in an extended operational life and reduced maintenance requirement.
the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar is supplied with a versatile heavy duty bracket, which can stand directly on the floor if the fixture is used for up-lighting or footlight duties, and features fixing points for two omega brackets to allow truss mounting. The bracket features a sure-lock system which locks at 10-degree increments preventing unwanted slipping and making it easy to ensure multiple fixtures are all set to precisely the same angle.
The fixture is supplied with an opaque diffusion filter which can be easily mounted above the LEDs simply by sliding it into a purpose-designed slot in the front of the unit. It is also supplied with an optional glare shield / hood, which prevents unwanted light spill when used as a footlight and can be easily installed on the top of the fixture using three thumb-tightening screws.
Offering a choice of 10 different DMX modes, ranging from 6 to 60 channels, the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar can be easily configured to match the level of control flexibility required and number of channels available. It is fitted with 5-pin DMX input and output sockets and a large OLED display screen on the rear allows for easy configuration and DMX addressing.
Despite its extremely tough construction, the unit weighs in at an easily manageable 20 lbs. / 8.9 kg. and has compact dimensions of 36” x 8” x 7.75” / 915 x 203 x 200mm. It is equipped with locking Seetronic power input and output sockets which can be used to link the supply for up to 6 fixtures at 120V (15 @ 240V) from a single power source. Both the power and DMX sockets are fitted with rubber plugs, which can be used to seal them from moisture when not in use. The sockets are also arranged on the back of the unit for easy linking between fixtures, with both power and DMX input sockets located at one side, while the corresponding output sockets are positioned at the other side.
“Following the success of ADJ’s 32 HEX Panel IP rectangular wash fixture, we’re pleased to introduce the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar as a complementary linear unit,” explains ADJ USA’s National Sales Manager, Alfred Gonzales. “With its IP65-rated enclosure, this flexible fixture is protected from dust, sand and moisture, making it suitable for outdoor applications as well as indoor events. It’s HEX LEDs mean that it is capable of generating an extremely wide collection of colors, while it’s zone control feature allows the creation of impressive color chasing effects. Equally suited to permanent installation, touring, rental and event production duties, the ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar is a truly versatile fixture that offers lighting designers lots of creative potential from a robust and reliable unit.”
ADJ 15 Hex Bar IP RGBWA+UV IP65 1M LED Light Bar Specifications:
Light Source:
• LED: 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
• Beam Angle: 25-degrees
• LUX: 14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
Features:
• IP65 rated – protects from dust, sand, moisture and liquid (Temporary outdoor use only)
• All metal construction with black housing
• Includes heavy duty bracket
• Sure-lock locking bracket system (securely locks every 10-degrees)
• Flicker free for film and broadcast
• 63 Built-in Color Macros
• Linear variable white temperature control
Construction:
• Display: OLED display with function buttons
• Data In/Out: Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
• Power In/Out: Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)
• Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
• All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
Control:
• Multiple DMX channel modes
• Built-in internal programs
• 5 individually controlled sections with Zone Control
• 0-100% Dimming + smooth 16-bit Dimming
• 6 Dimming Curve Modes• Control Mode: DMX512, RDM (Remote Device Management)
• With Wired Digital Communication Network
Electrical:
• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)
• Power consumption: 130W max
Dimensions & Weight:
• Dimension (LxWxH): 36” x 8” x 7.75” / 915x203x200mm
• Weight: 20 lbs. / 8.9 kg.
What’s In The Box:
• 1x Seetronic IP65 locking power cord
• 1x Frost/Diffusion Filter
• 1x Glare Shield
• 2x Omega Brackets
Optional Accessories:
• ELB15L20 – 20-degree frost filter (sold separately)
• ELB15L60 – 60-degree frost filter (sold separately)
• ELB15L2100 – 100-degree frost filter (sold separately)
Approvals / Rating:
CE Certified / IP65 (Temporary outdoor use only)
