The ADDERLink INFINITY 3000 ALIF3000 delivers real-time access to unlimited physical and virtual machines (VM) from a single human-machine interface (HMI). The new KVM receiver brings VM access to the multi award-winning ADDERLink INFINITY range allowing users to seamlessly and securely switch between virtual and physical machines directly from their user workstation – without the need to rip and replace existing KVM infrastructure. Built on the successful Intel X-86 microprocessor architecture the ALIF3000 delivers pixel-perfect picture quality, audio and USB 2. 0 to single or dual screens over a single 1GbE link. Dual-head, video, audio and USB 2. 0 over a single link:
The ALIF3000 can deliver one 2560 x 1600 or two 1920 x 1200 screens over a single fibre connection. Unlimited access to physical and virtual machines:
Users can seamlessly take control of unlimited sources in both a virtualized and physical environment, from a single workstation using standard VDI protocols. Pixel-perfect image:
The ALIF3000 has pixel-perfect image quality over 1Gb ethernet links. Backwards compatibility:

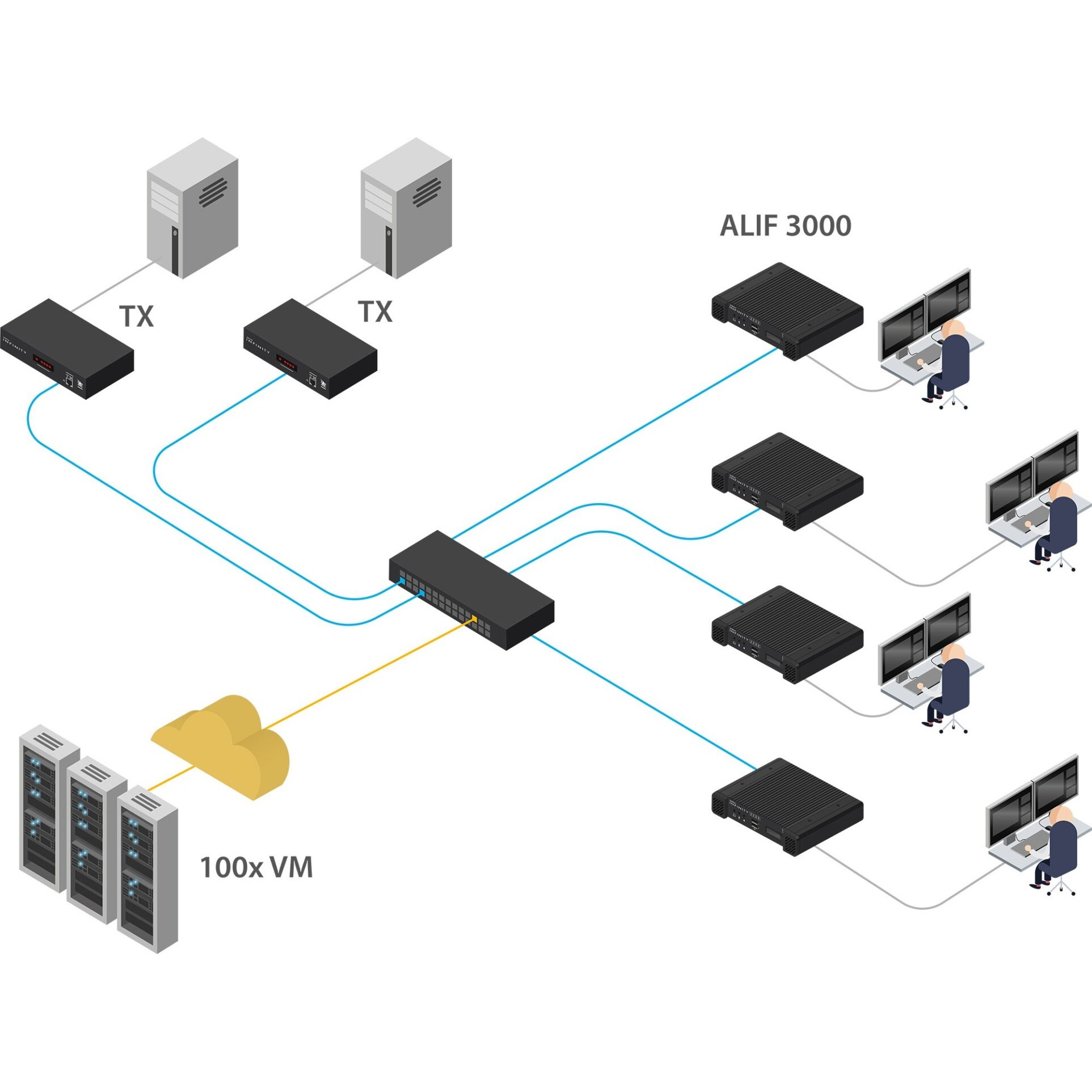

The ALIF3000 can be added to an existing ADDERLink INFINITY matrix to deliver real-time KVM and virtual machine access – with the security, reliability and flexibility benefits of traditional IP KVM solutions. Digital KVM matrix: By the addition of ADDERLink INFINITY Management system (A. I. M. ) you can turn multiple point to point extenders into a matrix system that allows any workstation to connect to any computer connected to the network. See the A. I. M. datasheet for details. Security:
The ALIF3000 is a closed and hardened KVM system with virtual machine access. Unauthorized software cannot be loaded onto the units without administrator approval. Plug and Play:
The ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software. Adder’s USB True Emulation:
USB2. 0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers. Performance: Built on Intel’s successful X-86 architecture, the ALIF3000 is a robust and resilient solution designed for use in the most challenging scenarios.
Features
- Dual-head, video, audio and USB over a single fibre connection
- Unlimited access to virtual and physical machines
- Pixel-perfect, color accuracy
- Bi-directional analog audio
- Adder’s USB True Emulation for fast switching
Specifications
- Power
- External Power: 12VDC, 5A
- Typical Power Consumption: 20W
- BTU: 68. 24BTU/hr
Physical
- Dimensions (LxWxH): 8. 3 x 8. 5 x 1. 6 Inches
- Weight: 4 lbs
- Materials: Aluminium and Steel Construction
Remote Unit – Reciever (RX)

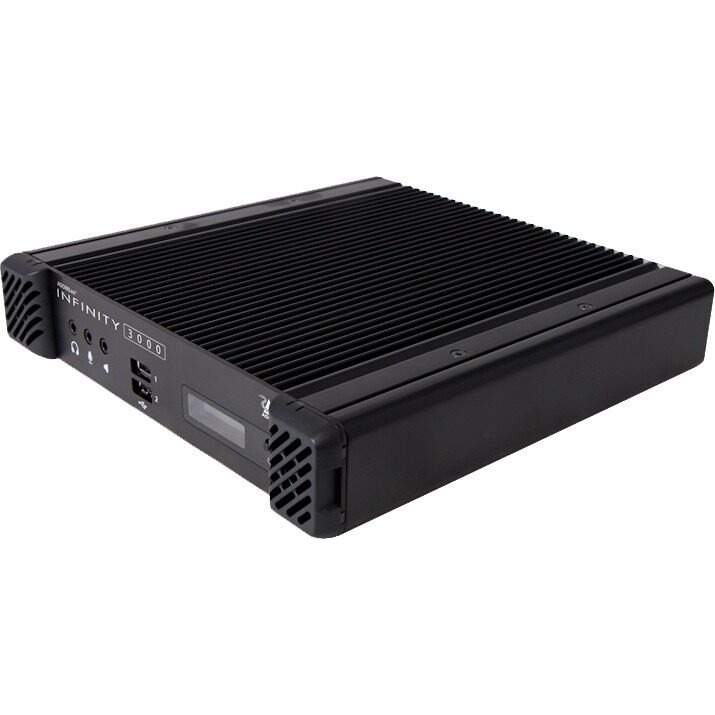

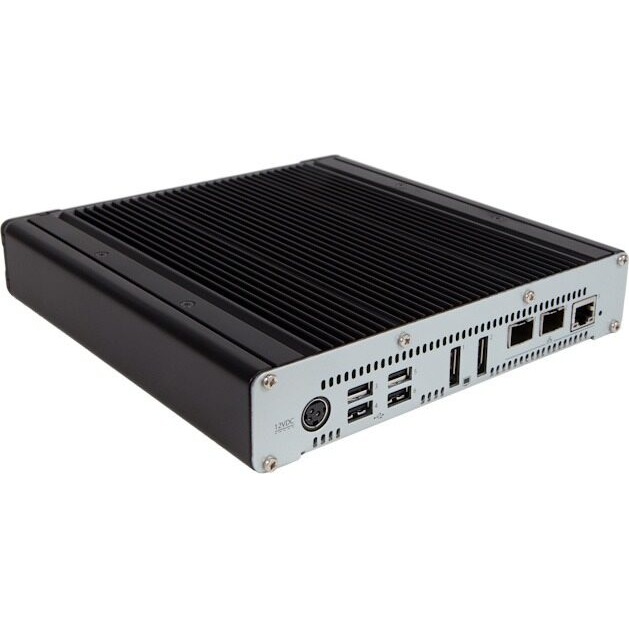

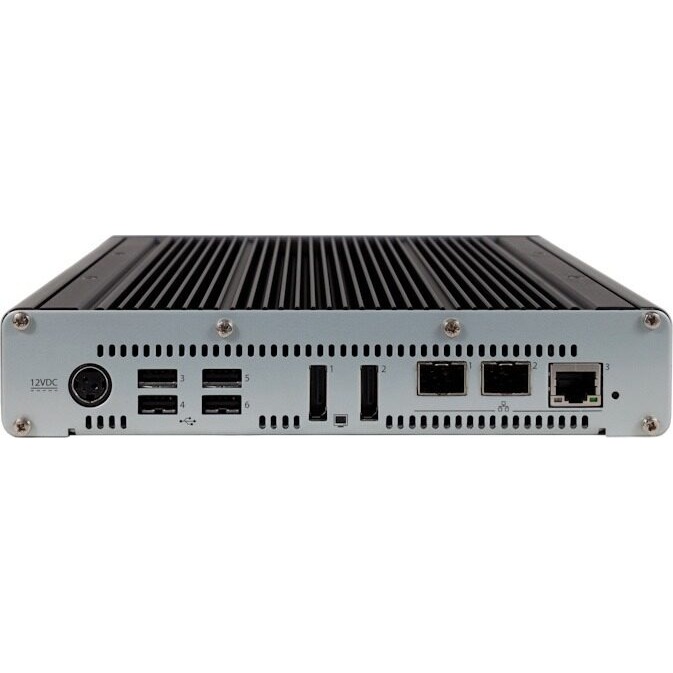

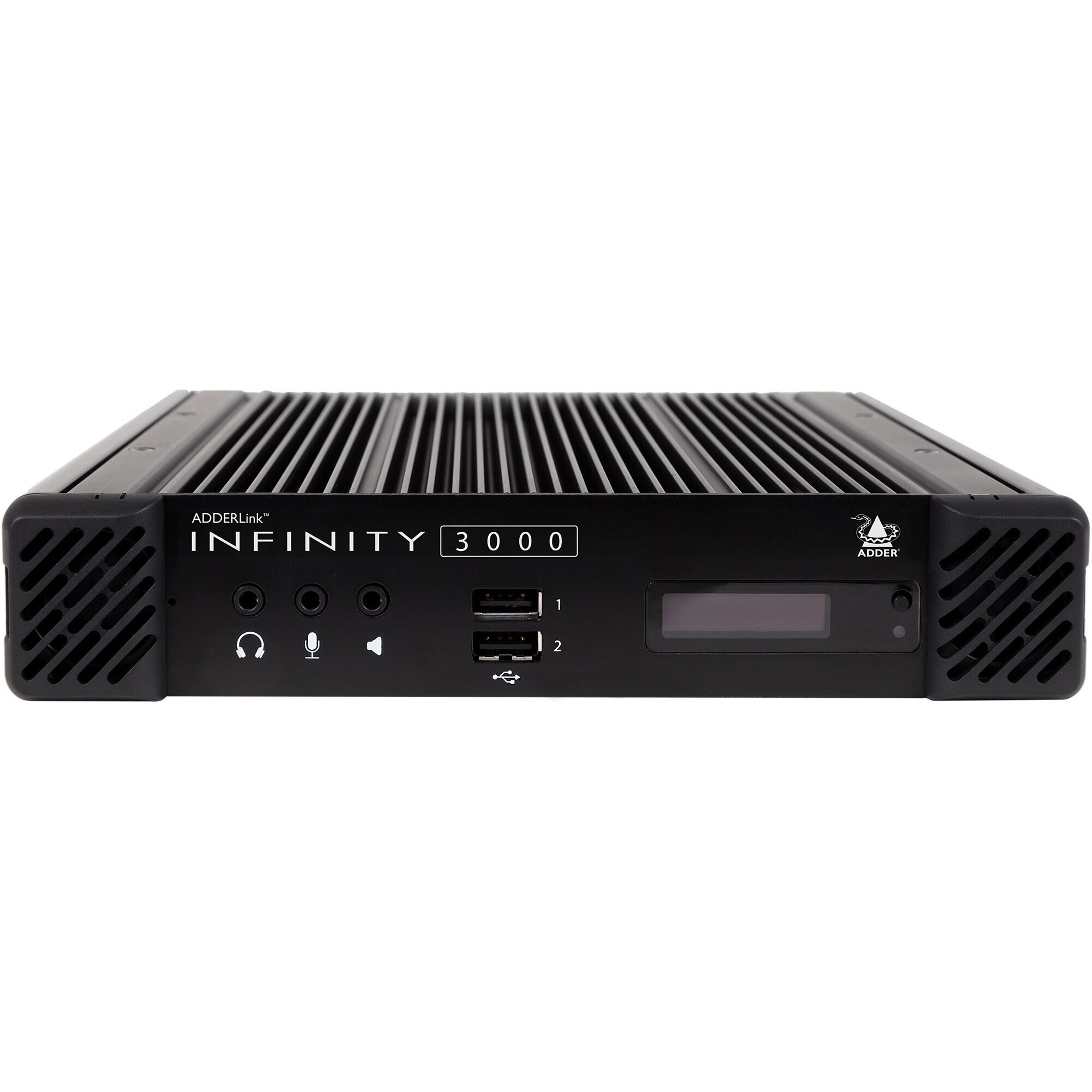

- Desk: 2 x display port, 5 x USB type A, 3 x 3. 5mm audio jack sockets
- Ethernet: 1 x 8p8c (RJ45), 2 x SFP+ cages
- Power: 3 pin Kycon socket
USB
- 4 ports of USB 2. 0 with USB True Emulation to support keyboard, mouse and touch.
Video
- Supports 1 x 2560 x 1600 up to a maximum refresh rate of 60Hz
- Can decode all streams from ADDERLink INFINITY transmitter devices: ALIF100T ALIF1002T,
ALIF2002T, ALIF2020T to a maximum of one 2560 x 1600 or two 1920 x 1200 screens. - The ALIF3000R will only decode 1 x 2560×1600 or 2 x 1920×1200 from an ALIF4021T. Please note the
ALIF4021T must be bandwidth limited to 1GbE per link.Audio
- Analog Line in/out 2 channel 16bit 48KHz 1V RMS in / 1V RMS out
Ethernet
- 1GbE (10/100/1000 support)
Operating/Storage Conditions
- Operating Temperature: 0 to 104 F
- Storage temperature: 32 to 140 F
- Storage and Operating Relative Humidity: 10-90% non-condensing
- Altitude: < 2000m
Item Includes
- 1x ALIF3000R
- 1x Power Adapter with Locking Connector
- 1x 1GbE Copper SFP Module
- 1x Information Wallet
