AdderLink INFINITY 2020R Network Dual-Monitor DVI Extender Receiver, DVI and USB Extension Over Gigabit Ethernet, Gigabit Copper (RJ45) or Fiber (w/ SFP) Combo Port, Max Resolution is 1920×1200.
The ADDERLink ALIF2002R INFINITY Dual Receiver is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the ADDERLink INFINITY Range. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining a pixel perfect desktop experience.
Part of the ADDERLink™ INFINITY range, the ADDERLink™ INFINITY Dual 2020 is a high performance KVM solution that enables you to isolate critical computing hardware in a secure and temperature controlled environment. Configurable as a single link or dual head, this extender provides an at-the-PC experience across up to 6.21 miles/10km assuring the digital video you receive is the same as the digital video leaving the remote computer, with no loss of compression and minimal lag. The Dual 2020 comes with a choice of single mode or multimode fiber modules to suit your specific application (sfp sold separately). This KVM extender can be used as a point to point extender or can be integrated into a wider matrix system when combined with the ADDERLink INFINITY Manager (AIM).
Please Note: The ALIF2020R receiver requires at least one ALIF2020T transmitter to operate (sold separately).
Adder ALIF2020R-US INFINITY Dual DVI Extender Receiver Features:
- Perfect digital video: uncompressed video extension and pixel perfect digital video up to 24 bits per color at a maximum of 1920×1200 over 60Hz with real time control
- Digital Stereo Audio: digitally delivered crystal clear audio across the network
- Distribution: DVI, USB, audio and bidirectional RS232 across up to 6.2 miles/10km
- Power redundancy: the units can detect whether the network is in operation and will utilize the second network port is failure detected
- EDID management: Extended Display Identification Data (EDID) enables the remote system to exactly mirror the date coming from the source monitor
- Plug and Play: the ADDERLink INFINITY range is delivered in a zero config state so they work as soon as they are connected, without the need for drivers or software
- Robust yet lightweight: small form factor, rack mountable device
- USB True Emulation: USB 2.0 enables connection to any USB human interface device from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers
Adder ALIF2020R-US INFINITY Dual DVI Extender Receiver Specifications:
- Hardware compatibility: All computers with DVI-D, USB, audio, RS232 – requirement dependent.
- DVI-D – Digital Visual Interface (digital only): The system supports two Single Link DVI-D resolutions to a maximum of 1920 x 1200 @ 60Hz.
- USB 2.0 with class control: Supports USB2.0 devices (low, full and high speed). Security feature allows the blocking of non HID devices. Isochronous devices are not supported (e.g. USB audio or video devices).
- Digital stereo audio: The system transfers analog stereo audio (Line In/Line Out) via digital signaling between any transmitter/receiver pair. Additionally, the audio output of any transmitter can be multicast to many receivers.
- RS232: RS232 can be passed between the units to a maximum baud rate of 115,200. RS232 is a point to point connection technology and cannot be multicast.
- Software compatibility: All known operating systems
- Peripheral connections receiver (RX):
- 2 x DVI-D
- Audio 3.5mm in, audio 3.5mm out
- 4 x USB type A
- RS232 9-pin D-type
- 1 x 8p8c and 1 x SFP for ADDERLink INFINITY network connections.
- Physical design:
- 1U compact case, robust metal construction.
- 198mm/7.92″ (w), 44mm/1.76″ (h), 150mm/6.0″ (d)
- Weight – 1.1kg/2.7lbs.
- Power:
- 2.5mm DC jack (power adapter included),
- 100-240VAC 50/60Hz, 0.8A, input to power adapter.
- 5VDC 20W output from power adapter.
- Operating temperature: 0 to 40°C / 32 to 104°F.
AdderLink Infinity (ALIF) dual 2020 is an IP-based high performance KVM (Keyboard, Video and Mouse) extender that forms part of the ALIF matrix solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, whilst maintaining a pixel perfect desktop experience.
- Dual-head (dual-monitor), single-link DVI configuration
- 1920 x 1200 @ 60Hz (24 bits per color) maximum resolution with minimal lag
- Flexible solution: from point-to-point extender to an infinitely extensible matrix used for IT administration or broadcast
- Unlimited extension via swappable SFP Modules:
- 330ft (100m) extension distance on single CATx
- 1,640ft (500m) to 6.21mi (10km) extension over fiber
- Unlimited extension via IP network or by chaining units
- USB 2.0 with Emulation and class control: for faster keyboard and mouse switching plus support for USB mass storage, tablet, touch and more
- Delivers uncompressed spatially-lossless video & digital stereo audio with option to compress video to minimize bandwidth usage
- Built-in security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication)

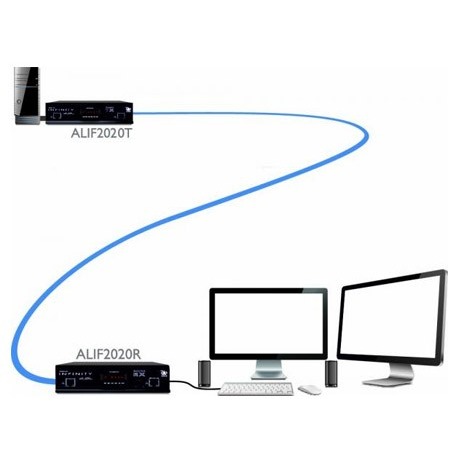

Example Diagram
Features & Benefits
Perfect digital video, real time control
Using a spatially-lossless encoding system, with 1:1 pixel mapping, AdderLink Infinity provides pixel perfect and color accurate video with no artefacts. The digital video you receive is the same as the digital video leaving the remote computer.Single CATx cable or fiber with immunity from interference
Using standard IP technology means you have the choice of a single structured cable (CATx) or fiber connection. The result is that you achieve reliable links without interferance. The AdderLink Infinity dual 2020 also offers the option of up to 10km distances with fiber.Unlimited extension distances
Extension distance is not limited to a single 100 meter cable length – If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters. The units are also fitted with SFP cages to accept fiber optic transceivers which enable much greater extension distances.Support for MacPro (Dithered Video)
Some graphics cards use a technique called dithering to give the appearance of a deeper color depth than is actually the case. As a result, dithering can significantly increase the normal video data rates. ALIF2002T has a feature called Magic Eye which supports dithering without allowing it to degrade overall link performance.USB 2.0 with class control
Enables connection of USB devices from mice and keyboards through to graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For applications where security is of high importance, the system has the ability to disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.EDID management
Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.Plug and Play
AdderLink Infinity extender devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.Redundant network operation
The units are able to detect whether the network is in operation and can automatically change to its second network port if it detects a failure.AdderLink Infinity Matrix
With the addition of AdderLink Infinity Management system (A.I.M.) you can turn multiple point-to-point extenders into a truly scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network. See the Adderlink Infinity Matrix data sheet for details.
