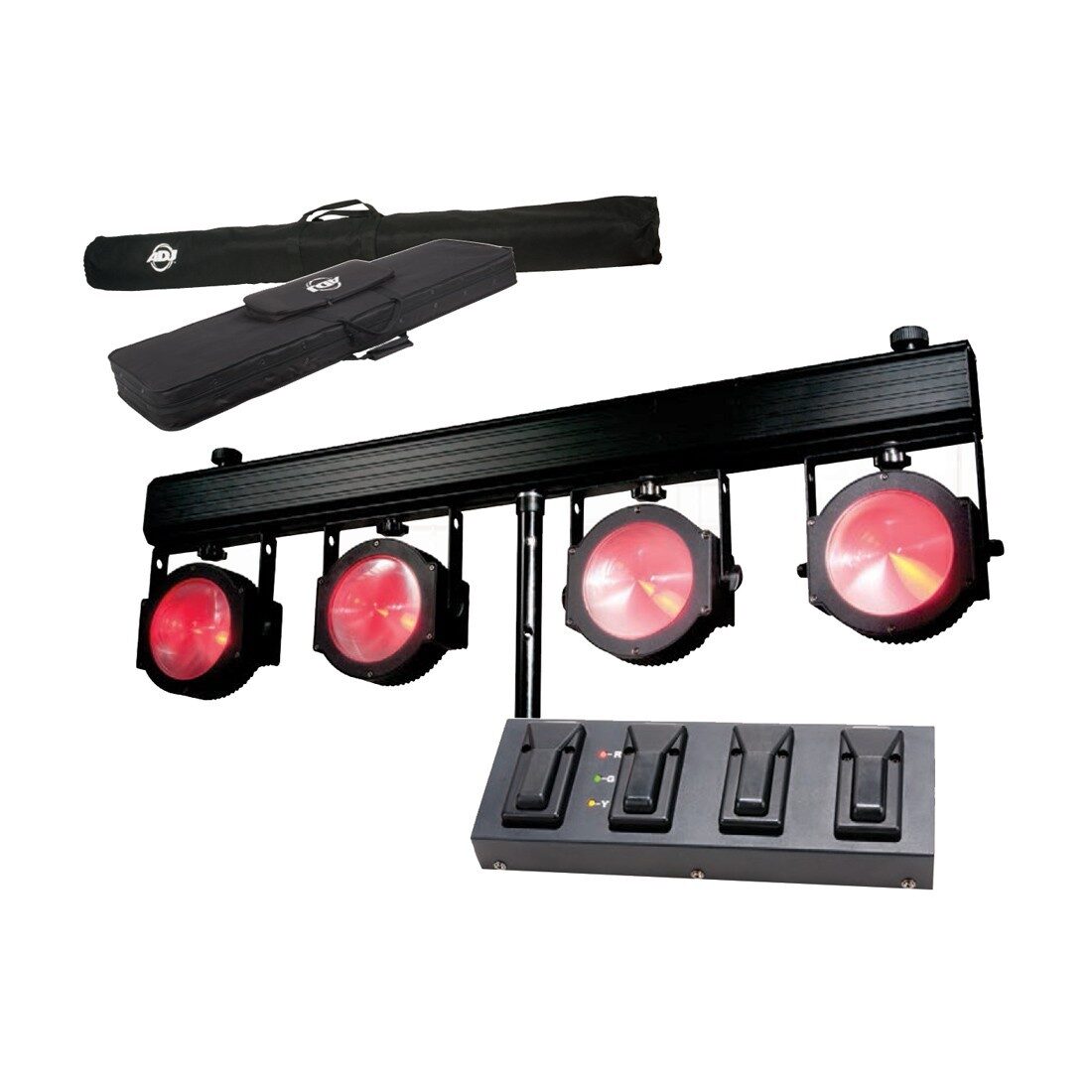

The Eliminator Lighting Dotz TPar Sys Plus from DJDeals.com is a portable stage lighting wash system designed for smaller live stages, nightclubs and events. The system includes four adjustable LED pars, a lighting stand, foot controller, RF remote control and transport bags.
The Eliminator Lighting Dotz TPar Sys Plus is a portable all-in-one wash lighting system that employs C.O.B. (Chip On Board) Tri-color LEDs to deliver seamless color mixing, without color shadows. From immersive wash lighting to captivating pixel mapping, pulse, and strobe effects, this system is designed for illuminating smaller size events such as live performances on stages, weddings and parties offering an unforgettable lighting experience.
Engineered for reliability and portability, the Dotz TPar Sys Plus is constructed with top-quality materials, boasting 50,000-hour rated LEDs, ensuring durability and flicker-free performance. It’s easy to set-up, operator and take down. This portable lighting system includes four adjustable COB LED Par Wash fixtures, a foot controller, lighting stand, RF remote control, stand bag, and a soft case for the entire system.
With versatile operation modes – auto run, sound active, color macro, dimmer, and full DMX control – it adapts to any scenario. Unleash your creativity effortlessly. Elevate your stage, nightclub, or mobile production to new heights.
Eliminator Lighting Dotz Tpar Sys Plus Specifications:
System includes:
• 4x COB LED Par Wash Fixtures
• 1x Foot Controller
• 1x Lighting Stand
• 1x RF Remote Control
• 1x Stand Bag

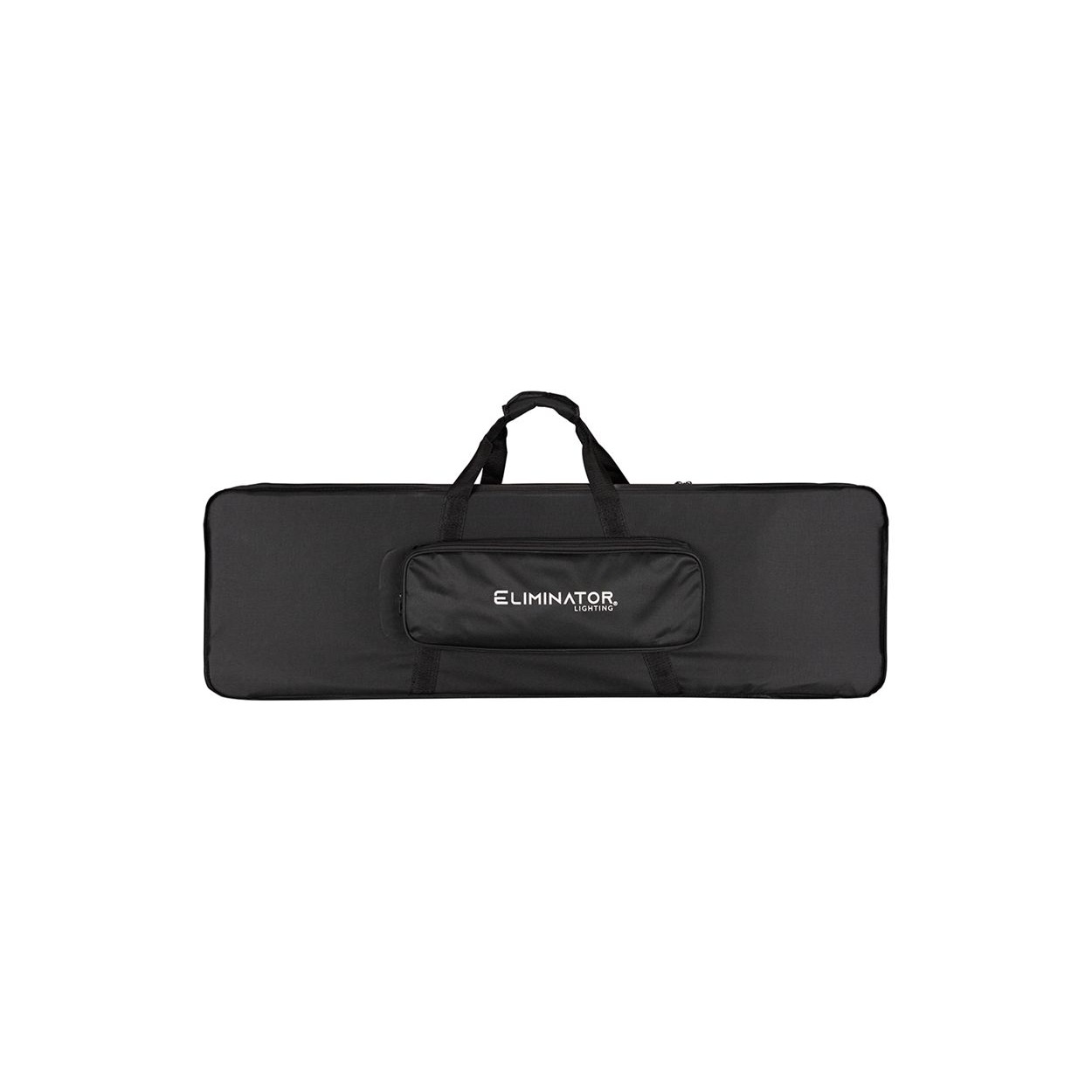

• 1x Soft case for lighting system
Source:
• Light Source: Each fixture has 1x 30-Watt TRI Color COB LEDs
• LUX @ 3M: 1345
• Long Life LEDs (Rated at approximately 50,000 hrs.)
• Beam angle: 90-degree
Features:
• COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color and no color shadows
• Smooth RGB Color Mixing (fast or slow color change operation)
• Great for Stage Lighting, Bands, Night Clubs & Mobile Entertainers
• Emits less heat on performers on stage as opposed to conventional stage lighting
• RF Remote Control control up to 25 meters
• Refresh Rate: 3.6KHz
Control:
• Digital DMX Display with 4-button menu for easy navigation
• 4 Operational modes: Sound Active, Auto Run, Built-In Programs, & DMX-512
• Stand Alone or Primary/Secondary Configuration
• Pixel Flip option changes pixel orientation
• 14 Built-in Programs
• 5 DMX Channel modes: 3, 5, 9, 12 and 18 channels
• Strobe & Pulse LED Effect
• Electronic Dimming: 0-100%
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Foot Controller Features: Mode, Black Out and Program Change
• With Wired Digital Communication Network
Connections:
• 3-Pin DMX In/Out
• IEC In and IEC out to daisy chain power
• 2x power plugs on rear to plug in other lighting fixtures (120V = Edison, 230V = Shuko)
• 5-pin DMX In to connect the foot controller
Electrical:
• Multi-voltage operation: AC 100V-240V 50/60Hz (IEC Input)
• Power Draw: 144W Max (entire system)
Dimensions & Weight:
• Dimensions (LxWxH): 39.5” x 12.75”x 3.25”/ 1000 x 320 x 82mm
• Weight: 35 lbs./ 16 kg. (Fixture Bar, Stand & Controller)
• Maximum stand height: 9 feet
What’s Included:
• Includes 25-degree beam angle lens kit
• Includes hardware to mount two lighting fixtures on top of the light bar
• 5-pin DMX cable to connect the foot controller to rear of the light bar
• Power Cord
Approvals / Ratings:
• CE Certified
