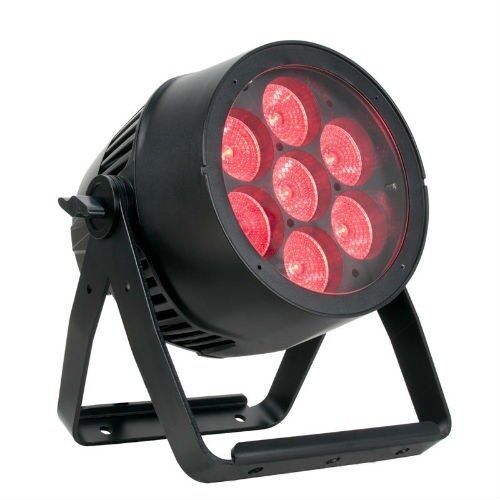

The ADJ 7PZ IP from DJDeals.com is a heavy duty, metal IP65 outdoor rated LED Par with motorized zoom and ADJ’s WiFLY EXR wireless DMX built-in. It features seven 15W quad (4-IN-1 RGBW) LEDs with 64 built-in color macros. There are 5 dimming curves plus smooth 0-100% electronic dimming. With 5 operational modes, 4 DMX channels modes and 4-button menu with function display, the 7PZ IP has a varied of control options. The zoom range is 5 ~ 50-degrees.
ADJ 7PZ IP Features:
• IP65, outdoor rated, LED Par with Zoom + WiFLY EXR Wireless DMX
• 64 built-in Color Macros
• Motorized Zoom
• Variable beam angle (5 ~ 50-degrees)
• Electronic Dimming: 0-100%
• Scissor yoke allows fixture to be hung or set on the ground
• 5 Dimmer Curves
• Flicker Free Operation
• LED pulse and strobe effect
• WiFLY EXR Wireless DMX (up to 2,500 ft./760M (open line of sight)
• 4 DMX Channel modes: 5, 7, 8, or 12 channel modes
• 5 Operational modes: RGBW Dimmer Mode; Auto Run; Color Fade; Static Color Mode; and DMX Controlled
• Run all night No duty cycle
ADJ 7PZ IP Specifications:
• 7 x15-Watt QUAD (4-in-1 RGBW) Red, Green, Blue & White LEDs, rated at approximately 50,000 hrs.
• 4-button DMX menu display on rear panel
• Linkable via 3-pin IP cable (In/Out)
• powerCON TRUE1 AC IN/OUT outlets on rear to daisy chain power (up to 15 units)
• Seatronic IP connections for DMX & power
• Power Draw: 128W total (All LEDs @ Full On)
• Multi-voltage operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 10.5” x13.75” x15”/270 x350 x380mm
• Weight: 25 lbs./11 kg.
Optical
• Light Source: 7 x15 Watt Quad (RGBW) LEDs
• LED Life Expectancy: 50,000 Hrs
• Beam Angle: (5 to 45-degrees)
• Refresh Rate: 1.8KHz
Technical Features
• Compatible with ADJ’s WiFLY Protocol
• Strobe (electronic)
• 64 built-in Color Macros
• 5 Operational Modes: Color Change Mode; Color Fade Mode; Auto (Program Run) Mode; Sound Active Mode and DMX-512 Mode
• 4-button LED Display on rear panel
• Electronic Dimming 0 100%
• Flicker Free
• WiFLY EXR DMX Range: 2,500 feet /700M (line of site)
• Wifly On/Off
• Dual bracket yoke allows fixture to be hung or set on the ground
Connections
• Power Input: powerCON True1 AC
• Power Pass through: powerCON True1
• Data: 3 Seatronic IP connection
• With Wired Digital Communication Network
Control
• 12 DMX Channel Modes
• 16 Selectable WiFLY Address Channels
Electrical
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 128W
• Power draw 220V 50Hz: 128W
Physical
• Dimensions (LxWxH): 10.5” x13.75” x15”/270 x350 x380mm
• Weight: 25 lbs/11 kg.
• Metal Black Housing
• IP 65
Whats Included
• powerCON True1 Edison Cable (1M)
• Manual
