NATIVE INSTRUMENTS MASCHINE MUSIC PRODUCTION STUDIO
MASCHINE, Native Instruments' brand new groove production studio is the next milestone in NI history. The unparalleled integration of hardware and software found only in MASCHINE is your launching pad for creating pattern-based music with an incredibly fast and fun workflow.
The first of three whopping announcements from Native Instruments to arrive to Gearwire studio through the old news-pipe was the release of MASCHINE at Winter NAMM 2009. MASCHINE is a modern groove production studio that must be screamed when its name is spoken! Easing and speeding the processes of beat creation and arrangement, MASCHINE dream teams an advanced soft sequencer and sampler with a heavily functional controller, capped off with fluid workflow.
Designed with drum machines and grooveboxes in mind, MASCHINE's step sequencer handles everything from spontaneous beat making to focused multi-timbre arrangements. It combines familiar step sequencer operation with realtime polyphonic recording.
The MASCHINE controller included with the system is almost like a limb of the software program, adding the tactility of real instrumentation. It contains 16 pressure-sensitive drum pads which were built to provide both excellent response and mighty durability. These pads, which illuminate to display visual sequences, are joined by eight rotary encoders, a wealth of buttons and two high-res displays, meaning your computer mouse and keyboard can sit these sessions out. Everything you need to control MASCHINE is right there on the control surface. It's such a nice surface I bet you wish you could control any MIDI compatible music gear with it. Well guess what . . . YOU CAN!
With a high-resolution sample engine under the hood, MASCHINE is a versatile virtual instrument that accurately represents intricate drum kits, percussion loops and multi-sampled polyphonic instruments. Automatic sample mapping, beat slicing and note repeat sweeten the deal. MASCHINE's realtime recording and resampling capabilites let you take any signal, external or internal, and capture, map, sculpt and transform it without interrupting musical flow.
Even if your sound library is a bit slim, MASCHINE will fatten it up with virtual shelves full of drum and instrument sounds that cover a wide range of modern and electronic-dependent styles. There are about 10,000 individual sounds overall, so you've got a lot to work with. A browser that works with categories and concise metadata brings this overwhelming amount of samples to an acceptable level of whelming.
Having first dipped their toes in the hardware-manufacturing pool some years ago with products such as Kore and Guitar Rig, Native Instruments have announced what looks to be their most extensive hands-on product yet. Maschine is part-hardware, part-software, the main part of which is a controller that connects to a Mac or PC via a USB cable. This controls a piece of software that has a variety of features designed to appeal to both fans of the classic drum machines and grooveboxes of the ’80s and ’90s, and ultra modern sound-manglers alike.
The controller has 16 touch-sensitive trigger pads, which have polyphonic aftertouch and LED backlighting. These control samples assigned in the software, and can be set to run in step sequencer mode, or as simple, playable pads. They can also be set to control other functions, by using modifier keys. A suite of 20 effects, including filters and delays, are built into the software, and a pair of LCD screens on Maschine’s hardware controller feed back parameter information, while a bank of eight rotary encoders enable the user to tweak settings without touching the mouse.
Delving deeper into Maschine’s functions, users can sample and re-sample from internal and external sources (relying on the user’s existing audio interface) on the fly, and automation can be recorded and edited during playback. There’s even a keyboard mode for playing tonal material, and the hardware isn’t locked to the software — it acts as a fully assignable MIDI controller for any DAW — so it can be used to control your favourite virtual drummer software application. What’s more, Maschine works either as a plug-in or as a stand-alone application, and it comes with a 5GB library of samples to suit “electronic and urban” styles, so the system can be used on its own as a live performance tool.
- Combines intuitive sequencer, sampler and over 20 high-quality effects with real-time control and flexible routing into an inspiring Groove Production Studio
- Dedicated controller with 16 high-quality pads, 41 buttons, and 11 rotary encoders for playing, recording, sequencing, automation and arrangement
- Fastest workflow with pattern-based arrangement and perfect hardware, software and host environment integration
- Features step sequencing, real-time recording, note repeat, slicing, and auto-mapping for intuitive jamming
- Over 5 GB of inspiring, studio-quality sounds with over 15,000 samples and hundreds of patterns perfectly suited for electronic, urban and "indietronic" genres
- Extensive MIDI-mapping capabilities to control other hardware and software
- Easy-to-use browser with tagging of kits, instruments, samples, and effects
- Intuitive automation recording and step automation editing
- Sampling from external and internal sources with threshold detection
- Works as a plug-in for any software sequencer supporting VST®, AU™, or RTAS®
General Interface Specifications
- Width: 320 mm / 12.6"
- Length: 295 mm / 11.6"
- Height: 60 mm / 2.4"
- 1811 Grams / 4 lbs
- 2 displays with 64x256 pixels
- 16 high-quality, illuminated pads with velocity and aftertouch
- 11 endless rotary encoders
- 41 backlit buttons
- Midi-In/Out
- USB 2.0
- Kensington® Lock
Windows® XP (SP2, 32-bit)/Vista (SP1, 32-bit, 64-bit), Pentium® or Athlon XP 2 GHz, 2 GB RAM
Mac OS® X 10.4, Intel® Core™ Duo 2 GHz, 2 GB RAM
USB 2.0 Port, DVD drive, 5 GB free disk space for full installation
Stand-alone, VST®, Audio Units™, RTAS® under Pro Tools® 7
ASIO™, Core Audio™, DirectSound, WASAPI™

MASCHINE combines the flexibility of computer-based music production with the ease of a groove box into one powerful creative tool. Utilizing onboard samples or your own audio files, MASCHINE’s symbiosis of hardware and software not only ensures a fast and fun workflow, but lets you easily turn your ideas into professional productions.

MASCHINE comes loaded with over 5 GB of production-ready sounds and patterns. Everything from fat drum kits to state-of-the-art synthesizer sounds and pristine acoustic instruments have been sampled, sliced and tagged for your convenience. MASCHINE also features studio quality effects ranging from dynamics processors to beat-mashers and even mastering tools, all tweakable in real time via the hardware controller.
MASCHINE comes loaded with a 5 GB sound library, created by a wide range of international sound designers and artists. A total of over 15,000 samples provide plenty of inspirational material for just about any modern music style. Every sample in the MASCHINE library has been professionally edited, processed and tagged for your convenience, making it a breeze to select the right sound while guaranteeing a fun and efficient workflow.

MASCHINE lets you instantly produce rhythm tracks of any musical style. The heart of the library is made up of the 300 high-quality drum kits, conveniently tagged and sorted into categories such as “Acoustic”, “Analog”, “Digital”, “Urban” and more. Additionally, every drum kit comes with its own set of professionally programmed drum patterns for many modern styles; a valuable resource of inspirational material for further tweaking.

The MASCHINE library includes more then 280 pro-quality multi-sampled instruments. This massive arsenal contains tons of basses and leads, state-of-the-art synthesizer sounds, pristine acoustic instruments and more - all primed to flesh out your tracks even further.

Over 400 pre-sliced guitar, percussion and synth loops give you a wealth of musical material just waiting to be taken apart and re-arranged. Use these loops to spice up your rhythm tracks, add extra flavor to your beats or as the starting point for your own compositions.

The MASCHINE library also provides a sample pool with 6,500 one-shot samples. Use the professionally produced scratches, vocals, effect sounds, single drum and percussion sounds to give your tracks a distinctive sonic signature.

Projects are showcase collections of samples and sequences, programmed by renowned producers and artists. The 20 included projects demonstrate the power and flexibility of MASCHINE and can be used as a springboard for your own ideas.

MASCHINE comes with an assortment of over 100 effect presets for instantly adding professional dynamics to any sound or sequence. Additionally, the versatile routing capabilities of MASCHINE allow complex effect combinations that take your sound way beyond the ordinary.

MASCHINE's pattern-oriented concept frees you from the limits of linear arrangement. Build song "scenes" by layering patterns, and re-arrange the scenes on the fly. MASCHINE offers external sampling through your computer’s audio interface as well as internal re-sampling, precise editing and slicing, auto-mapping, effects and an ultra-convenient browser – all perfectly attuned to the hardware controller.

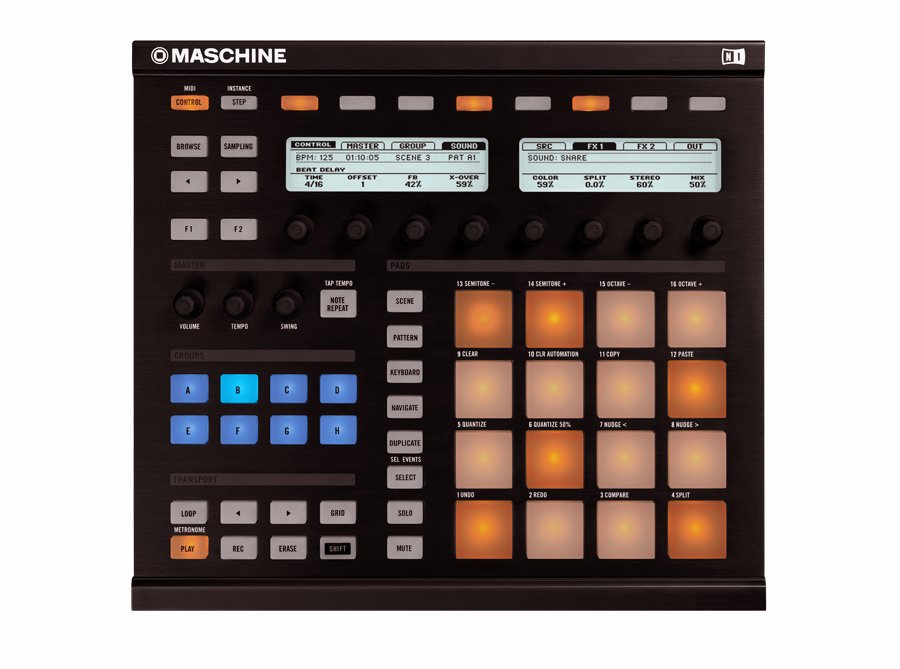

The MASCHINE controller intuitively channels your creative impulses into total interaction with the software. The controller offers a very high fun factor with mouse-free operation of the MASCHINE software at every level, from initial spontaneous jams to complete arrangement of your finished tracks.
- 16 velocity-sensitive illuminated pads (with aftertouch), two backlit displays with 256x64 pixels, 11 rotary knobs, 41 buttons
- Bus powered via USB 2.0, MIDI I/O, Kensington lock
- Robust and sturdy, perfect for studio and stage
- Can be used as a regular MIDI controller for other software or hardware (see "MIDI controller" section below)

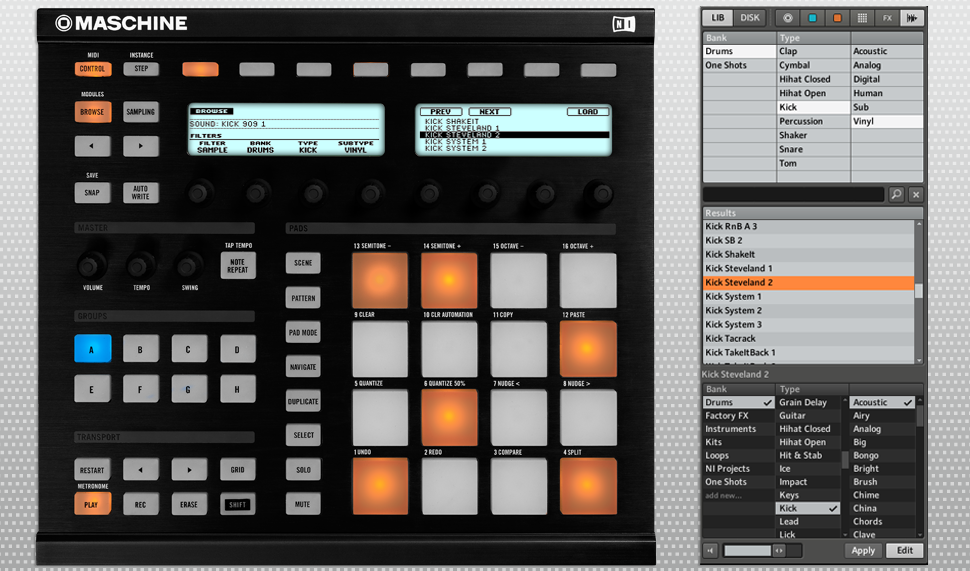

A sophisticated and easy–to-use tag-based browser gives you instant access to any sound, loop and instrument.
- Browse for projects, scenes, patterns, kits, single samples and effects
- Search by key words or attributes using the search field in the software
- Use the controller knobs to filter search results
- Add sample folders to the library easily—just drag and drop from the browser to the software
- Keep track of your samples with the convenient tagging function of the browser
- Quickbrowse – cycle through similar sounds while patterns continue playing

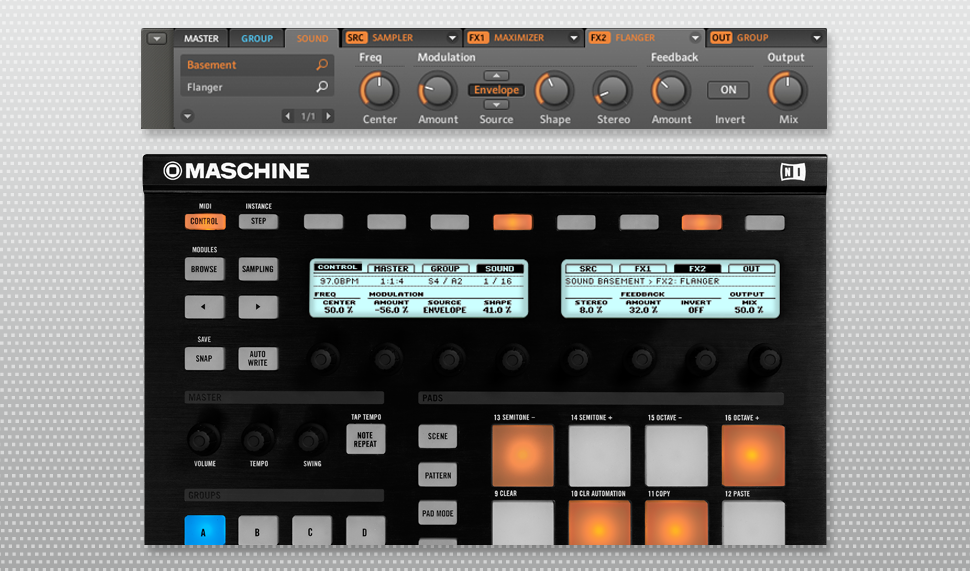

MASCHINE's built-in effects section contains a powerful arsenal of studio-quality effects to shape and supercharge your sound, including dynamic effects, modulation, distortion, delays, reverbs, filters and EQs.
- Flexible routing possibilities: Two effects units each for every sound, group and the master slot
- Create multi-effect chains by combining effects into their own groups
- Record automation of all effect settings via hardware or software on the fly
- Effects can be applied (and automated) to external input signals
- Assign effects via drag-and-drop from the browser or using the hardware controller
The MASCHINE Controller can not only be used with the MASCHINE software - it is also a powerful universal hardware controller for use with any MIDI-compatible hardware or software.
- Easily assign any button, pad and knob to a MIDI function – from software to hardware synths, samplers, sequencers and effects
- Switch control from MASCHINE to other gear instantly with a dedicated hardware button
- Pre-produced templates for many Native Instruments and third-party instruments included
- Easily create your own custom MASCHINE Controller settings using the included MIDI mapping software
- DAWs with Mackie Control Universal (MCU) support can be controlled easily with the MASCHINE Controller. Information from the sequencer/DAW is shown on the hardware displays.*
*MCU protocol available with free software update.
MASCHINE lets you easily create rhythms, bass lines, chords and melodies, and arrange them into complete tracks on the fly.
- Pattern-based sequencer with 64 patterns per group
- Eight groups can be arranged in the “scene” arranger
- Two recording modes: step sequence programming and realtime recording
- High-resolution drum grid and piano roll editors
- Scene arranger for linear and non-linear playback
- Live automation for effects, sampler and mixer parameters for dynamic sounds
- Four Note Repeat settings: Play the selected sound automatically at a given quantization
MASCHINE is based on a high-performance sampler engine, allowing audio recording of internal or external sources and precise sample playback with maximum audio quality.
- Features extensive voice, velocity and pitch settings as well as diverse envelope and modulation pages
- Record all internal audio paths or external audio through your soundcard - all without stopping your audio: sample an external audio source or rearrange/remix the loops you created in MASCHINE
- Audio recording with threshold detection or sequencer sync
- Resample in a pre-selected length (e.g. 4 bars)
- Audio editing page with loop function to quickly trim your samples
- Slice loops by transient detection or a preselected grid
- Auto-map the slices to the controller pads and re-arrange on the fly without stopping audio
- Convenient mapping editor with velocity and key layers
- Eight individual stereo outputs (16 mono outs)
In contrast to conventional groove boxes, MASCHINE provides seamless integration as a plug-in to your host sequencer. Produce the whole song in MASCHINE or move it to another sequencer for further processing and arranging.
- MASCHINE offers the same incredible feature set both as a stand-alone application and as a plug-in within any DAW or sequencer that supports VST, AU or RTAS. As a plug-in, MASCHINE retains all of its capabilities including total recall and routing up to eight stereo outs to your host's mixer.
- Export audio files: Bounce individual files from all patterns, groups, scenes or the master channel
- Import audio files: Drag and drop sounds from your hard disc to the MASCHINE browser
- Instant navigation: Open several instances of MASCHINE in your host sequencer and easily switch between them using just one controller

The MASCHINE hardware is both instrument and controller in one. Sixteen illuminated, velocity-sensitive pads form an interface to intuitively make beats, tweak sounds, create patterns and sequence whole songs with the powerful MASCHINE software. Two large, high-resolution displays with eight corresponding rotary encoders, buttons, and transport controls integrate perfectly with the MASCHINE software.

MASCHINE unifies and vastly improves on familiar groove production workflows. Using the MASCHINE hardware controller you can jam out ideas in a pattern-oriented environment, and use them as the building blocks to create your track within MASCHINE. New samples, loops, effects or arrangements can be added, edited and tweaked in the same intuitive way, utilizing the ultra-convenient hardware interface.
